Case Assembly – Stator Shaft Support Side

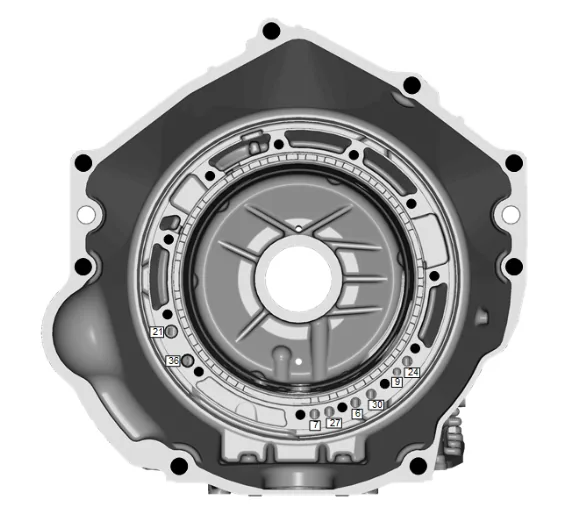

Case Assembly – Stator Shaft Support Side — figure 1

(6) TCC Release (7) TCC Apply (9) Lube (21) 1-2-3-4-5-6-Reverse Clutch (24) 1-2-8-9-10-Reverse Clutch (27) 2-3-4-5-7-9-10 Clutch (30) 1-2-3-4-6-7-8-10-Reverse Clutch (36) 4-5-6-7-8-9-10-Reverse Clutch
