Folding Rear Seat Back Actuator Replacement (60 Percent)

Folding Rear Seat Back Actuator Replacement (60 Percent) Removal Procedure

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 1

1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

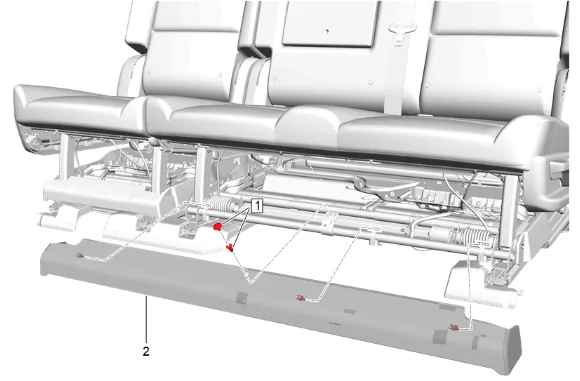

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 2

2. Rear Seat Riser Finish Cover Retainer (1) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Seat Riser Finish Cover (2) » Remove

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clip.
6. Rear Seat Riser Finish Cover (1) » Remove [2x]

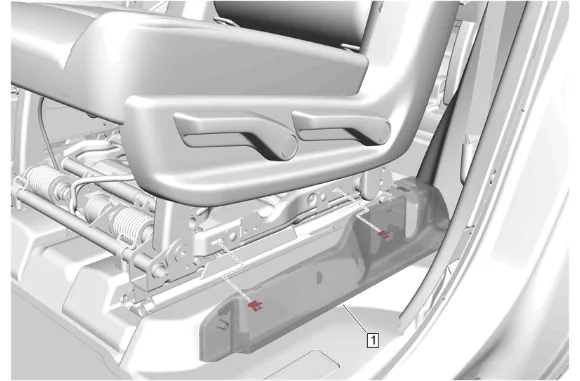

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Using a suitable plastic trim tool, release the retaining tabs.
9. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

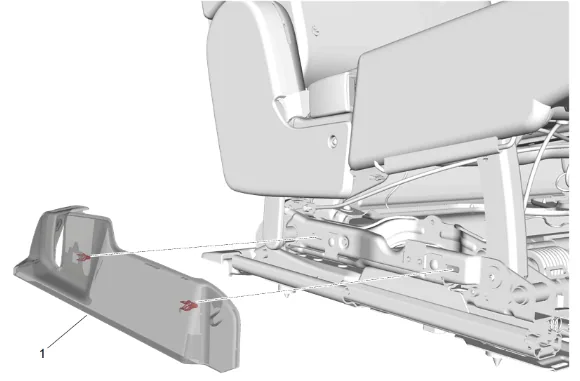

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 5

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Using a suitable plastic trim tool, release the retaining tabs.
12. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

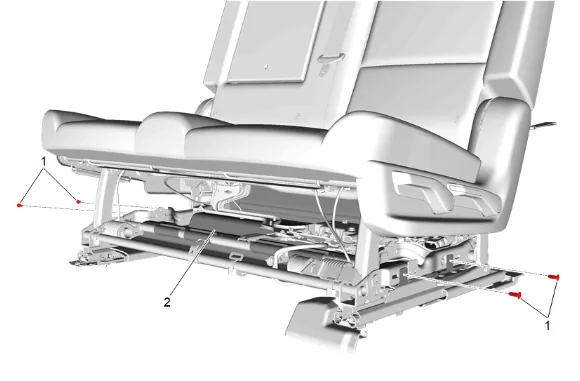

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 6

13. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
14. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

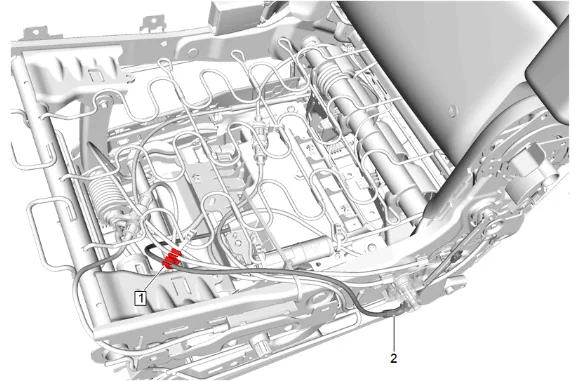

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 7

Note

Note the location and routing of the seat cable to ensure proper installation. Quantity of retainers may vary based on option content.

15. Release the folding rear seat back actuator cable (2) from the cable retainer (1).
16. Disconnect the rear seat back actuator cable end from the rear seat frame.

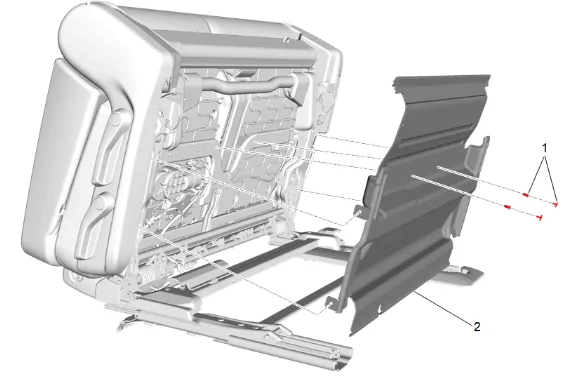

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 8

17. Place the rear seat in the fold and tumble position.
18. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
19. Rear Seat Cushion Trim Panel (2) » Remove

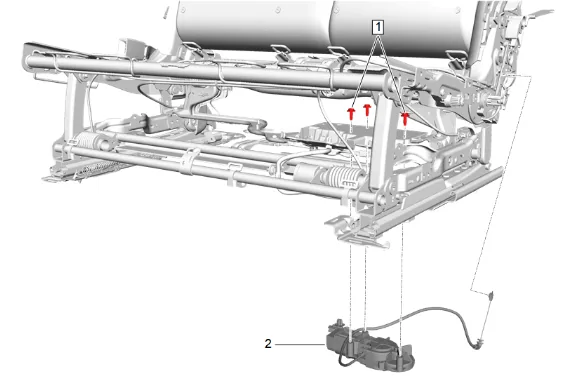

Folding Rear Seat Back Actuator Replacement (60 Percent) — figure 9

20. Disconnect the electrical connectors and release the wiring harness retainers as necessary.

21. Return the rear seat to the original position.

22. Rear Seat Riser Bolt (1) » Remove [3x]

23. Folding Rear Seat Back Actuator (2) » Remove Installation Procedure

24. Folding Rear Seat Back Actuator (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Riser Bolt (1) » Install and tighten [3x] — Fastener Specifications

3. Place the rear seat in the fold and tumble position.

4. Connect the electrical connectors and install the wiring harness retainers as necessary.

5. Rear Seat Cushion Trim Panel (2) » Install

6. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

7. Return the rear seat to the original position.

8. Position the rear seat back actuator cable (2) to the original location.

9. Connect the rear seat back actuator cable end to the rear seat frame.

10. Secure the folding rear seat back actuator cable (2) into the cable retainer (1).

11. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

12. Secure the J-channel retainers on the rear seat cushion trim panel (2).

13. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

14. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

15. Rear Seat Riser Finish Cover (1) » Install [2x]

16. Rear Seat Riser Finish Cover (2) » Install

17. Rear Seat Riser Finish Cover Retainer (1) » Install

18. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
