Instrument Panel Outer Air Outlet Replacement - Right Side

Instrument Panel Outer Air Outlet Replacement - Right Side Removal Procedure

Instrument Panel Outer Air Outlet Replacement - Right Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Outer Air Outlet Replacement - Right Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Replacement - Right Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Outer Air Outlet Replacement - Right Side — figure 4

7. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
8. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

9. Instrument Panel Trim Pad (2) » Remove
10. Disconnect the electrical connector.

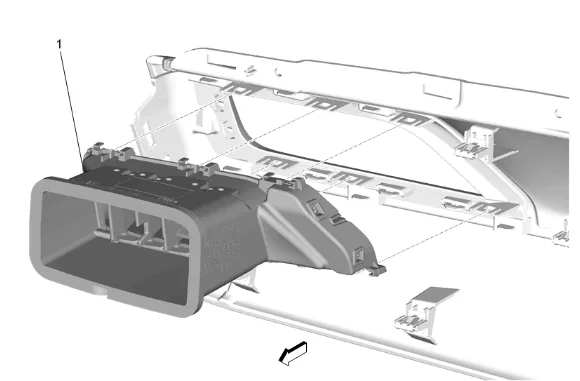

Instrument Panel Outer Air Outlet Replacement - Right Side — figure 5

11. Release the retaining tabs.

12. Instrument Panel Outer Air Outlet (1) » Remove Installation Procedure

13. Instrument Panel Outer Air Outlet (1) » Install

14. Connect the electrical connector.

15. Instrument Panel Trim Pad (2) » Install

Caution

Refer to Fastener Caution.

4. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

5. Instrument Panel Center Trim Plate Applique (1) » Install

6. Instrument Panel Trim Plate Applique (1) » Install

7. Instrument Panel Fuse Block Access Hole Cover (1) » Install
