Park Release Lever and Park Pawl Actuator Removal

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 5112485 Single Use Fasteners and Components Manual Shift Shaft Pin Park Pawl Actuator Guide Pin Transmission Fluid Cooler Pipe Fitting Seal Special Tools J-45201-3 Cooler Line Seal Remover Equivalent regional tools: Special Tools

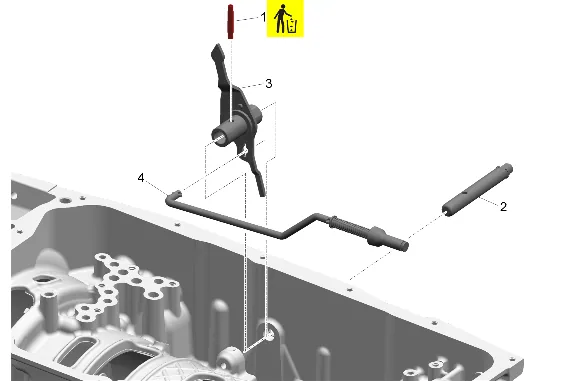

Park Release Lever and Park Pawl Actuator Removal — figure 1

1. Manual Shift Shaft Pin (1) » Remove and DISCARD
2. Manual Shift Shaft (2) » Remove
3. Park Release Lever (3) » Remove
4. Park Pawl Actuator Assembly (4) » Remove

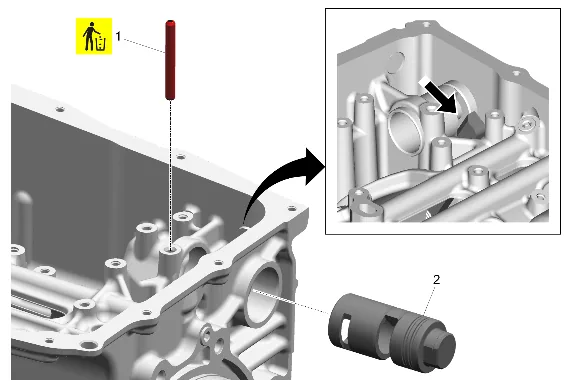

Park Release Lever and Park Pawl Actuator Removal — figure 2

1. Park Pawl Actuator Guide Pin (1) » Remove and DISCARD
2. Push the park pawl away from the park pawl actuator guide to remove the Park Pawl Actuator Guide Assembly from the case.
3. Park Pawl Actuator Guide Assembly (2) » Remove

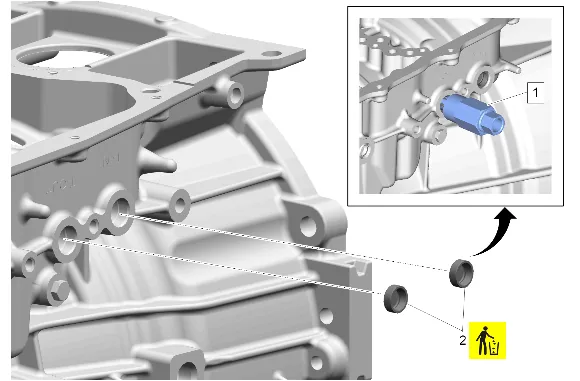

Park Release Lever and Park Pawl Actuator Removal — figure 3

1. Attach the J-45201-3 Cooler Line Seal Remover (1) to the Transmission Fluid Cooler Pipe Fitting Seal (2).
2. Transmission Fluid Cooler Pipe Fitting Seal (2) » Remove and DISCARD [2x]
