Front Floor Console Armrest Latch Replacement (D07)

Removal Procedure

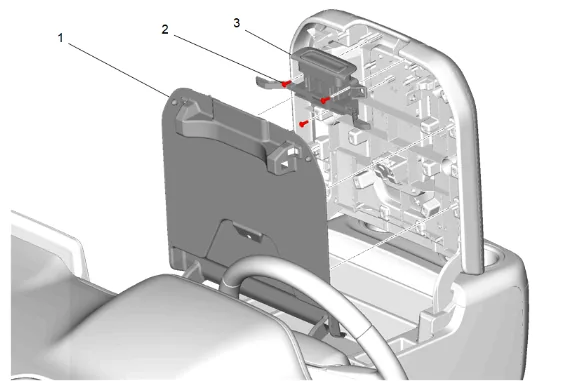

Front Floor Console Armrest Latch Replacement (D07) — figure 1

1. While holding the latch release button in, use a flat-bladed plastic trim tool to release the retaining clips.

2. Front Floor Console Armrest Hinge Cover (1) » Remove

3. Front Floor Console Armrest Bolt (2) » Remove [3x]

4. Depress the latch rod.

5. Front Floor Console Armrest Latch (3) » Remove Installation Procedure

6. Depress the latch rod.

7. Front Floor Console Armrest Latch (3) » Install

Caution

Refer to Fastener Caution.

3. Front Floor Console Armrest Bolt (2) » Install and tighten [3x] — Fastener Specifications

Note

Hold the latch release button in.

4. Front Floor Console Armrest Hinge Cover (1) » Install
