Fuel Filter Replacement (Short Wheelbase)

Single Use Fasteners and Components Fuel Filter Seal [2x]

Warning

Refer to Diesel/Gasoline Vapors Warning.

Warning

Refer to Safety Glasses Warning. Removal Procedure

1. Drain the fuel from the fuel filter. Water-in-Fuel Draining

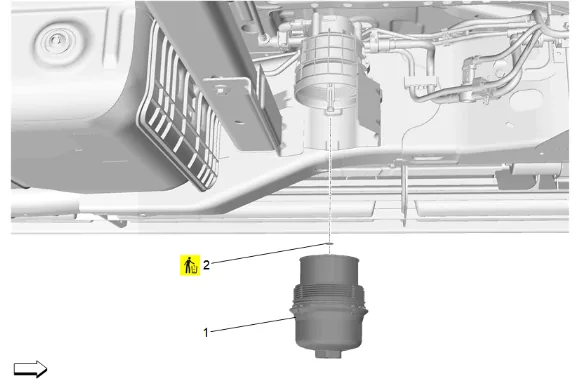

Fuel Filter Replacement (Short Wheelbase) — figure 1

Note

Use care not to separate the filter from the fuel/water separator reservoir.

2. Fuel/Water Separator Reservoir and Filter Assembly (1) » Remove
3. Fuel Filter Seal (2) » Remove and DISCARD
4. Place the fuel/water separator reservoir and filter assembly (1) with the filter downwards in a clean/dry drain pan.

Fuel Filter Replacement (Short Wheelbase) — figure 2

Note

Whenever the fuel/water separator reservoir is removed, it must be cleaned of all debris prior to installation.

5. Fuel Filter (1) @ Fuel/Water Separator Reservoir (3) » Remove
6. Fuel Filter Seal (2) » Remove and DISCARD Installation Procedure

Fuel Filter Replacement (Short Wheelbase) — figure 3

Note

Whenever the fuel/water separator reservoir is removed, it must be cleaned of all debris prior to installation.

1. Fuel Filter Seal (2) » Install NEW

2. Fuel Filter (1) @ Fuel/Water Separator Reservoir (3) » Install

3. Fuel Filter Seal (2) » Install NEW

Caution

Refer to Component Fastener Tightening Caution.

4. Fuel/Water Separator Reservoir and Filter Assembly (1) » Install and tighten — Fastener Specifications
5. Lower the vehicle.
6. Prime the fuel system. Fuel System Priming
7. Perform the fuel filter life reset procedure. Fuel Filter Life Reset
