3rd Row Seat Cushion Pad Support Replacement - Outer

Removal Procedure

3rd Row Seat Cushion Pad Support Replacement - Outer — figure 1

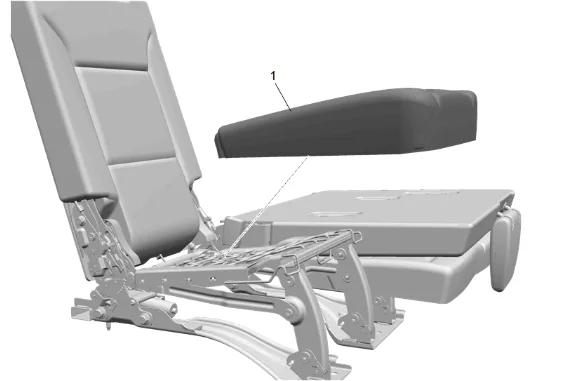

1. 3rd Row Seat Cushion Cover and Pad (1) » Remove — 3rd Row Seat Cushion Cover and Pad Removal and Installation

3rd Row Seat Cushion Pad Support Replacement - Outer — figure 2

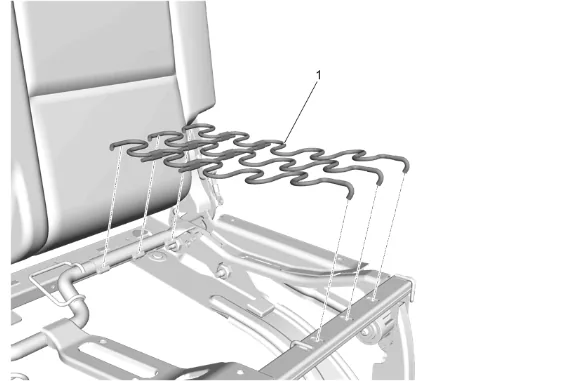

2. Pull outward and upward to release the 3rd row seat cushion pad support (1) from the seat frame.

3. 3rd Row Seat Cushion Pad Support - Outer (1) » Remove Installation Procedure

4. 3rd Row Seat Cushion Pad Support - Outer (1) » Install

5. 3rd Row Seat Cushion Cover and Pad (1) » Install — 3rd Row Seat Cushion Cover and Pad Removal and Installation
