Fastener Specifications (5)

Fastener Specifications Table 1: Front Wiper System Table 2: Rear Wiper System Table 3: Washer System

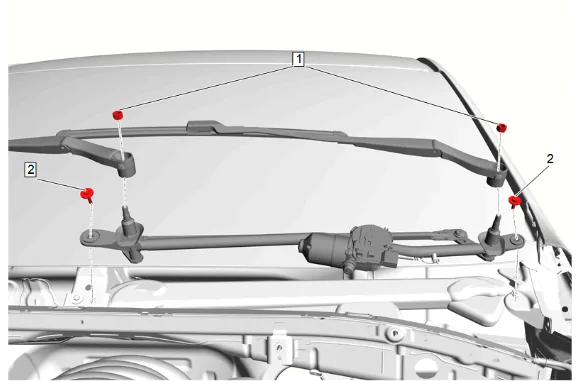

Fastener Specifications (5) — figure 1

Front Wiper System

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Windshield Wiper Arm Nut [2x]	—	—	30 Y(22 lb ft)	Windshield Wiper Arm Replacement
2	Windshield Wiper System Module Bolt [2x]	—	—	9 Y (80 lb in)	Windshield Wiper System Module Replacement

Fastener Specifications (5) — figure 2

Rear Wiper System

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Window Wiper Arm Nut	—	—	8.5 Y (75 lb in)	Rear Window Wiper Arm Replacement
2	Rear Window Wiper Motor Bolt [2x]	—	—	9 Y (80 lb in)	Rear Window Wiper Motor Replacement
3	Rear Window Wiper Arm Nut	—	—	4.9 Y (43 lb in)	Rear Window Wiper Motor Replacement

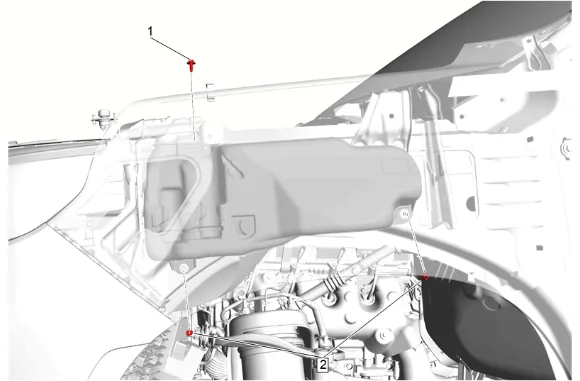

Fastener Specifications (5) — figure 3

Washer System

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Windshield Washer Solvent Container Bolt	—	—	9 Y (80 lb in)	Windshield Washer Solvent Container Replacement
	2	Windshield Washer Solvent Container Nut [2x]	—	—	9 Y (80 lb in)	Windshield Washer Solvent Container Replacement
