Instrument Panel Tie Bar Replacement

Special Tools Wipers and Washers J –39822 Wiper Arm Puller Equivalent regional tools: Special Tools Removal Procedure

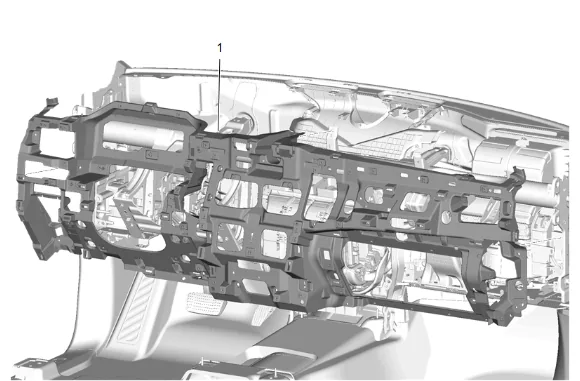

Instrument Panel Tie Bar Replacement — figure 1

1. Instrument Panel Carrier (1) » Remove — Instrument Panel Carrier Replacement

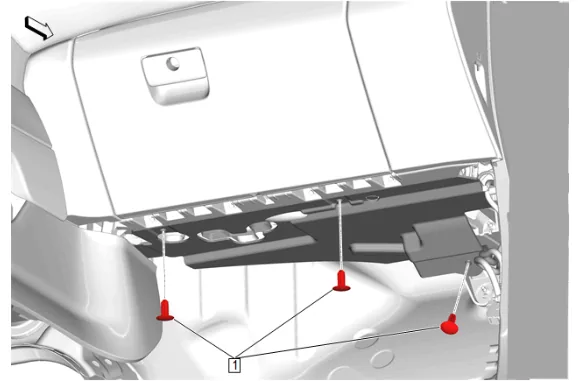

Instrument Panel Tie Bar Replacement — figure 2

2. Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

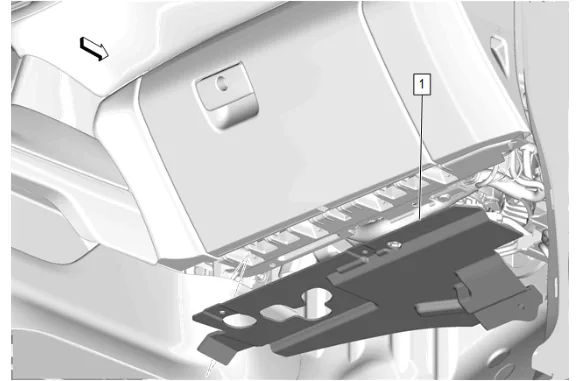

Instrument Panel Tie Bar Replacement — figure 3

3. Instrument Panel Lower Trim Panel Insulator (1) » Remove

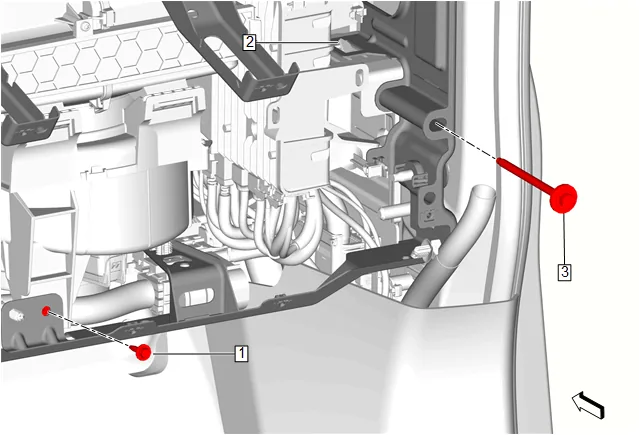

Instrument Panel Tie Bar Replacement — figure 4

Note

There are two tabs on the body hinge pillar tie bar bracket that may interfere with the removal of the tie bar.

4. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove
5. Use a suitable tool to push the tab (2) down.
6. Instrument Panel Tie Bar Bolt (3) » Remove

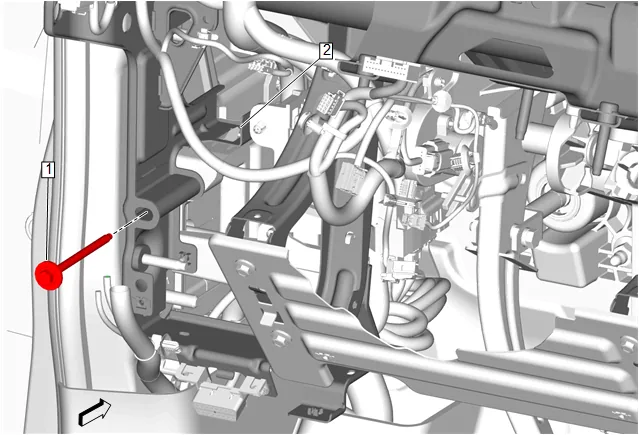

Instrument Panel Tie Bar Replacement — figure 5

7. Instrument Panel Tie Bar Bolt (1) » Remove
8. Use a suitable tool to push the tab (2) down.

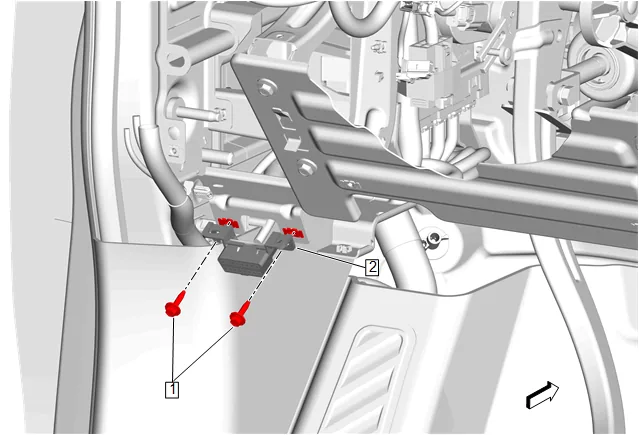

Instrument Panel Tie Bar Replacement — figure 6

9. Data Link Connector Bolt (1) » Remove [2x]
10. Data Link Connector (2) » Reposition away

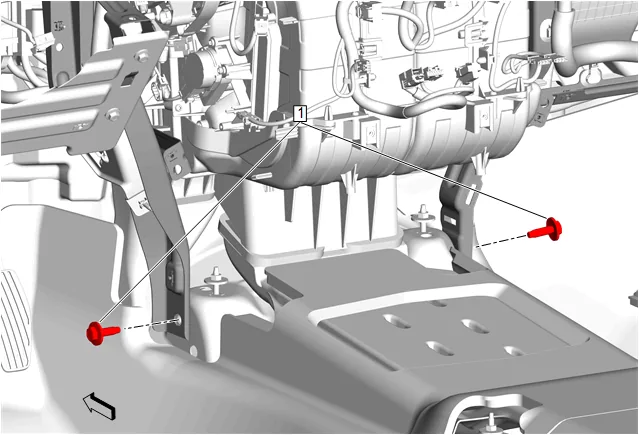

Instrument Panel Tie Bar Replacement — figure 7

11. Instrument Panel Tie Bar Bolt (1) @ Floor Panel Tunnel Panel » Remove [2x]

Instrument Panel Tie Bar Replacement — figure 8

Note

Some components not shown for graphic clarity.

12. Body Hinge Pillar Outer Panel Hole Plug (1) » Remove [2x]

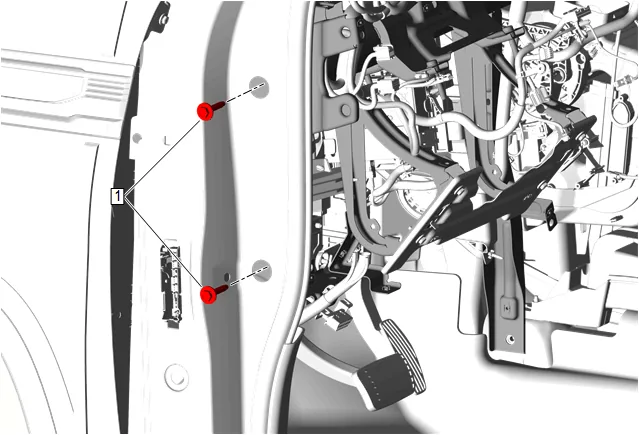

Instrument Panel Tie Bar Replacement — figure 9

Note

Some components not shown for graphic clarity.

13. Instrument Panel Tie Bar Bolt (1) @ Front Side Door » Remove [2x]

Instrument Panel Tie Bar Replacement — figure 10

Note

Some components not shown for graphic clarity.

14. Body Hinge Pillar Outer Panel Hole Plug (1) » Remove [2x]

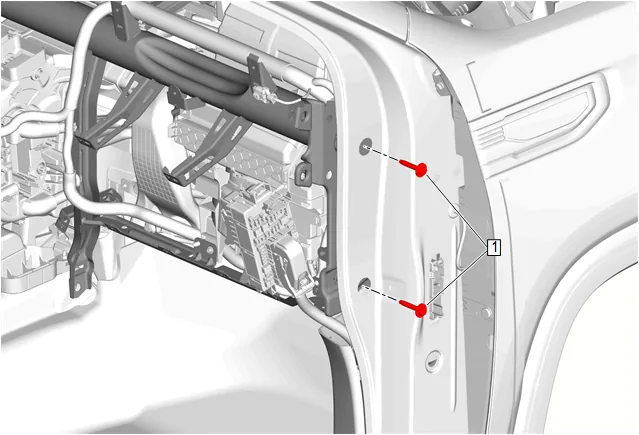

Instrument Panel Tie Bar Replacement — figure 11

Note

Some components not shown for graphic clarity.

15. Instrument Panel Tie Bar Bolt (1) @ Front Side Door » Remove [2x]

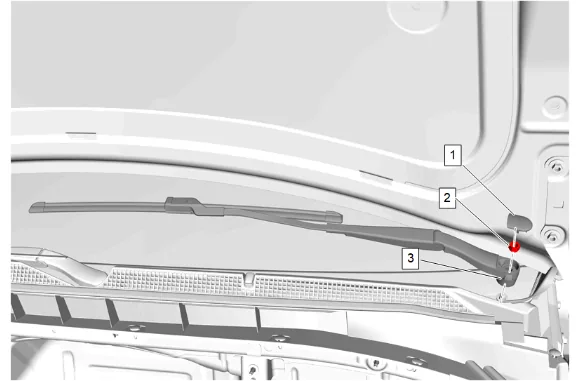

Instrument Panel Tie Bar Replacement — figure 12

16. Using the appropriate trim tool, remove both windshield wiper arm finish caps (1) from the windshield wiper arms (3).
17. Windshield Wiper Arm Nut (2) » Remove [2x]
18. Use the J–39822 Wiper Arm Puller to remove the wiper arm (3) from the wiper motor pivot shaft.

Instrument Panel Tie Bar Replacement — figure 13

Note

Quantity of retainers may vary based on option content.

19. Apply two layers of masking tape to the painted surface around the top edge of the air inlet grille panel extensions (1) to prevent paint damage.
20. Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
21. Air Inlet Grille Panel Extension (1) » Remove [2x]

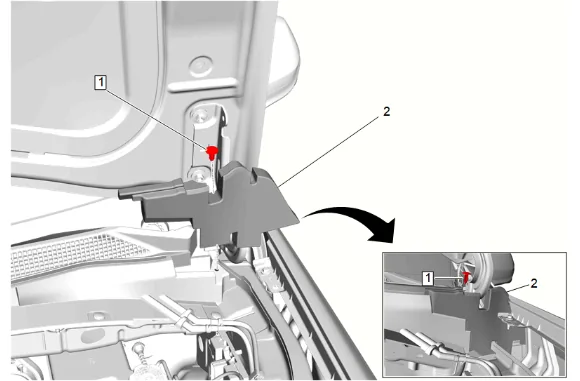

Instrument Panel Tie Bar Replacement — figure 14

22. Hood Rear Outer Air Inlet Seal Retainer (1) » Remove [2x]
23. Hood Rear Outer Air Inlet Seal (2) » Remove [2x]

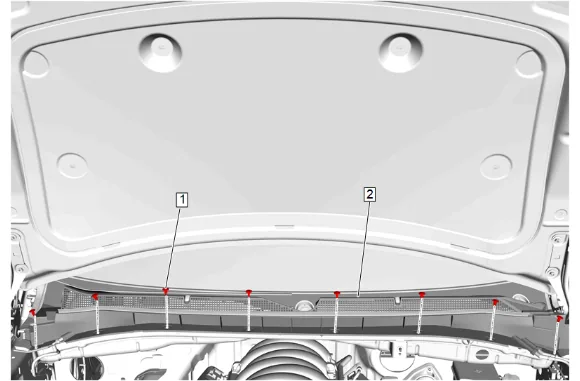

Instrument Panel Tie Bar Replacement — figure 15

24. Air Inlet Grille Panel Retainer (1) » Remove [8x]
25. Windshield Washer Nozzle Hose » Disconnect [3x]
26. Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.

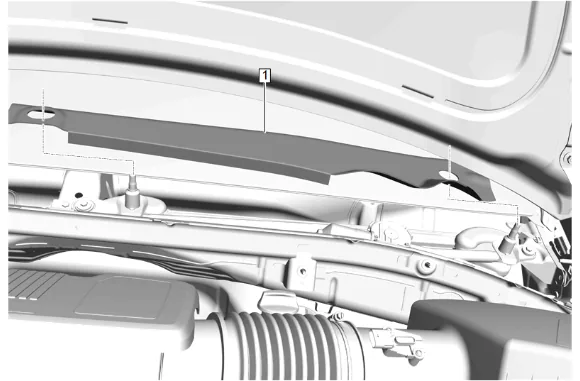

Instrument Panel Tie Bar Replacement — figure 16

27. Windshield Wiper System Module Shield (1) » Remove

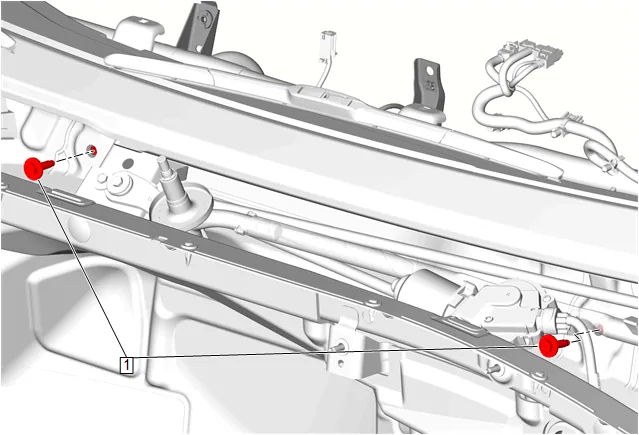

Instrument Panel Tie Bar Replacement — figure 17

28. Instrument Panel Tie Bar Bolt (1) @ Plenum Lower Panel » Remove [2x]

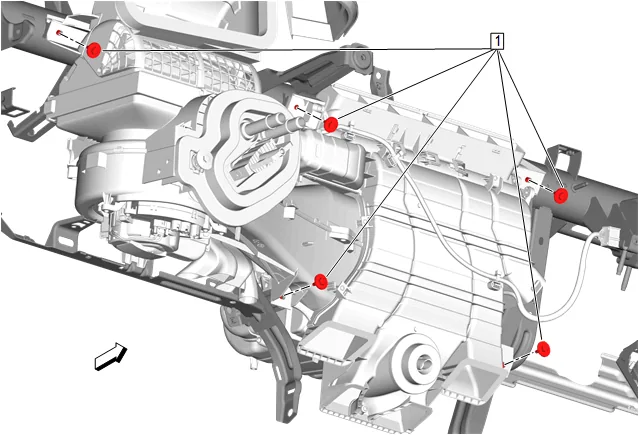

Instrument Panel Tie Bar Replacement — figure 18

Note

Some components not shown for graphic clarity.

29. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) @ Heater and Air Conditioning Evaporator and Blower Module » Remove [5x]

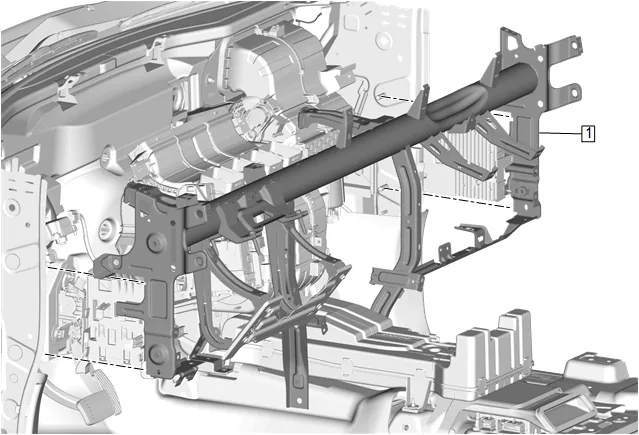

Instrument Panel Tie Bar Replacement — figure 19

Note

Note the location and routing of the wiring harness to ensure proper reinstallation.

30. Disconnect and reposition harness as necessary.

31. Instrument Panel Tie Bar (1) » Remove

32. Support the HVAC module in order to prevent damage.

33. With the aid of an assistant, remove the instrument panel tie bar assembly from the vehicle. (1) Installation Procedure

34. With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle.

35. Instrument Panel Tie Bar (1) » Install

36. Attach the wiring harness and connect the electrical connectors as necessary.

Caution

Refer to Fastener Caution.

Note

Some components not shown for graphic clarity.

4. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) @ Heater and Air Conditioning Evaporator and Blower Module » Install and tighten [5x] — Fastener Specifications

5. Instrument Panel Tie Bar Bolt (1) @ Plenum Lower Panel » Install and tighten [2x] — Fastener Specifications

6. Windshield Wiper System Module Shield (1) » Install

7. Air Inlet Grille Panel (2) » Install

8. Windshield Washer Nozzle Hose » Install [3x]

9. Air Inlet Grille Panel Retainer (1) » Install [8x]

10. Hood Rear Outer Air Inlet Seal (2) » Install [2x]

11. Hood Rear Outer Air Inlet Seal Retainer (1) » Install [2x]

12. Air Inlet Grille Panel Extension (1) » Install [2x]

13. Remove the double layer of masking tape around the perimeter of the painted surfaces.

14. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.

15. Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

16. Position the windshield wiper arms (3) on the windshield wiper transmission pivot shaft.

17. Windshield Wiper Arm Nut (2) » Install and tighten [2x] — Fastener Specifications

18. Windshield Wiper Arm Finish Cap (1) » Install [2x]

Instrument Panel Tie Bar Replacement — figure 20

19. If required, realign the windshield wipers to their respective alignment circles (1)  on the windshield.
20. Lubricate the windshield with clean washer fluid.
21. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
22. Ensure the windshield wipers are in the full park position.

Note

Some components not shown for graphic clarity.

23. Instrument Panel Tie Bar Bolt (1) @ Front Side Door » Install and tighten [2x] — Fastener Specifications

Note

Some components not shown for graphic clarity.

24. Body Hinge Pillar Outer Panel Hole Plug (1) » Install [2x]

Note

Some components not shown for graphic clarity.

25. Instrument Panel Tie Bar Bolt (1) @ Front Side Door » Install and tighten [2x] — Fastener Specifications

Note

Some components not shown for graphic clarity.

26. Body Hinge Pillar Outer Panel Hole Plug (1) » Install [2x]

27. Instrument Panel Tie Bar Bolt (1) @ Floor Panel Tunnel Panel (1) » Install and tighten [2x] — Fastener Specifications

28. Data Link Connector (2) » Install

29. Data Link Connector Bolt (1) » Install and tighten [2x] — Fastener Specifications

30. Instrument Panel Tie Bar Bolt (1) » Install and tighten — Fastener Specifications

31. Use a suitable tool to push the tab (2) in the up position.

32. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten — Fastener Specifications

33. Use a suitable tool to push the tab (2) in the up position.

34. Instrument Panel Tie Bar Bolt (3) » Install and tighten — Fastener Specifications

35. Instrument Panel Lower Trim Panel Insulator (1) » Install

36. Instrument Panel Lower Insulator Retainer (1) » Install [3x]

37. Instrument Panel Carrier (1) » Install — Instrument Panel Carrier Replacement
