Rear Bumper Fascia Step Pad Replacement

Removal Procedure

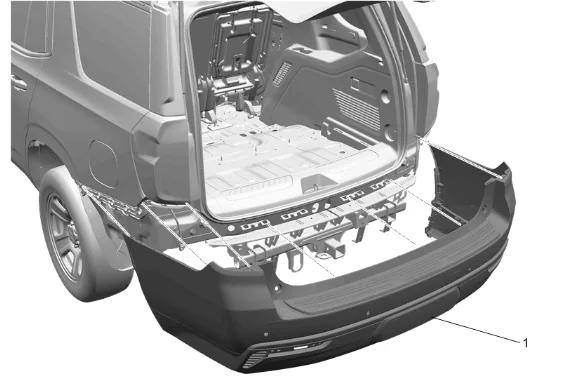

Rear Bumper Fascia Step Pad Replacement — figure 1

1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation
2. Reposition the wiring harness.

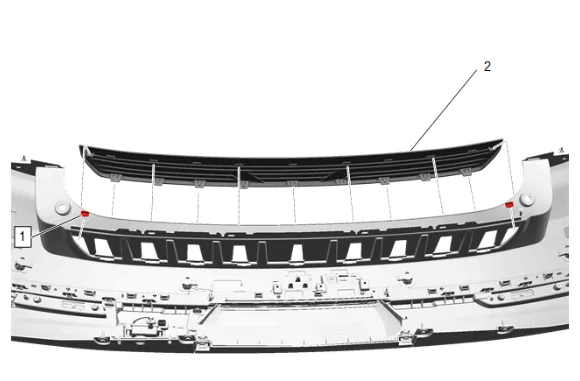

Rear Bumper Fascia Step Pad Replacement — figure 2

3. Rear Bumper Fascia Step Pad Retainer (1) » Remove [2x]

4. Using the appropriate tool, release the tabs on the rear bumper fascia step pad (2).

5. Rear Bumper Fascia Step Pad (2) » Remove Installation Procedure

6. Rear Bumper Fascia Step Pad (2) » Install

7. Rear Bumper Fascia Step Pad Retainer (1) » Install [2x]

8. Install the wiring harness.

9. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation
