Front Side Door Window Channel Retainer Replacement

Removal Procedure

Warning

When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

1. Disable the SIR system. SIR Disabling and Enabling
2. Front Side Door Trim » Remove — Front Side Door Trim Removal and Installation

Front Side Door Window Channel Retainer Replacement — figure 1

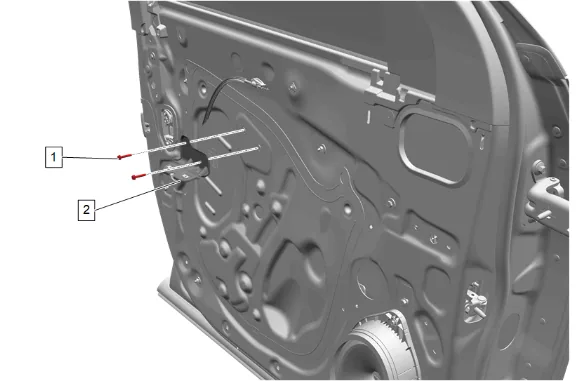

3. Front Side Door Armrest Bracket Bolt (1) » Remove [2x]
4. Front Side Door Pull Handle Bracket (2) » Remove

Front Side Door Window Channel Retainer Replacement — figure 2

5. Route front side door inside handle cable through hole in deflector (1).
6. Front Side Door Water Deflector (1) » Remove

Front Side Door Window Channel Retainer Replacement — figure 3

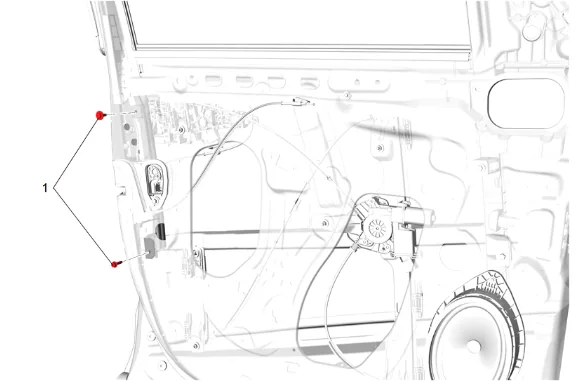

7. Front Side Door Window Channel Retainer Bolt (1) » Remove [2x]

Front Side Door Window Channel Retainer Replacement — figure 4

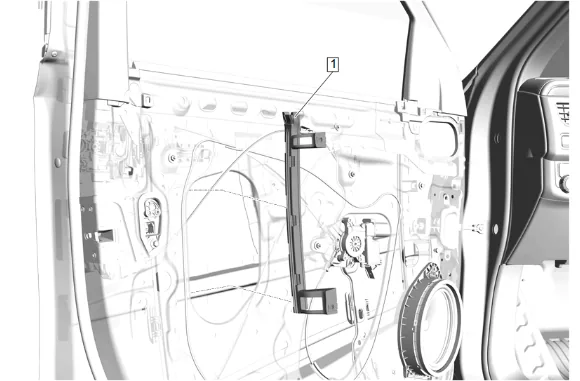

8. Front Side Door Window Channel Retainer (1) » Remove Installation Procedure

9. Front Side Door Window Channel Retainer (1) » Install

Caution

Refer to Fastener Caution.

2. Front Side Door Window Channel Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

Note

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

3. Route front side door inside handle cable through hole in deflector (1).

4. Front Side Door Water Deflector (1) » Install

5. Front Side Door Pull Handle Bracket (2) » Install

6. Front Side Door Armrest Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Front Side Door Trim » Install — Front Side Door Trim Removal and Installation

8. Enable the SIR System. SIR Disabling and Enabling

9. Ensure the window system operates properly.
