3rd Row Seat Belt Retractor Replacement - Right Side

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

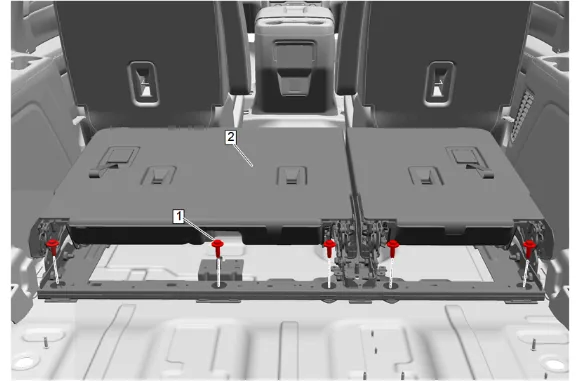

3rd Row Seat Belt Retractor Replacement - Right Side — figure 1

1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
2. Disable the SIR system. SIR Disabling and Enabling

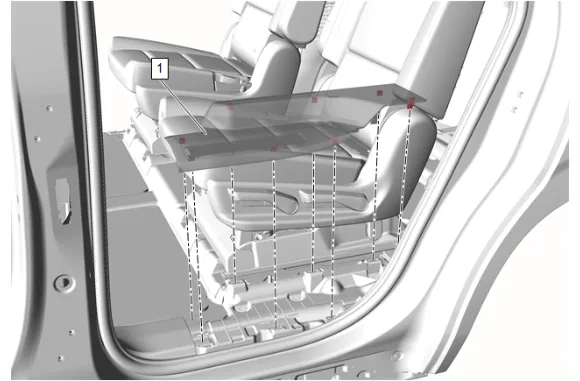

3rd Row Seat Belt Retractor Replacement - Right Side — figure 2

Note

Left side shown, right side similar.

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Side Door Sill Garnish Molding (1) » Remove

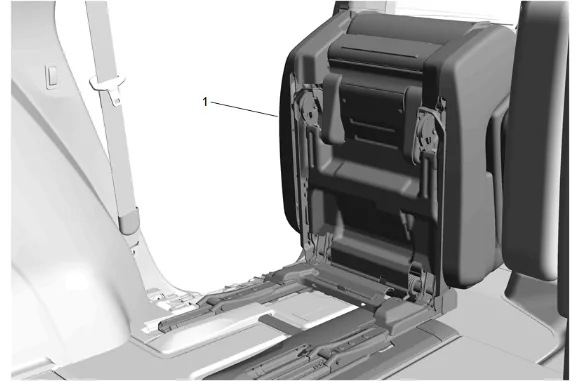

3rd Row Seat Belt Retractor Replacement - Right Side — figure 3

Note

Left side shown, right side similar.

5. Place the rear seat (1) in the fold and tumble position.

3rd Row Seat Belt Retractor Replacement - Right Side — figure 4

6. Liftgate Weatherstrip (1) » Reposition

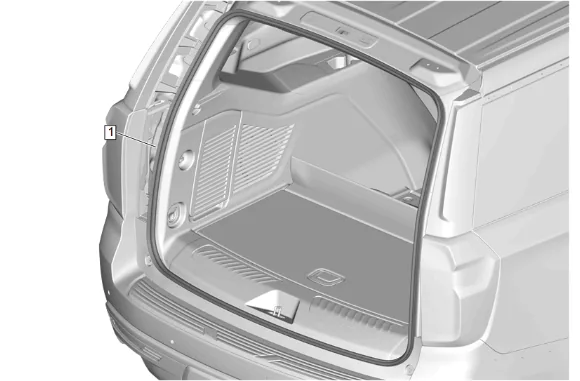

3rd Row Seat Belt Retractor Replacement - Right Side — figure 5

7. Liftgate Lock Striker Cover (1) » Remove

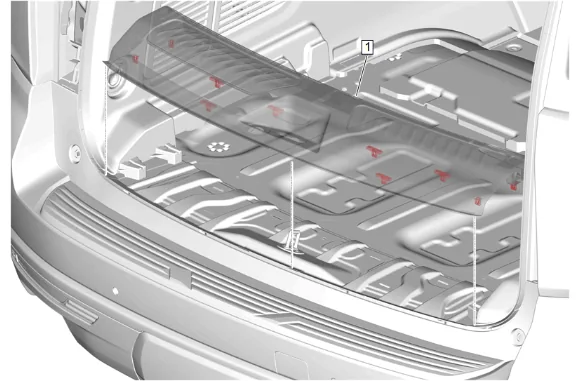

3rd Row Seat Belt Retractor Replacement - Right Side — figure 6

8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Rear End Trim Finish Panel (1) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 7

Note

Left side shown, right side similar.

10. Rear Seat Belt Retractor Sleeve (1) » Reposition
11. Rear Seat Belt Anchor Plate Bolt (2) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 8

Note

Left side shown, right side similar.

12. Rear Seat Belt Opening Bezel (1) » Disengage

3rd Row Seat Belt Retractor Replacement - Right Side — figure 9

Note

Left side shown, right side similar.

13. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
14. Quarter Window Trim Finish Panel Bolt (2) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 10

Note

Left side shown, right side similar.

15. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

16. Body Lock Pillar Upper Trim Panel (1) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 11

Note

Left side shown, right side similar.

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

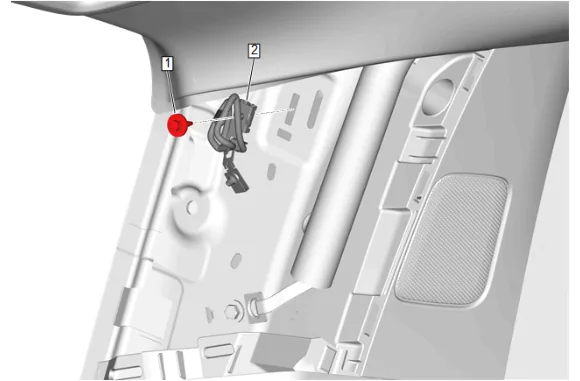

3rd Row Seat Belt Retractor Replacement - Right Side — figure 12

Note

Left side shown, right side similar.

19. Body Side Rear Window Garnish Molding Bolt (1) » Remove
20. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 13

Note

Left side shown, right side similar.

21. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 14

Note

Left side shown, right side similar.

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Body Rear Corner Upper Garnish Molding (1) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 15

24. Electrical Connector (1) » Disconnect
25. Wiring Harness Retainer (2) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 16

Note

Left side shown, right side similar.

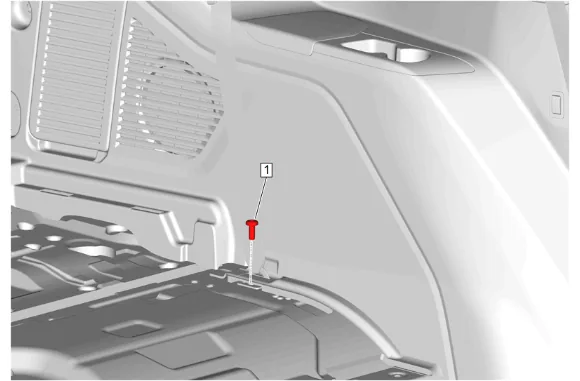

26. 3rd Row Seat Belt Anchor Bolt (1) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 17

Note

Left side shown, right side similar.

27. Using a flat-bladed plastic trim tool, release the retaining clips.
28. Rear Seat Belt Opening Bezel (1) » Remove

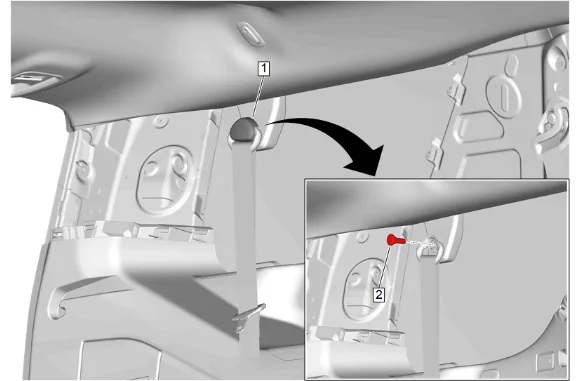

3rd Row Seat Belt Retractor Replacement - Right Side — figure 18

Note

Left side shown, right side similar.

29. 3rd Row Seat Belt Retractor Anchor Cover (1) » Open
30. 3rd Row Seat Belt Guide Bolt (2) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 19

Note

Left side shown, right side similar.

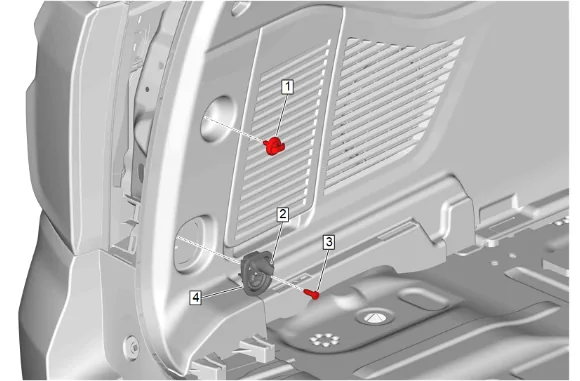

31. Convenience Net Retainer (1) » Remove
32. Cargo Tie Down Loop Bolt Cap (2) » Open
33. Cargo Tie Down Loop Bolt (3) » Remove
34. Cargo Tie Down Loop (4) » Remove

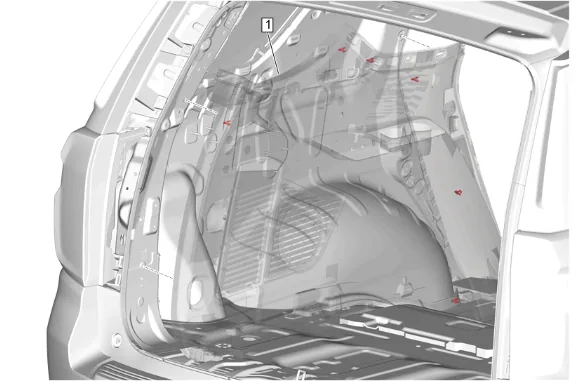

3rd Row Seat Belt Retractor Replacement - Right Side — figure 20

Note

Left side shown, right side similar.

35. Using a flat-bladed plastic trim tool, release the retaining clips.
36. If equipped, disconnect the electrical connectors and wiring harness retainers.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

37. Quarter Lower Rear Trim Panel (1) » Remove

3rd Row Seat Belt Retractor Replacement - Right Side — figure 21

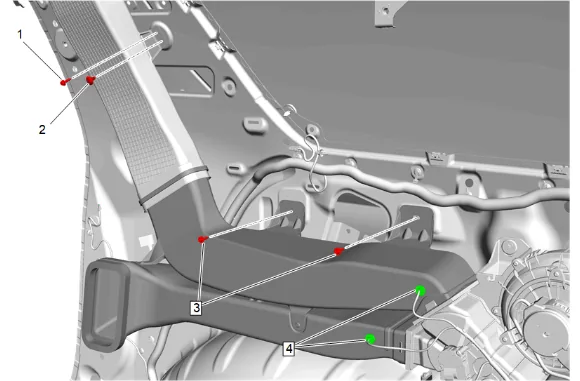

38. {with Long Wheel Base} Auxiliary Air Conditioning Air Outlet Upper Duct Bolt (1) » Remove 38.1. Auxiliary Air Conditioning Air Outlet Duct Retainer (2) » Remove 38.2. Auxiliary Air Conditioning Air Outlet Duct Bolt (3) » Remove [2x] 38.3. Remove the 2 air duct temperature sensors (4), and note the position of each sensor.

3rd Row Seat Belt Retractor Replacement - Right Side — figure 22

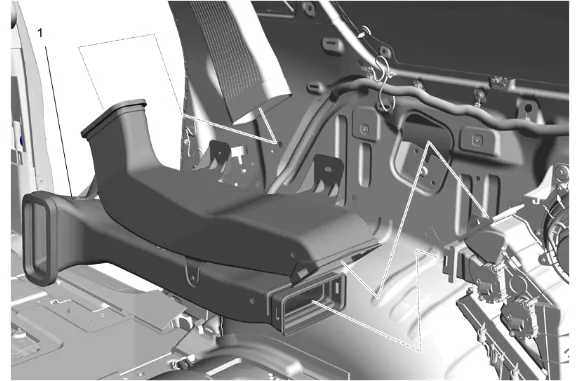

38.4. Auxiliary Air Conditioning Air Lower Duct (1) » Remove

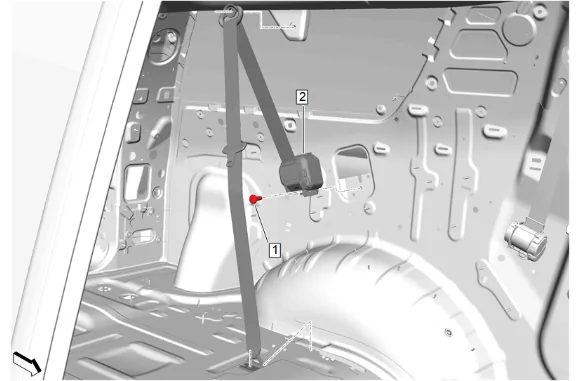

3rd Row Seat Belt Retractor Replacement - Right Side — figure 23

Note

Left side shown, right side similar.

39. 3rd Row Seat Belt Retractor Bolt (1) » Remove
40. 3rd Row Seat Belt Retractor (2) » Remove Installation Procedure

Note

Left side shown, right side similar.

1. 3rd Row Seat Belt Retractor (2) » Install

Caution

Refer to Fastener Caution.

2. 3rd Row Seat Belt Retractor Bolt (1) » Install and tighten — Fastener Specifications

3. {with Long Wheel Base} Auxiliary Air Conditioning Air Lower Duct (1) » Install

3.1. Install the 2 air duct temperature sensors (4) in there proper location. 3.2. Auxiliary Air Conditioning Air Outlet Duct Bolt (3) » Install and tighten [2x] — Fastener Specifications 3.3. Auxiliary Air Conditioning Air Outlet Duct Retainer (2) » Install 3.4. Auxiliary Air Conditioning Air Outlet Upper Duct Bolt (1) » Install and tighten — Fastener Specifications

Note

Left side shown, right side similar.

4. If equipped, connect the electrical connectors and wiring harness retainers.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

5. Quarter Lower Rear Trim Panel (1) » Install

Note

Left side shown, right side similar.

6. Cargo Tie Down Loop (4) » Install
7. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications
8. Cargo Tie Down Loop Bolt Cap (2) » Close
9. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

Note

Left side shown, right side similar.

10. 3rd Row Seat Belt Guide Bolt (2) » Install and tighten — Fastener Specifications
11. 3rd Row Seat Belt Retractor Anchor Cover (1) » Close

Note

Left side shown, right side similar.

12. Rear Seat Belt Opening Bezel (1) » Install

Note

Left side shown, right side similar.

13. 3rd Row Seat Belt Anchor Bolt (1) » Install and tighten — Fastener Specifications

14. Wiring Harness Retainer (2) » Install

15. Electrical Connector (1) » Connect

Note

Left side shown, right side similar.

16. Body Rear Corner Upper Garnish Molding (1) » Install

Note

Left side shown, right side similar.

17. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Left side shown, right side similar.

18. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install
19. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Left side shown, right side similar. Position the body side rear window garnish molding tether in the same position as before the molding removal.

20. Body Side Rear Window Garnish Molding (1) » Install

Note

Left side shown, right side similar. Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

21. Body Lock Pillar Upper Trim Panel (1) » Install

Note

Left side shown, right side similar.

22. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications
23. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

Note

Left side shown, right side similar.

24. Rear Seat Belt Opening Bezel (1) » Install

Note

Left side shown, right side similar.

25. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

26. Rear Seat Belt Retractor Sleeve (1) » Reposition

27. Rear End Trim Finish Panel (1) » Install

28. Liftgate Lock Striker Cover (1) » Install

29. Liftgate Weatherstrip (1) » Reposition

Note

Left side shown, right side similar.

30. Return the rear seat (1) to the original position.

Note

Left side shown, right side similar.

31. Rear Side Door Sill Garnish Molding (1) » Install

32. Enable the SIR System. SIR Disabling and Enabling

33. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation
