Front Floor Console Armrest Latch Replacement (DCH)

Removal Procedure

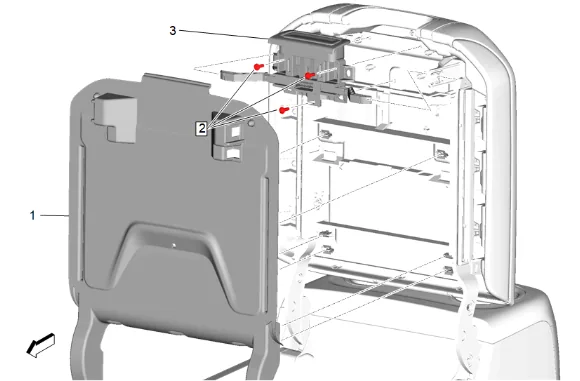

Front Floor Console Armrest Latch Replacement (DCH) — figure 1
Front Floor Console Armrest Latch Replacement (DCH) — figure 1

  1. While holding the latch release button in, use a flat-bladed plastic trim tool to release the retaining clips.

  2. Front Floor Console Inner Armrest (1) » Reposition

  3. Front Floor Console Armrest Bolt (2) » Remove [3x]

  4. Depress the latch rod in on 1 side.

  5. Front Floor Console Armrest Latch (3) » Remove Installation Procedure

  6. Depress the latch rod in on 1 side.

  7. Front Floor Console Armrest Latch (3) » Install

  1. Front Floor Console Armrest Bolt (2) » Install and tighten [3x] — Fastener Specifications
  2. Hold the latch release button in.
  3. Front Floor Console Inner Armrest (1) » Install
