Front Floor Console Wiring Harness Replacement (D07)

Removal Procedure

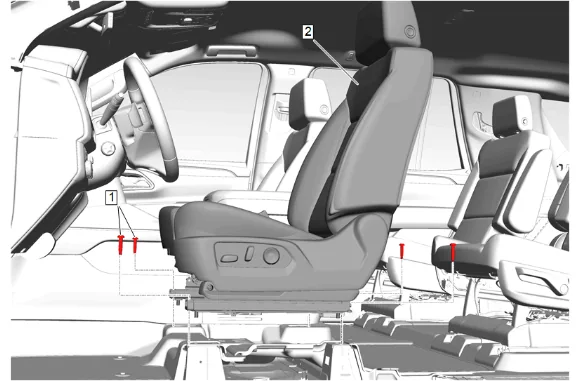

Front Floor Console Wiring Harness Replacement (D07) — figure 1

1. Front Seat (2) » Remove (2) — Front Seat Removal and Installation

Front Floor Console Wiring Harness Replacement (D07) — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 4

Note

Use a flat bladed plastic trim tool.

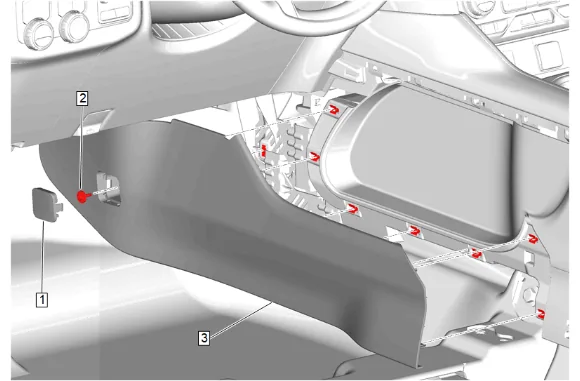

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Front Floor Console Extension Panel (3) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 5

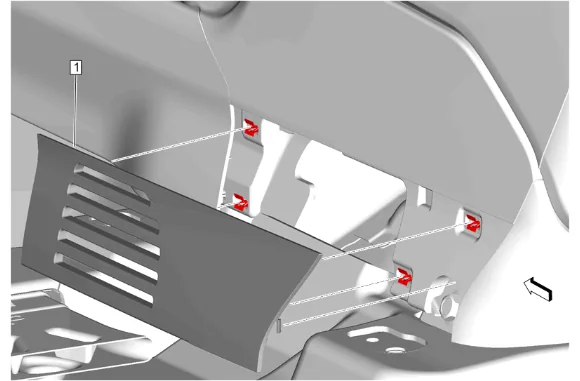

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 6

11. Using a flat-bladed plastic trim tool, release the retaining clips.
12. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 7

13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Front Floor Console Applique (1) » Remove

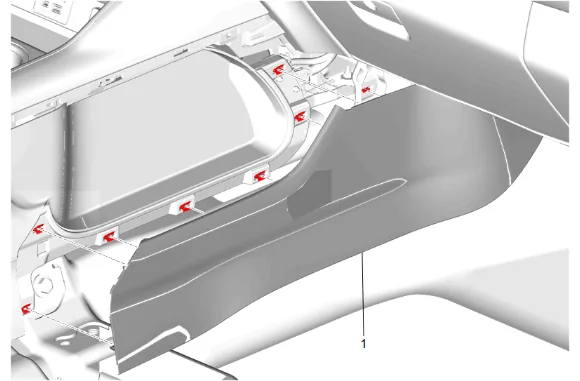

Front Floor Console Wiring Harness Replacement (D07) — figure 8

Note

Use a flat bladed plastic trim tool.

15. Front Floor Console Extension Panel (1) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 9

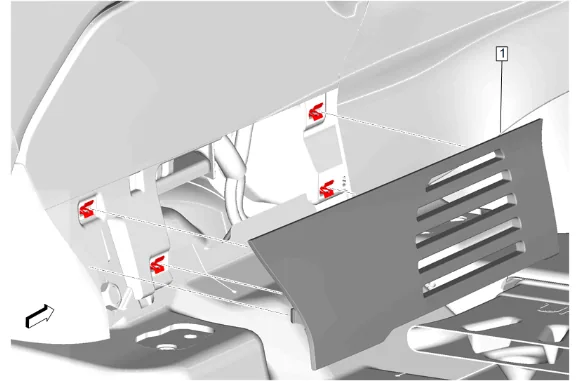

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Wiring Harness Replacement (D07) — figure 10

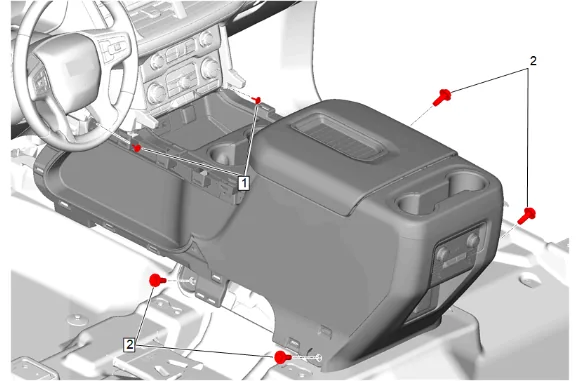

18. Front Floor Console Retainer Bolt (1) » Remove [2x]
19. Front Floor Console Bolt (2) » Remove [4x]
20. Disconnect and reposition harness as necessary.

Front Floor Console Wiring Harness Replacement (D07) — figure 11

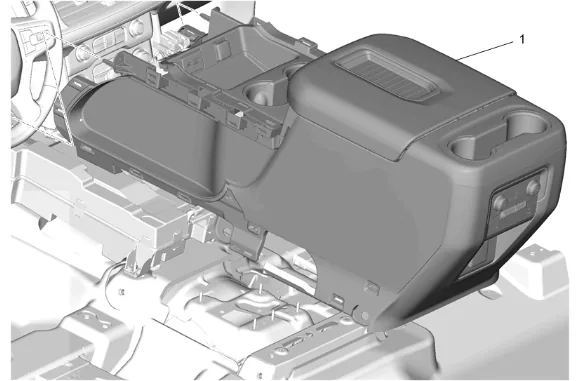

21. Remove the front floor console (1) from the vehicle with the aid of an assistant.

Front Floor Console Wiring Harness Replacement (D07) — figure 12

22. Front Floor Console Rear Cup Holder Liner (1) » Remove
23. Front Floor Console Cup Holder Bolt (2) » Remove
24. Using a flat-bladed plastic trim tool, release the retaining clips.
25. Front Floor Console Rear Cup Holder (3) » Remove

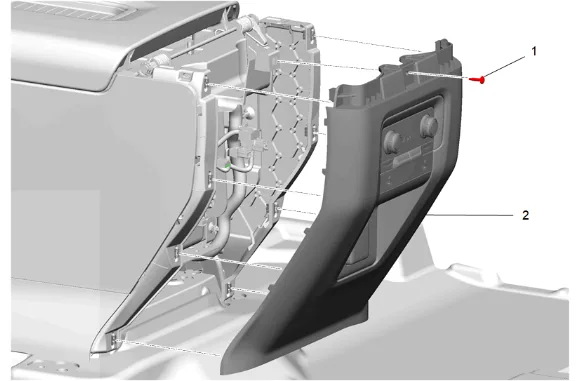

Front Floor Console Wiring Harness Replacement (D07) — figure 13

26. Front Floor Console Rear Cover Bolt (1) » Remove
27. Using a flat-bladed plastic trim tool, release the retaining clips.
28. Front Floor Console Rear Trim Panel (2) » Remove
29. Disconnect the electrical connectors.

Front Floor Console Wiring Harness Replacement (D07) — figure 14

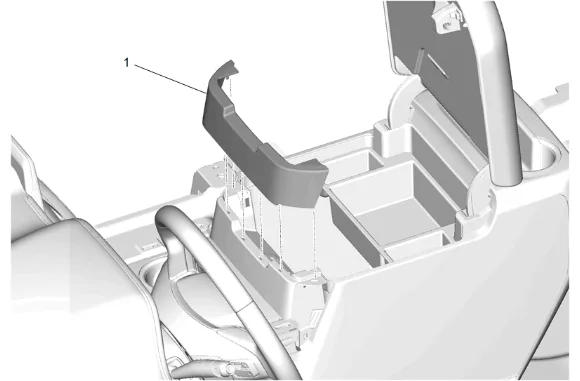

30. Using a suitable plastic trim tool, release the retaining tabs.
31. Front Floor Rear Console Side Trim Panel (1) » Remove

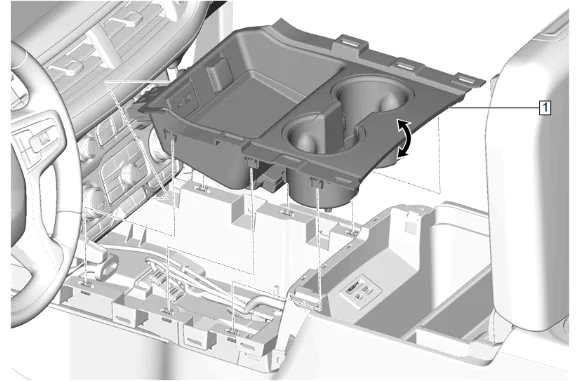

Front Floor Console Wiring Harness Replacement (D07) — figure 15

32. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
33. Disconnect the electrical connectors.
34. Front Floor Console Cup Holder Trim Plate (1) » Remove

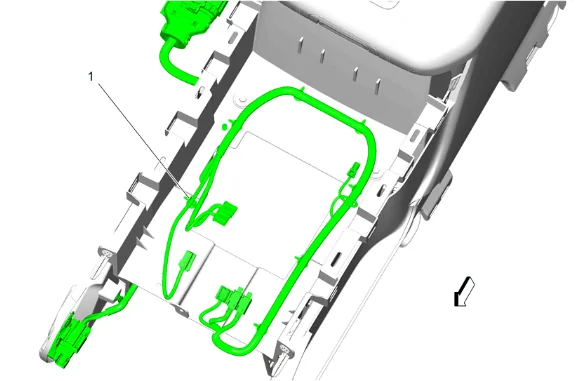

Front Floor Console Wiring Harness Replacement (D07) — figure 16

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content.

35. Release the wiring harness clips and remove the front floor console wiring harness (1).

Front Floor Console Wiring Harness Replacement (D07) — figure 17

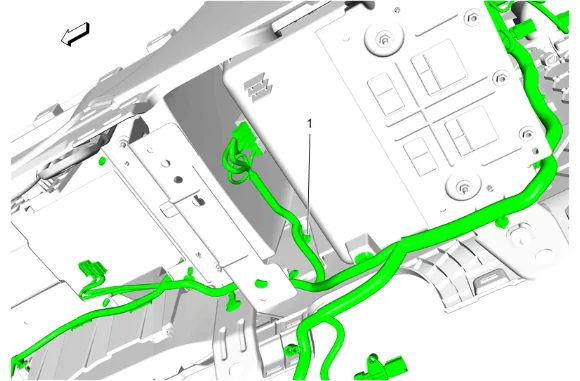

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content.

36. Release the wiring harness clips and remove the front floor console wiring harness (1).

Front Floor Console Wiring Harness Replacement (D07) — figure 18

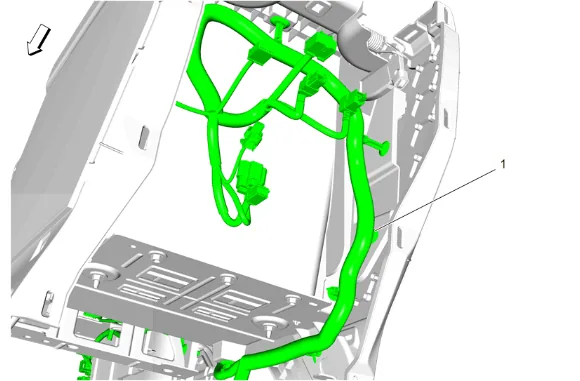

Note

Quantity of clips and routing of the front floor console wiring harness may vary based on option content.

37. Release the wiring harness clips and remove the front floor console wiring harness (1). Installation Procedure

38. Front Floor Console Wiring Harness (1) » Install

39. Front Floor Console Wiring Harness (1) » Install

40. Front Floor Console Wiring Harness (1) » Install

41. Connect the electrical connectors.

42. Front Floor Console Cup Holder Trim Plate (1) » Install

43. Front Floor Rear Console Side Trim Panel (1) » Install

44. Connect the electrical connectors.

45. Front Floor Console Rear Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

9. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

10. Front Floor Console Rear Cup Holder (3) » Install

11. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

12. Front Floor Console Rear Cup Holder Liner (1) » Install

13. Connect and position the wiring harness.

14. Front Floor Console (1) » Install

15. Front Floor Console Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

16. Front Floor Console Bolt (2) » Install and tighten [4x] — Fastener Specifications

17. Front Floor Console Bolt Access Hole Cover (1) » Install

18. Front Floor Console Extension Panel (1) » Install

19. Front Floor Console Applique (1) » Install

20. Front Floor Console Lower Applique (1) » Install

21. Front Floor Console Bolt Access Hole Cover (1) » Install

22. Front Floor Console Extension Panel (3) » Install

23. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

24. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

25. Front Floor Console Applique (1) » Install

26. Front Floor Console Lower Applique (1) » Install

27. Front Seat (2) » Install (2) — Front Seat Removal and Installation
