Sunroof Opening Trim Finish Lace Replacement

Removal Procedure

Warning

Bodily injury may occur if the cleaning solvent is inhaled or exposed to the skin.

1. Open the sunroof sunshade.

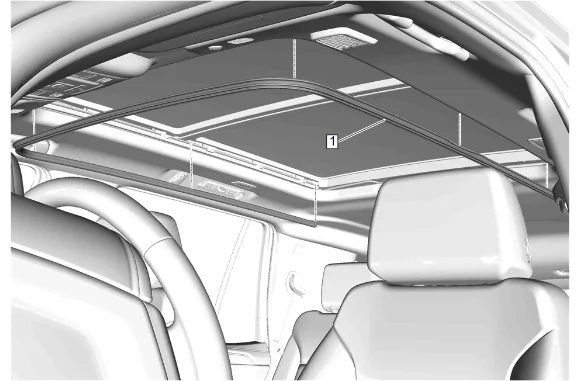

Sunroof Opening Trim Finish Lace Replacement — figure 1

Note

Observe the mounting and location of the sunroof opening trim finish lace to ensure proper reinstallation.

2. Starting at one end of the sunroof opening trim finish lace (1), pull out and away from the frame.

3. Sunroof Opening Trim Finish Lace (1) » Remove

4. Clean the mounting area using a lint-free cloth dampened with a 50/50 mixture of isopropyl alcohol and water. Installation Procedure

5. Sunroof Opening Trim Finish Lace (1) » Install

6. Starting at one end of the sunroof opening trim finish lace (1), seat the sunroof opening trim finish lace at all contact points around the frame.

7. Close the sunroof sunshade.
