Fastener Specifications (1)

Fastener Specifications Table 1: Differential Carrier and Components Table 2: Differential Carrier Mounting

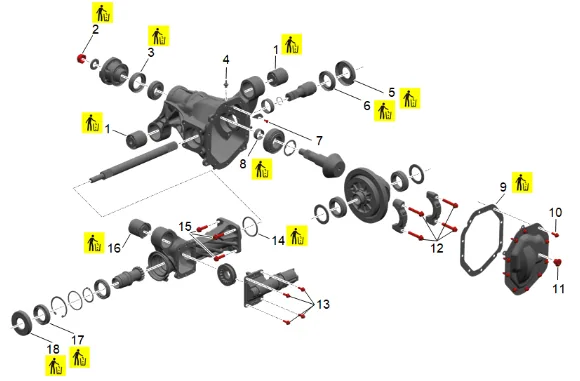

Fastener Specifications (1) — figure 1

Differential Carrier and Components

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Differential Carrier Bushing [2x]	Yes	—	—	Front Differential Carrier Bushing Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
2	Front Differential Drive Pinion Gear Nut	Yes	—	Used Bearings Tighten the pinion nut, in small increments, as needed, until the torque required to rotate the pinion is 0.40-0.57 Y (3-5 lb in) greater than the torque recorded during removal.	Front Differential Drive Pinion Gear Yoke Replacement
				New Bearings Tighten the pinion nut, in small increments, as needed, until the torque required to rotate the pinion is 2.9-3.9 Y (26-35 lb in) .	Front Differential Drive Pinion Gear Inner Bearing Replacement
3	Front Differential Drive Pinion Gear Seal	Yes	—	—	Front Differential Drive Pinion Gear Seal Replacement
4	Front Differential Carrier Vent Hose Connector	—	Yes	28 Y (21 lb ft)	Front Differential Carrier Assembly Replacement
5	Front Wheel Drive Shaft Slinger	Yes	—	—	Front Wheel Drive Shaft Slinger Replacement - Left Side
6	Front Drive Axle Inner Shaft Seal	Yes	—	—	Front Drive Axle Inner Shaft Seal Replacement - Left Side
7	Front Differential Carrier Shield Bolt	—	—	13 Y (115 lb in)	Front Differential Carrier Assembly Replacement
8	Front Differential Drive Pinion Gear Bearing Spacer	Yes	—	—	Front Differential Drive Pinion Gear Outer Bearing Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
9	Front Differential Carrier Cover Gasket	Yes	—	—	Front Differential Carrier Gasket Replacement
10	Front Differential Carrier Cover Bolt [10x]	—	Yes	First Pass: 25 Y (18 lb ft) Final Pass: 30 degrees	Front Differential Carrier Cover and Gasket Replacement
11	Front Differential Carrier Oil Filler Plug	—	—	35 Y (26 lb ft)	Front Axle Lubricant Replacement
12	Front Differential Bearing Cap Bolt [4x]	—	—	First Pass: 30 Y (22 lb ft) Final Pass: 40 degrees	Front Differential Assembly Replacement
13	Front Drive Axle Actuator Bolt [4x]	—	Yes	22 Y (16 lb ft)	Front Drive Axle Actuator Replacement
14	Front Wheel Drive Intermediate Shaft Seal	Yes	—	—	Front Wheel Drive Intermediate Shaft Seal Replacement
15	Front Drive Axle Inner Shaft Housing Bolt [4x]	—	Yes	First Pass: 40 Y (30 lb ft) Final Pass: 30 degrees	Front Drive Axle Inner Shaft Housing Replacement
16	Front Differential Carrier Bushing	Yes	—	—	Front Differential Carrier Bushing Replacement
17	Front Wheel Drive Shaft Seal	Yes	—	—	Front Wheel Drive Shaft Seal Replacement - Right Side
18	Front Wheel Drive Shaft Slinger	Yes	—	—	Front Wheel Drive Shaft Slinger Replacement - Right Side

Fastener Specifications (1) — figure 2

Differential Carrier Mounting

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Differential Carrier Bolt	—	Yes	100 Y (74 lb ft)	Front Axle Replacement
2	Front Differential Carrier Bolt	—	—	—	Front Axle Replacement
3	Front Differential Carrier Bracket Nut	—	—	130 Y (96 lb ft)	Front Axle Replacement
4	Front Differential Carrier Bolt	Yes	—	—	Front Axle Replacement
5	Front Differential Carrier Nut	—	—	First Pass: 115 Y (85 lb ft) Final Pass: 68 degrees	Front Axle Replacement
