Front Seat Heater Control Module Bracket Replacement

Removal Procedure

Front Seat Heater Control Module Bracket Replacement — figure 1

1. Front Seat Cushion Cover and Pad (1) » Remove — Front Seat Cushion Cover and Pad Removal and Installation

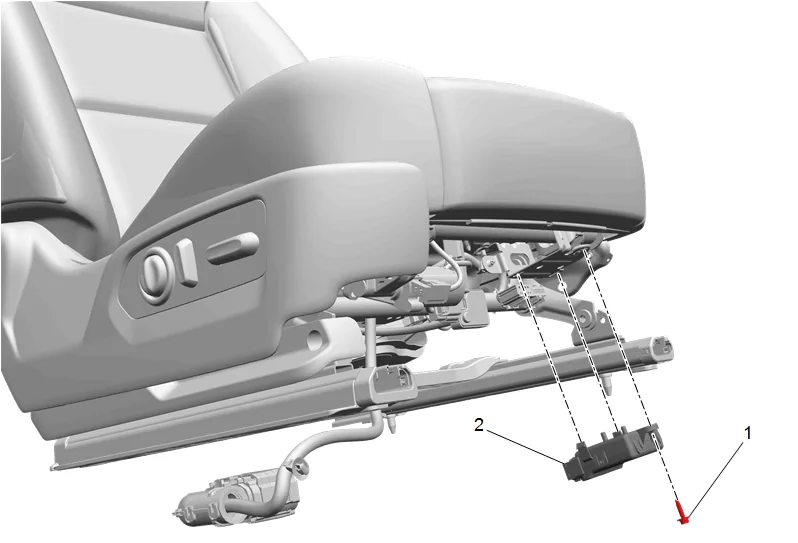

Front Seat Heater Control Module Bracket Replacement — figure 2

2. Front Seat Heater Control Module Bolt (1) » Remove
3. Release the retaining tabs.
4. Front Seat Heater Vent Control Module (2) » Reposition

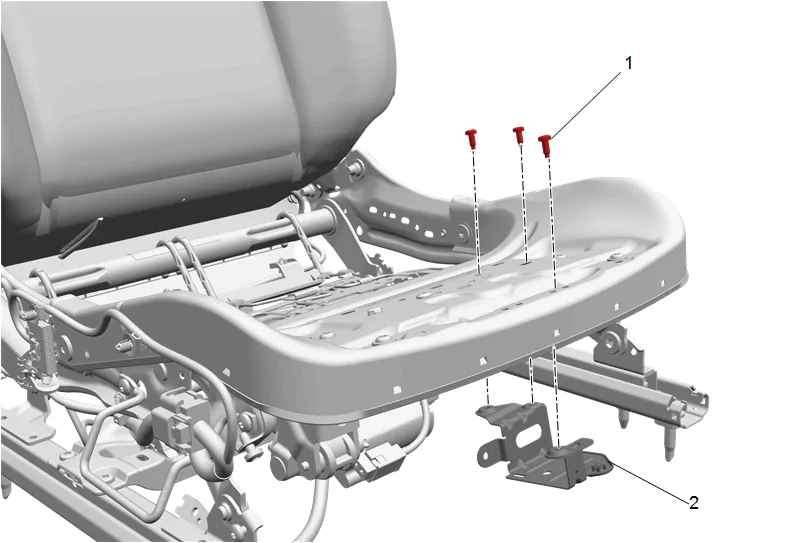

Front Seat Heater Control Module Bracket Replacement — figure 3

5. Disconnect and reposition harness as necessary.

6. Front Seat Heater Control Module Bracket Bolt (1) » Remove [3x]

7. Front Seat Heater Control Module Bracket (2) » Remove Installation Procedure

8. Front Seat Heater Control Module Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Heater Control Module Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

3. Connect and position the wiring harness.

4. Front Seat Heater Vent Control Module (2) » Install

5. Front Seat Heater Control Module Bolt (1) » Install and tighten — Fastener Specifications

6. Front Seat Cushion Cover and Pad (1) » Install — Front Seat Cushion Cover and Pad Removal and Installation
