Fastener Specifications (3)

Fastener Specifications Table 1: Trailer Brake Control Module Table 2: Trailer Lamp Control Module Table 3: Trailer Tire Pressure Indicator Module Table 4: Trailer Tire Pressure Indicator Sensor

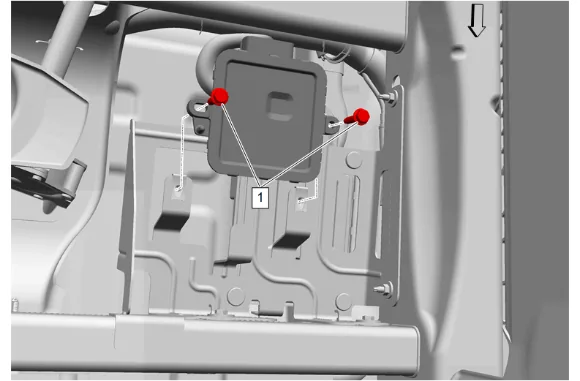

Fastener Specifications (3) — figure 1

Trailer Brake Control Module

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Trailer Brake Power Control Module Bolt [2x]	—	—	9 Y (80 lb in)	Trailer Brake Control Module Replacement

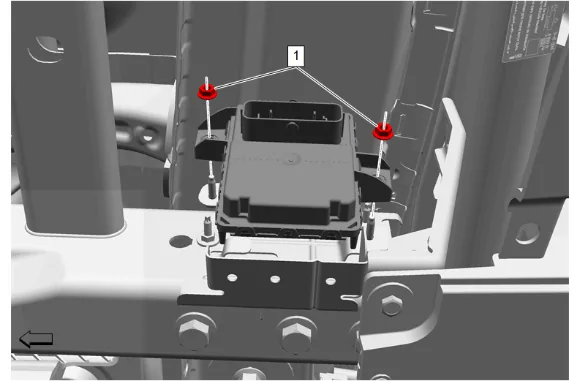

Fastener Specifications (3) — figure 2

Trailer Lamp Control Module

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Trailer Lamp Control Module Bracket Nut [2x]	—	—	9 Y (80 lb in)	Trailer Lamp Control Module Replacement

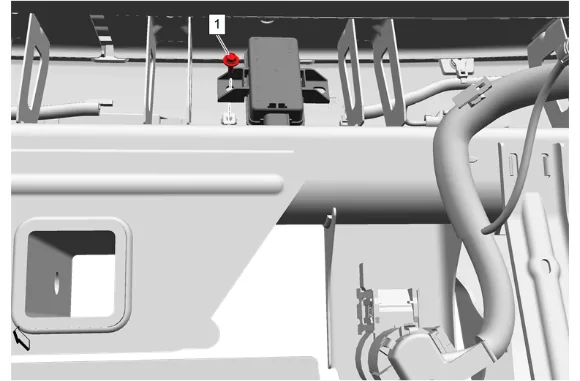

Fastener Specifications (3) — figure 3

Trailer Tire Pressure Indicator Module

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Trailer Tire Pressure Indicator Module Bolt	—	—	9 Y (80 lb in)	Trailer Tire Pressure Indicator Module Replacement

Fastener Specifications (3) — figure 4

Trailer Tire Pressure Indicator Sensor

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Tire Pressure Indicator Sensor Nut	—	—	9 Y (80 lb in)	Trailer Tire Pressure Indicator Sensor Replacement
