Engine Wiring Harness Fuse Block Bracket Replacement

Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

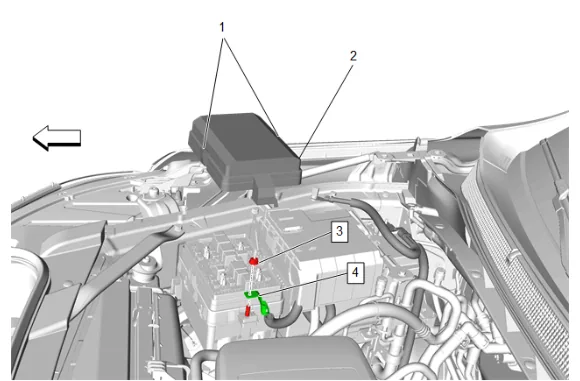

Engine Wiring Harness Fuse Block Bracket Replacement — figure 1

2. Retaining Tab (1) » Disengage [2x]
3. Engine Wiring Harness Junction Block Cover (2) » Remove
4. Battery Positive Cable Nut (3) » Remove
5. Starter Solenoid Cable (4) » Remove

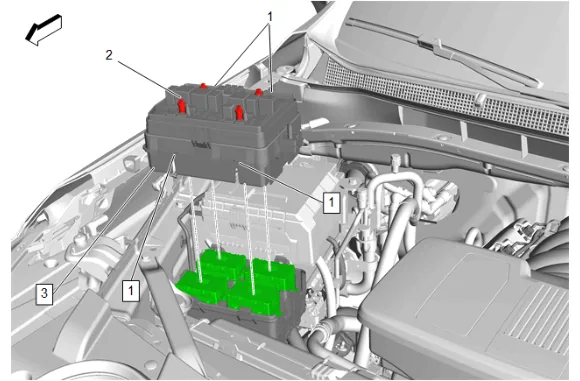

Engine Wiring Harness Fuse Block Bracket Replacement — figure 2

6. Engine Wiring Harness Junction Block Bolt (2) » Loosen [4x]
7. Retaining Tab (1) » Disengage [4x]
8. Engine Wiring Harness Junction Block (3) » Remove

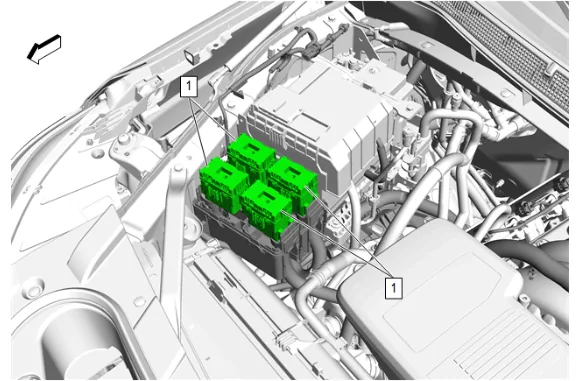

Engine Wiring Harness Fuse Block Bracket Replacement — figure 3

9. Electrical Connector (1) » Remove [4x]

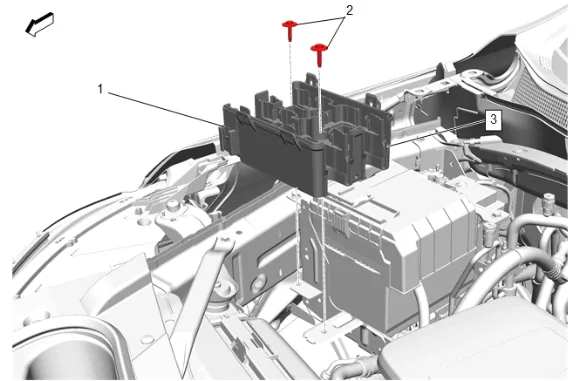

Engine Wiring Harness Fuse Block Bracket Replacement — figure 4

10. Engine Wiring Harness Fuse Block Bracket Bolt (2) » Remove [2x]

11. Retaining Tab (1) » Disengage

12. Engine Wiring Harness Fuse Block Bracket (3) » Remove Installation Procedure

13. Engine Wiring Harness Fuse Block Bracket (3) » Install

14. Retaining Tab (1) » Engage

Caution

Refer to Fastener Caution

3. Engine Wiring Harness Fuse Block Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications

4. Electrical Connector (1) » Install [4x]

5. Engine Wiring Harness Junction Block (3) » Install

6. Retaining Tab (1) » Engage [4x]

7. Engine Wiring Harness Junction Block Bolt (2) » Tighten [4x] — Fastener Specifications

8. Starter Solenoid Cable (4) » Install

9. Battery Positive Cable Nut (3) » Install and tighten — Fastener Specifications

10. Engine Wiring Harness Junction Block Cover (2) » Install

11. Retaining Tab (1) » Engage [2x]

12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
