Front Floor Console Auxiliary Cooling Duct Replacement (with UQA)

Front Floor Console Auxiliary Cooling Duct Replacement (with UQA)

  1. Disable the SIR system. SIR Disabling and Enabling
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 1
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 1

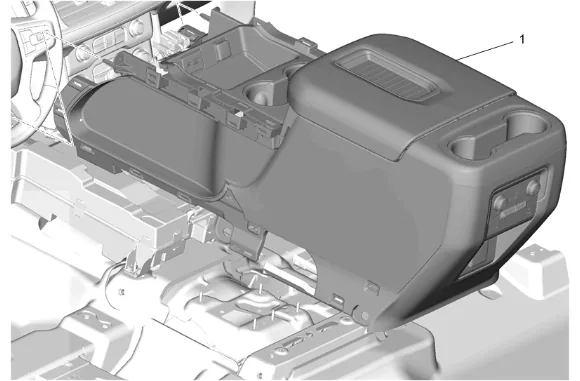

  1. Front Floor Console (1) » Remove — Front Floor Console Removal and Installation
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 2
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 2

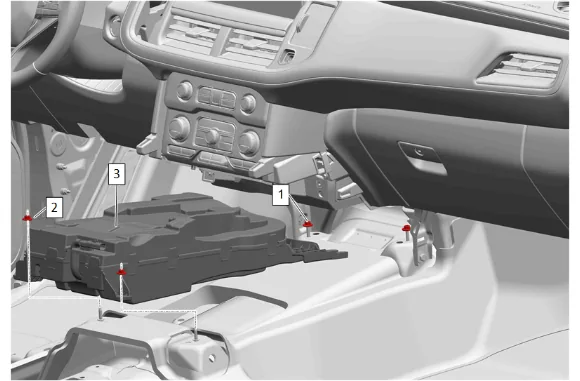

  1. Disconnect the electrical connector.
  2. Radio Front Floor Speaker Nut - Front (1) » Remove [2x]
  3. Radio Front Floor Speaker Nut - Rear (1) » Remove [2x]
  4. Front Floor Speaker (2) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 3
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 4
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Trim Plate Applique (1) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 5
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 5
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Center Trim Plate Applique (1) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 6
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 6
  1. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  1. Instrument Panel Trim Pad (2) » Remove
  2. Disconnect the electrical connector.
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 7
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 7

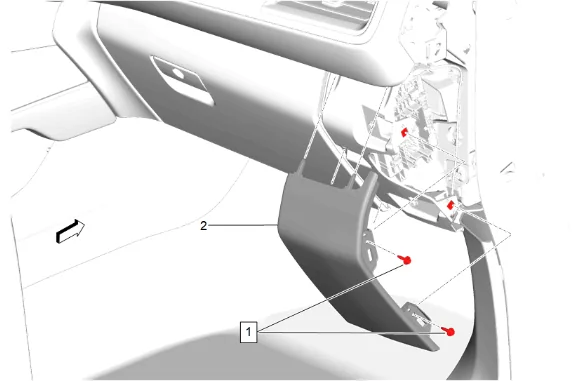

  1. Instrument Panel Compartment Bolt (1) » Remove [2x]
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  3. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove

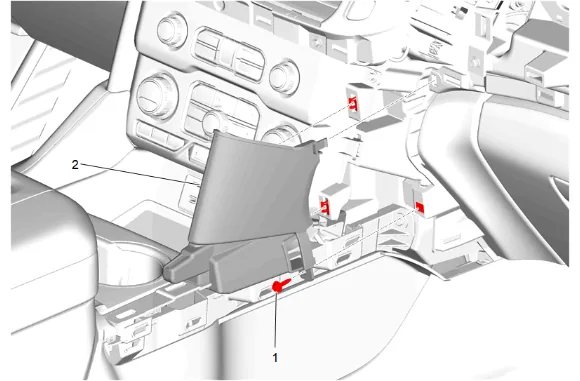

Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 8
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 8
  1. Instrument Panel Lower Trim Panel Bolt (1) » Remove
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  3. Instrument Panel Lower Center Trim Plate Applique (2) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 9
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 9

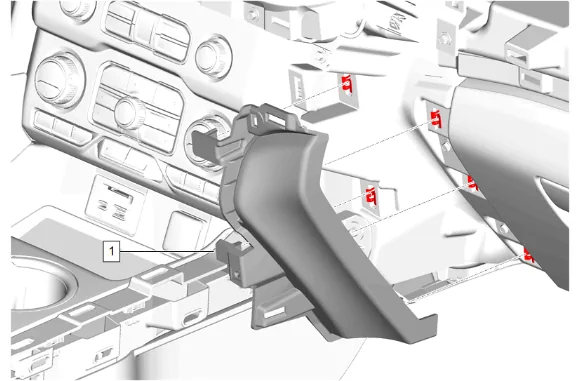

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Lower Trim Panel (1) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 10
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 10

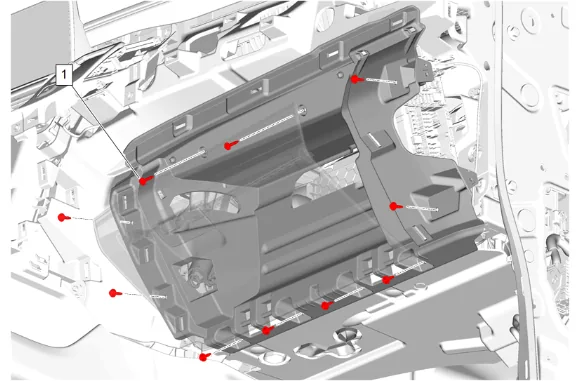

  1. Instrument Panel Compartment Bolt (1) » Remove [10x]
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 11
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 11

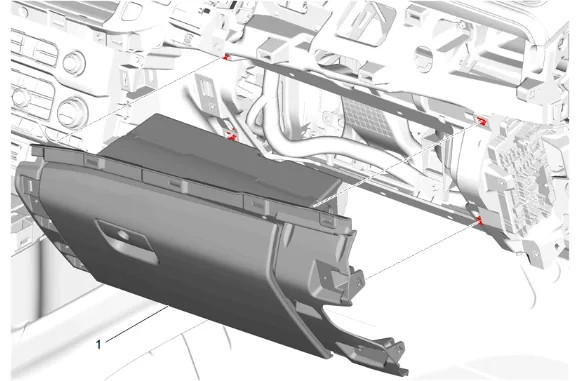

  1. Instrument Panel Compartment (1) » Remove
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 12
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 12

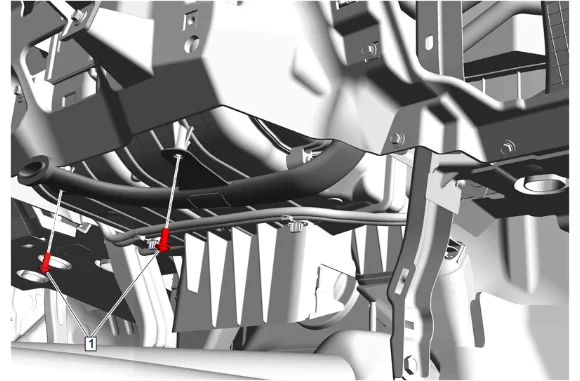

  1. Front Floor Console Auxiliary Cooling Intermediate Duct Bolt (1) » Remove [2x]
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 13
Front Floor Console Auxiliary Cooling Duct Replacement (with UQA) — figure 13

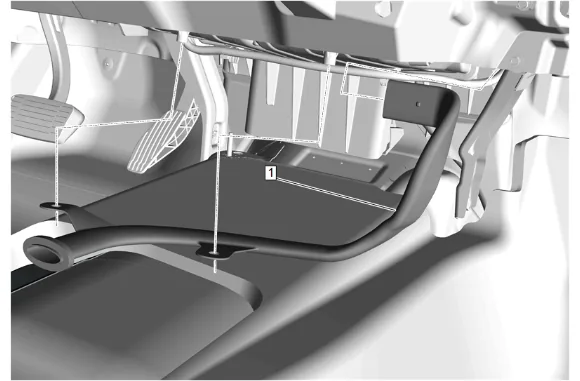

  1. Front Floor Console Auxiliary Cooling Duct (1) » Remove Installation Procedure

  2. Front Floor Console Auxiliary Cooling Duct (1) » Install

  1. Front Floor Console Auxiliary Cooling Intermediate Duct Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Instrument Panel Compartment (1) » Install

  3. Instrument Panel Compartment Bolt (1) » Install and tighten [10x] — Fastener Specifications

  4. Instrument Panel Lower Trim Panel (1) » Install

  5. Instrument Panel Lower Center Trim Plate Applique (2) » Install

  6. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

  7. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

  8. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

  9. Connect the electrical connector.

  10. Instrument Panel Trim Pad (2) » Install

  11. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

  12. Instrument Panel Center Trim Plate Applique (1) » Install

  13. Instrument Panel Trim Plate Applique (1) » Install

  14. Instrument Panel Fuse Block Access Hole Cover (1) » Install

  15. Front Floor Speaker (2) » Install

  16. Radio Front Floor Speaker Nut - Rear (1) » Install and tighten [2x] — Fastener Specifications

  17. Radio Front Floor Speaker Nut - Front (1) » Install and tighten [2x] — Fastener Specifications

  18. Connect the electrical connector.

  19. Front Floor Console (1) » Install — Front Floor Console Removal and Installation

  20. Enable the SIR System. SIR Disabling and Enabling
