Fastener Specifications (4)
Fastener Specifications Table 1: Inside Rearview Mirror Table 2: Outside Rearview Mirror Components Table 3: Outside Rearview Mirror Mounting Fastener Specifications
Inside Rearview Mirror
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Inside Rearview Mirror Bolt | — | — | 1.8 Y(16 lb in) | Inside Rearview Mirror Replacement |

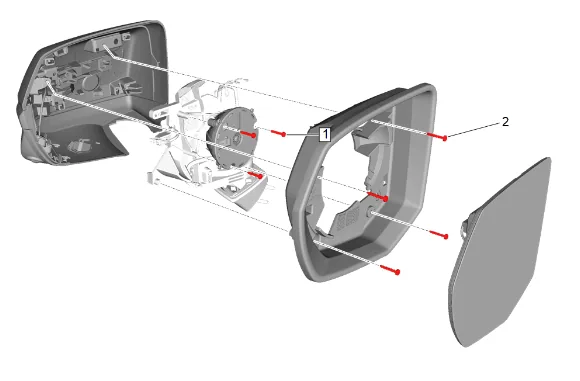

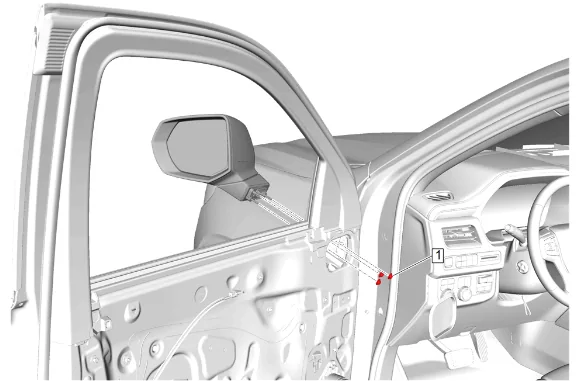

Outside Rearview Mirror Components
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Bolt [3x] | — | — | 1.1 Y (10 lb in) | Outside Rearview Mirror Actuator Replacement |
| 2 | Outside Rearview Mirror Opening Applique Bolt [4x] | — | — | 1.1 Y (10 lb in) | Outside Rearview Mirror Housing Bezel Replacement |
Outside Rearview Mirror Mounting
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [3x] | — | — | 9 Y (80 lb in) | Outside Rearview Mirror Housing Replacement |
