Evaporative Emission Canister Replacement (Short Wheelbase)
Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5536039 Evaporative Emission Canister Replacement (Short Wheelbase)
- Raise and support the vehicle. Lifting and Jacking the Vehicle

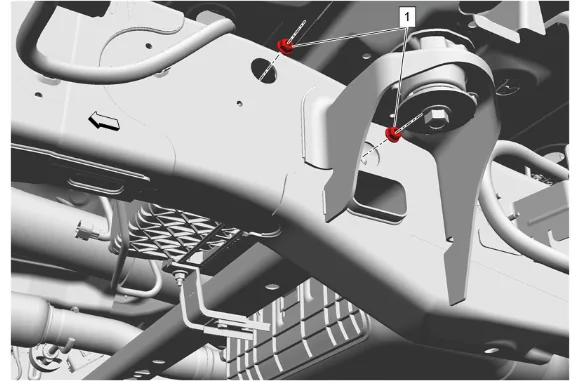

- Evaporative Emission Canister Bracket Nut (1) » Loosen [2x]

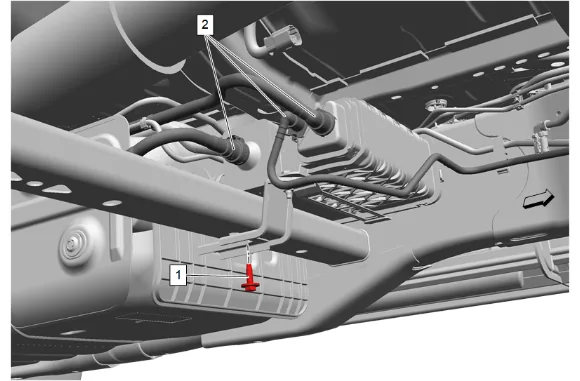

- Evaporative Emission Canister Bracket Bolt (1) » Remove
- Evaporative Emission Hose (2) » Disconnect [3x] — Plastic Collar Quick Connect Fitting Service

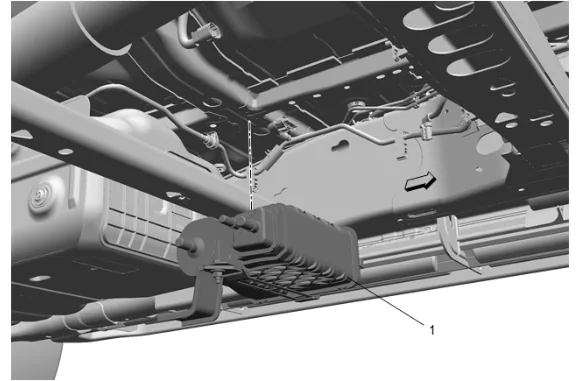

- Evaporative Emission Canister (1) » Remove
-

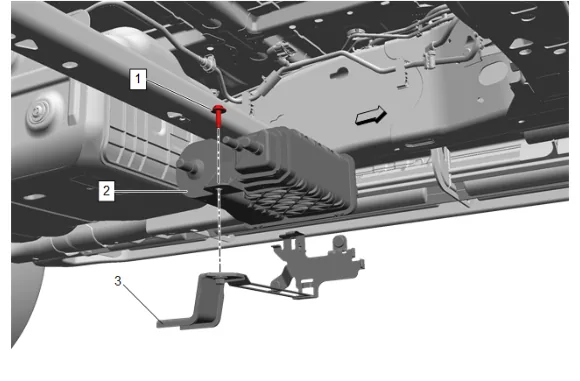

Evaporative Emission Canister Bracket Bolt (1) » Remove
-
Evaporative Emission Canister (2) @ Evaporative Emission Canister Bracket (3) » Remove Installation Procedure
-
Evaporative Emission Canister (2) @ Evaporative Emission Canister Bracket (3) » Install
-
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 2.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 2.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 2.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 2.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
-
Evaporative Emission Canister Bracket Bolt (1) » Install and tighten — Fastener Specifications
-
Evaporative Emission Canister (1) » Install
-
Evaporative Emission Hose (2) » Connect [3x] — Plastic Collar Quick Connect Fitting Service
-
Evaporative Emission Canister Bracket Bolt (1) » Install and tighten — Fastener Specifications
-
Evaporative Emission Canister Bracket Nut (1) » Tighten [2x] — Fastener Specifications
-
Lower the vehicle.
