Air Cleaner Assembly Replacement
Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5503549 Removal Procedure

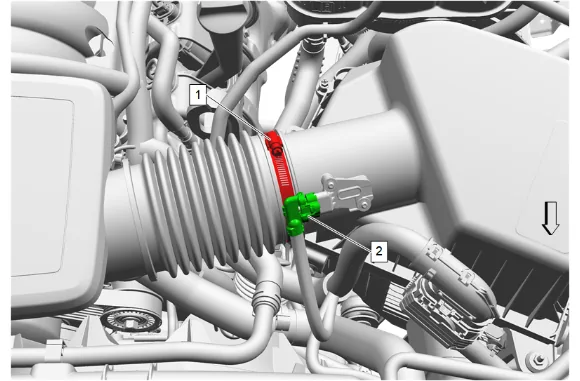

- Air Cleaner Outlet Duct Clamp (1) » Loosen
- Disconnect the mass airflow sensor electrical connector (2) and remove all engine wiring harnesses from the air cleaner assembly.

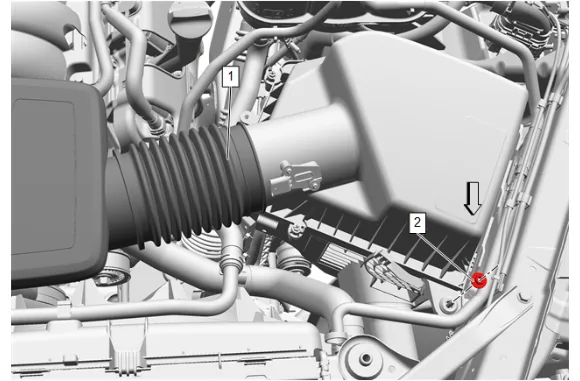

- Air Cleaner Outlet Duct (1) » Reposition away
- Air Cleaner Nut (2) » Remove
- { If equipped } Hood Latch Actuator Bolt (1) » Remove [2x]
- { If equipped } Hood Secondary Latch Release Handle (2) » Remove

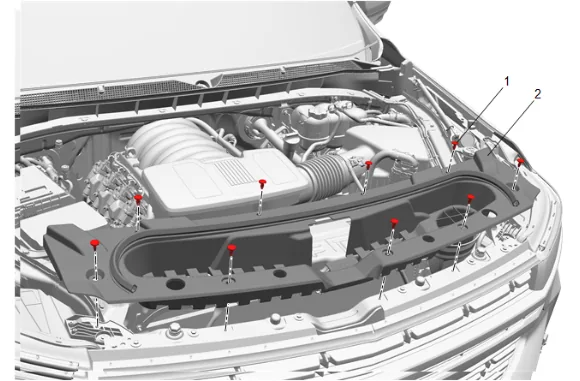

- Air Inlet Grille Panel Retainer (1) » Remove [9x]
- Intake Air Splash Shield (2) » Remove
- Intake Air Duct Retainer (1) » Remove
- Intake Air Duct (2) » Reposition

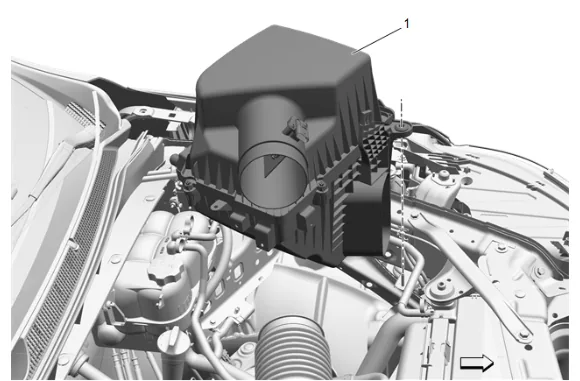

- Air Cleaner Assembly (1) » Remove
-
Mass Airflow Sensor Bolt (1) » Remove [2x]
-
Mass Airflow Sensor (2) » Remove Installation Procedure
-
Mass Airflow Sensor (2) » Install
-
Mass Airflow Sensor Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Air Cleaner Assembly (1) » Install
-
Intake Air Duct (2) » Install
-
Intake Air Duct Retainer (1) » Install
-
Air Inlet Grille Panel Retainer (1) » Install [9x]
-
Intake Air Splash Shield (2) » Install
-
{ If equipped } Hood Secondary Latch Release Handle (2) » Install
-
{ If equipped } Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Air Cleaner Nut (2) » Install and tighten — Fastener Specifications
-
Air Cleaner Outlet Duct (1) » Install
-
Connect the mass airflow sensor electrical connector (2) and engage all engine wiring harnesses to the air cleaner assembly.
-
Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications
