Fastener Specifications 2

Fastener Specifications Table 1: Accessory AC and DC Power Control Module Table 2: Wireless Charging System Module & Dual Charge Only Receptacle Fastener Specifications

Fastener Specifications 2 — figure 1

Accessory AC and DC Power Control Module

Callout	Component Name [Component Quantity]	Single Use Fastener	Thread Locking Adhesive /Compon Required	Specification	Procedure
				ent Metric (English)
1	Accessory AC and DC Power Control Module Nut [3x]	—	—	9 Y (80 lb in)	Accessory AC and DC Power Control Module Replacement

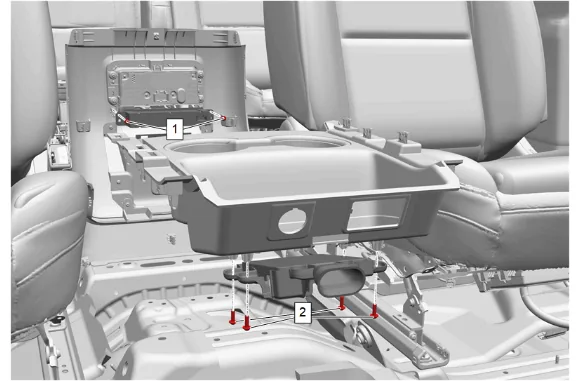

Fastener Specifications 2 — figure 2

Wireless Charging System Module & Dual Charge Only Receptacle

Callout	Component Name [Component Quantity]	Single Use Fastener	Thread Locking Adhesive /Compon Required	Specification	Procedure
				ent Metric (English)
1	Front Floor Console Armrest Bolt [2x]	—	—	1.6 Y (14 lb in)	Dual Charge Only Receptacle Replacement - Rear
2	Wireless Charging System Module Bracket Bolt [4x]	—	—	.8 Y (7 lb in)	Wireless Charging System Module Replacement
