Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4)

Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) Removal Procedure

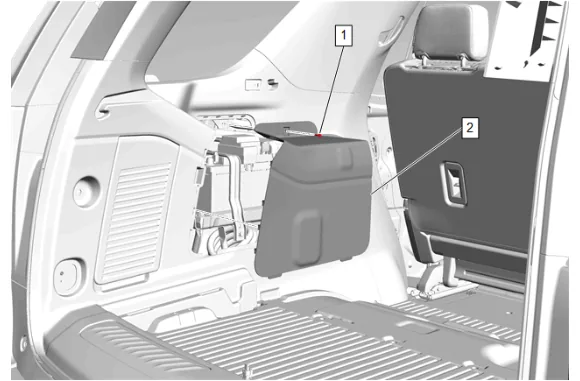

Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) — figure 1

1. Quarter Upper Trim Panel Bolt (1) » Remove
2. Quarter Trim Panel Cover (2) » Remove
3. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

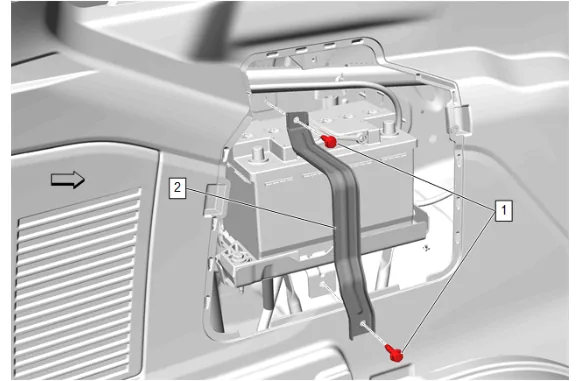

Battery Auxiliary Tray Hold Down Strap Replacement (9C1, 5W4) — figure 2

4. Battery Hold Down Strap Bolt (1) » Remove [2x]

5. Battery Auxiliary Tray Hold Down Strap (2) » Remove Installation Procedure

6. Battery Auxiliary Tray Hold Down Strap (2) » Install

Caution

Refer to Fastener Caution.

2. Battery Hold Down Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

4. Quarter Trim Panel Cover (2) » Install

5. Quarter Upper Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
