Tahoe / Yukon Service Manual

Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base)

Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Open the sunroof sunshade.
  3. Place the sunroof window in the vent position.

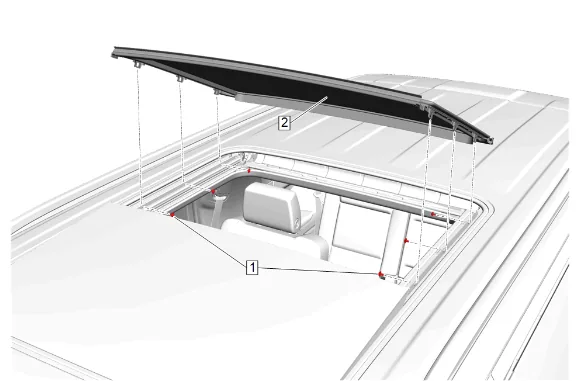

Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 1
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 1
  1. Reposition the sunroof opening trim finish lace to gain access to the bolts.
  2. Sunroof Window Bolt (1) » Remove [6x]
  3. Roof Stationary Window (2) @ Sunroof Window Seal » Disconnect
  4. Roof Stationary Window (2) » Remove
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 2
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 2
  1. Move the front seat fully forward.
  2. Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2).
  3. Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2).
  4. Center Pillar Upper Trim Panel (1) » Remove [2x]
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 3
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 3
  1. Center Pillar Upper Trim Panel Bolt Cap (1) » Remove [2x]
  2. Center Pillar Upper Garnish Molding Bolt (2) » Remove [2x]
  3. Pull the center pillar upper trim panel (3) toward the inside of the vehicle to disengage the retaining clips.
  4. Center Pillar Center Trim Panel (3) » Reposition [2x]
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 4
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 4
  1. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove [2x]
  2. Quarter Window Trim Finish Panel Bolt (2) » Remove [2x]
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 5
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 5
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Lock Pillar Upper Trim Panel (1) » Reposition [2x]
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 6
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 6
  1. Place the coat hook (2) in the open position.
  2. Coat Hook Bolt (1) » Remove [2x]
  3. Coat Hook (2) » Remove [2x]
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 7
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 7
  1. Using a suitable plastic trim tool, release the retaining tabs on the rear seat position center reading and courtesy lamp (1).

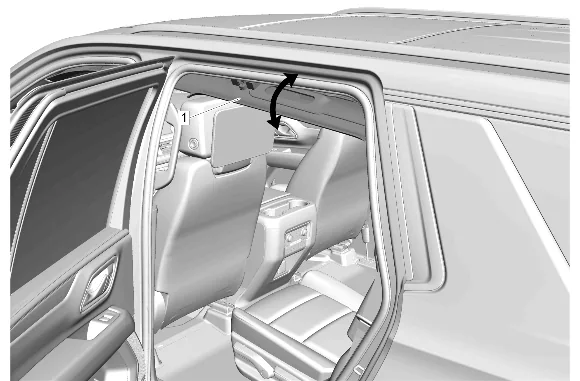

Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 8
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 8
  1. Lower the headlining trim panel (1).

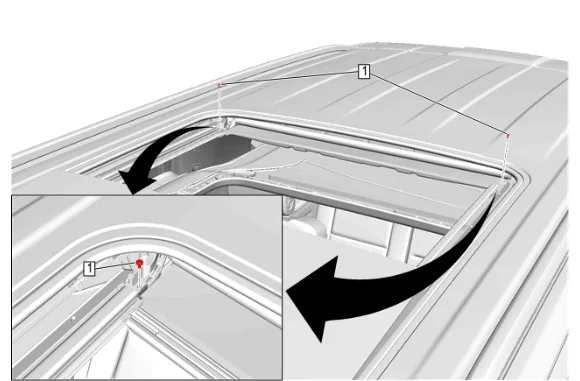

Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 9
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 9
  1. Sunshade Bolt (1) » Remove [2x]

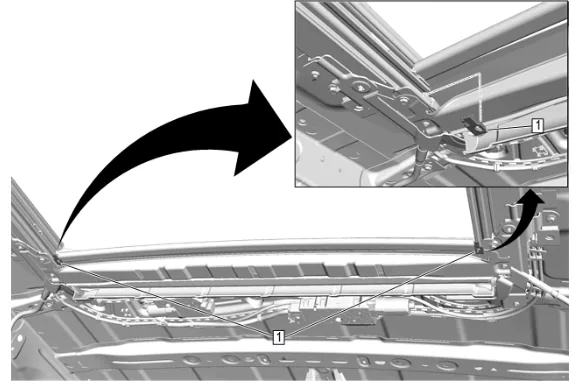

Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 10
Sunroof Sunshade Fabric Guide Replacement (Long Wheel Base) — figure 10
  1. Reposition the sunshade fabric to gain access to the sunroof sunshade fabric guides (1).

  1. Sunroof Sunshade Fabric Guide (1) » Remove [2x] Installation Procedure

  2. Sunroof Sunshade Fabric Guide (1) » Install [2x]

  3. Install the sunshade fabric to original position.

  1. Sunshade Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Headlining Trim Panel (1) » Install

  3. Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.

  1. Coat Hook (2) » Install [2x]
  2. Coat Hook Bolt (1) » Install and tighten [2x] — Fastener Specifications
  1. Body Lock Pillar Upper Trim Panel (1) » Install [2x]
  1. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Quarter Window Trim Finish Panel Bolt Cap (1) » Install [2x]
  1. Center Pillar Upper Trim Panel (3) » Install [2x]
  2. Center Pillar Upper Garnish Molding Bolt (2) » Install and tighten [2x] — Fastener Specifications
  3. Center Pillar Upper Trim Panel Bolt Cap (1) » Install [2x]

  1. Align 6 retaining clips (2) with the upper and lower trim panels.

  2. Center Pillar Center Trim Panel (1) » Install [2x]

  3. Roof Stationary Window (2) » Install

  4. Roof Stationary Window (2) @ Sunroof Window Seal » Connect

  5. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 18.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 18.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 18.3. Remove loose debris from internal and external threads using compressed air. 18.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

  6. Sunroof Window Bolt (1) » Install and hand tighten [6x]

  7. Ensure the proper sunroof window height and opening fit. Sunroof Window Height and Opening Fit Adjustment

  8. Install the sunroof opening trim finish lace.

  9. Close the sunroof window.

  10. Close the sunroof sunshade.

  11. Enable the SIR System. SIR Disabling and Enabling
