Stop Bulb Replacement
Removal Procedure
- Open the rear compartment lid.
- Using the appropriate tool, release the tabs on the back body opening side center gutter.

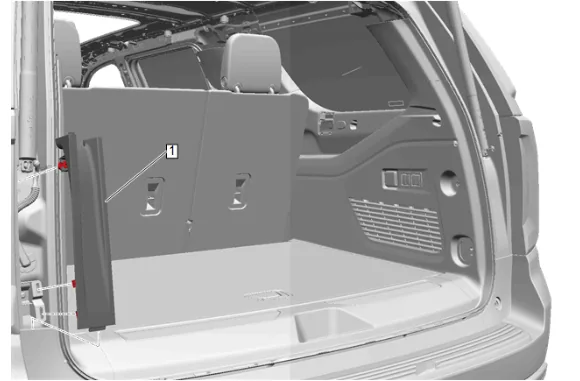

- Release the back body opening side lower gutter retainers and remove the back body opening side lower gutter (1).

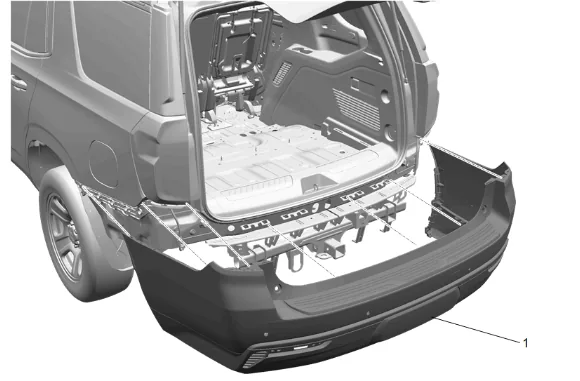

- Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation

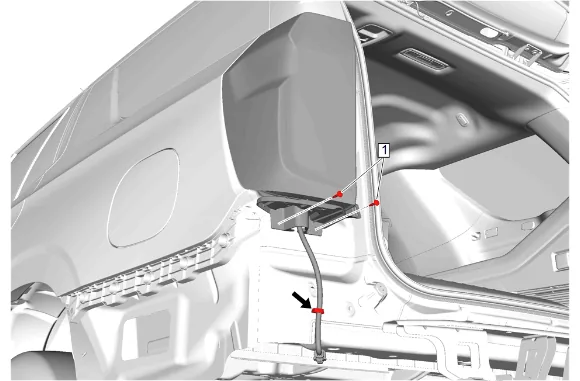

- Rear Body Structure Stop Lamp Bolt (1) » Remove [2x]
- Disconnect the electrical connector.
- Release the retaining tab.
- Rear Body Structure Stop Lamp Bolt (1) » Remove [2x]

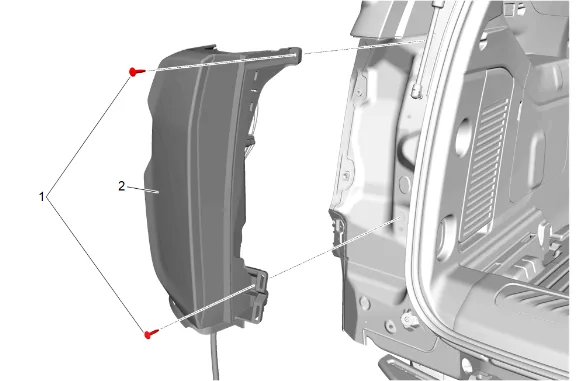

- Rear Body Structure Stop Lamp (2) » Remove
- Rotate the stop bulb socket (1) a quarter turn counterclockwise to release.
-
Stop Bulb Socket (1) » Remove
-
Remove the stop bulb (2) straight from the stop bulb socket (1). Installation Procedure
-
Install the stop bulb (2) straight into the stop bulb socket (1).
-
Stop Bulb Socket (1) » Install
-
Rotate the stop bulb socket (1) a quarter turn clockwise to engage.
-
Ensure the rear body structure lamp (1) is properly aligned with the tail lamp retainers (2).
-

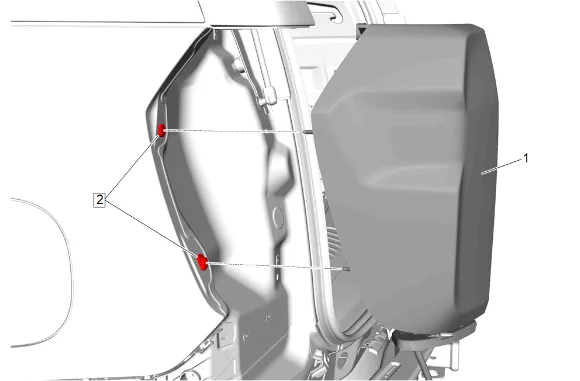

Rear Body Structure Stop Lamp (2) » Install
-
Rear Body Structure Stop Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Secure the retaining tab.
-
Connect the electrical connector.
-
Rear Body Structure Stop Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation
- Back Body Opening Side Lower Gutter (1) » Install
- Back Body Opening Side Center Gutter » Install
- Close the rear compartment lid.
