Fastener Specifications (6)

Fastener Specifications Table 1: Cylinder Head - Left Side Table 2: Cylinder Head - Right Side Table 3: Engine Accessories and Components Table 4: Engine Block and Components Table 5: Engine Mount - Left Side at Frame Table 6: Engine Mount - Left Side at Engine Table 7: Engine Mount - Right Side at Frame Table 8: Engine Mount - Right Side at Engine Table 9: Engine Wiring Harness Bracket Bolt Table 10: Front of Engine Block Table 11: Heater Hose Clip Bracket Bolt Table 12: Heater Water Auxiliary Pump Bracket Bolt Table 13: Intake Manifold and Components Table 14: Oil Pan and Components Table 15: Rear of Engine Table 16: Transmission Fluid Cooler Pipe Clip Bolt Table 17: Valve Lifter Oil Solenoid Valve

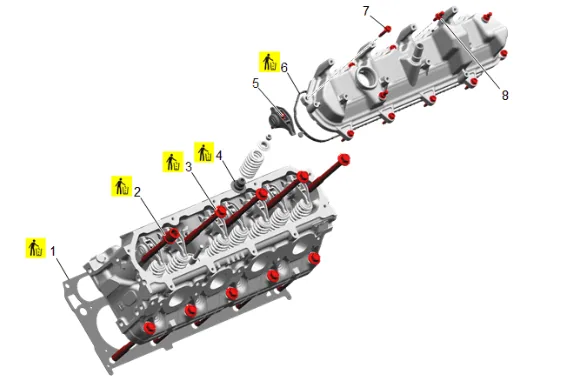

Fastener Specifications (6) — figure 1

Cylinder Head - Left Side

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Cylinder Head Gasket	Yes	—	—	Cylinder Head Replacement - Left Side
2	Cylinder Head Bolt	Yes	—	Cylinder Head - Left Side Bolt Sequence	Cylinder Head Replacement - Left Side
3	Cylinder Head Bolt [9x]	Yes	—	Cylinder Head - Left Side Bolt Sequence	Cylinder Head Replacement - Left Side
4	Valve Stem Oil Seal [8x]	Yes	—	—	Cylinder Head Overhaul
5	Valve Rocker Arm Pivot Support Bolt [8x]	—	—	30 Y (22 lb ft)	Valve Rocker Arm and Push Rod Replacement - Left Side
6	Valve Rocker Arm Cover Gasket	Yes	—	—	Valve Rocker Arm Cover Replacement - Left Side
7	Valve Rocker Arm Cover Bolt [9x]	—	—	Valve Rocker Arm Cover - Left Side Bolt Sequence	Valve Rocker Arm Cover Replacement - Left Side
8	Valve Rocker Arm Cover Insulator Retainer [3x]	—	—	9 Y (80 lb in)	Valve Rocker Arm Cover Replacement - Left Side

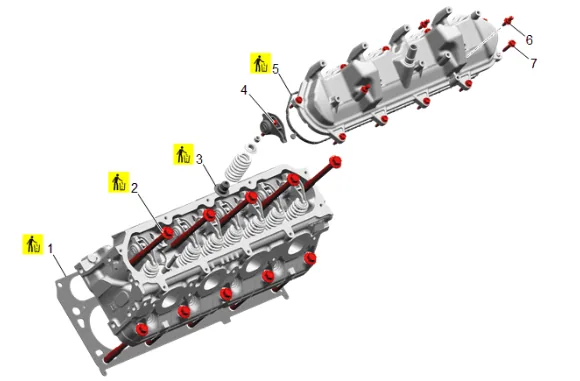

Fastener Specifications (6) — figure 2

Cylinder Head - Right Side

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Cylinder Head Gasket	Yes	—	—	Cylinder Head Replacement - Right Side
2	Cylinder Head Bolt [10x]	Yes	—	Cylinder Head - Right Side Bolt Sequence	Cylinder Head Replacement - Right Side
3	Valve Stem Oil Seal [8x]	Yes	—	—	Cylinder Head Overhaul
4	Valve Rocker Arm Pivot Support Bolt [8x]	—	—	30 Y (22 lb ft)	Valve Rocker Arm and Push Rod Replacement - Right Side
5	Valve Rocker Arm Cover Gasket	Yes	—	—	Valve Rocker Arm Cover Replacement - Right Side
6	Valve Rocker Arm Cover Insulator Retainer [3x]	—	—	9 Y (80 lb in)	Valve Rocker Arm Cover Replacement - Right Side

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
7	Valve Rocker Arm Cover Bolt [10x]	—	—	Valve Rocker Arm Cover - Right Side Bolt Sequence	Valve Rocker Arm Cover Replacement - Right Side

Fastener Specifications (6) — figure 3

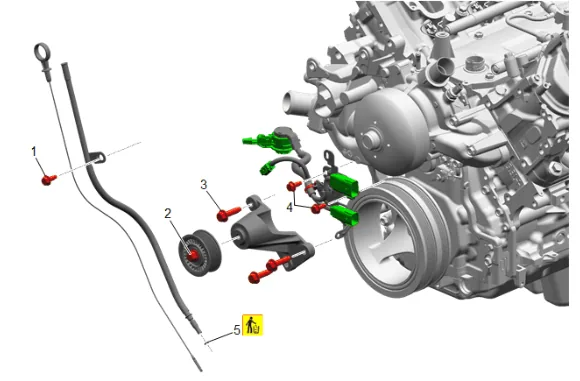

Engine Accessories and Components

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Oil Level Indicator Tube Bolt	—	—	10 Y (89 lb in)	Oil Level Indicator Tube Replacement
2	Belt Idler Pulley	—	—	58 Y (43 lb ft)	Belt Idler Pulley Replacement
3	Belt Idler Pulley Bracket Bolt [3x]	—	—	58 Y (43 lb ft)	Belt Idler Pulley Bracket Replacement
4	Engine Wiring Harness Bolt [2x]	—	—	10 Y (89 lb in)	Valve Rocker Arm Oil Control Valve Extension Harness Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
5	Oil Level Indicator Tube Seal	Yes	—	—	Oil Level Indicator Tube Replacement

Fastener Specifications (6) — figure 4

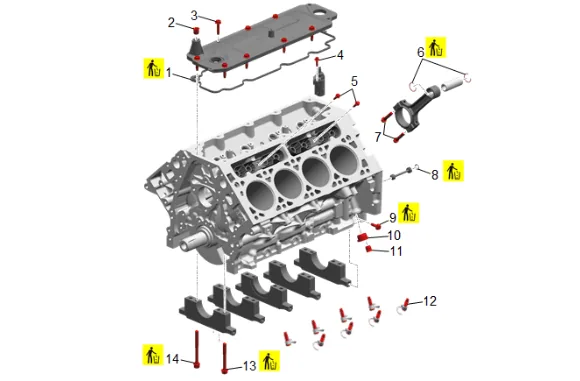

Engine Block and Components

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Block Valley Cover Gasket	Yes	—	—	Engine Block Valley Cover Replacement
2	Drive Motor Oil Filler Hole Plug	—	—	30 Y (22 lb ft)	Engine Block Valley Cover Replacement
3	Engine Block Valley Cover Bolt [9x]	—	—	Engine Block Valley Cover Bolt Sequence	Engine Block Valley Cover Replacement
4	Valve Lifter Follower Guide Bolt	—	—	12 Y (106 lb in)	Valve Lifter Follower Guide Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
5	Valve Lifter Follower Guide Bolt [4x]	—	—	12 Y (106 lb in)	Valve Lifter Guide Replacement - Left Side
					Valve Lifter Guide Replacement - Right Side
6	Piston Pin Retainer [16x]	Yes	—	—	Piston and Connecting Rod Overhaul
7	Connecting Rod Bolt [16x]	Yes	—	First Pass: 20 Y (15 lb ft) Final Pass: 85 degrees	Piston and Connecting Rod Removal and Installation
8	Engine Block Oil Gallery Plug Seal	Yes	—	—	Engine Block Overhaul
9	Crankshaft Bearing Cap Bolt - Side [10x]	Yes	—	Crankshaft Bearing Cap Bolt - Side Sequence	Crankshaft and Bearing Removal and Installation
10	Engine Block Coolant Drain Hole Plug	—	—	30 Y (22 lb ft)	Engine Block Overhaul
11	Engine Block Oil Gallery Plug [2x]	—	—	30 Y (22 lb ft)	Engine Block Overhaul
12	Piston Oil Nozzle [8x]	—	—	20 Y (15 lb ft)	Engine Block Overhaul
13	Crankshaft Bearing Cap Bolt - Outer - Outer	Yes	—	Crankshaft Bearing Cap Bolt - Inner and Outer Side Sequence	Crankshaft and Bearing Removal and Installation
14	Crankshaft Bearing Cap Bolt - Inner [10x]	Yes	—	Crankshaft Bearing Cap Bolt - Inner and Outer Side Sequence	Crankshaft and Bearing Removal and Installation

Fastener Specifications (6) — figure 5

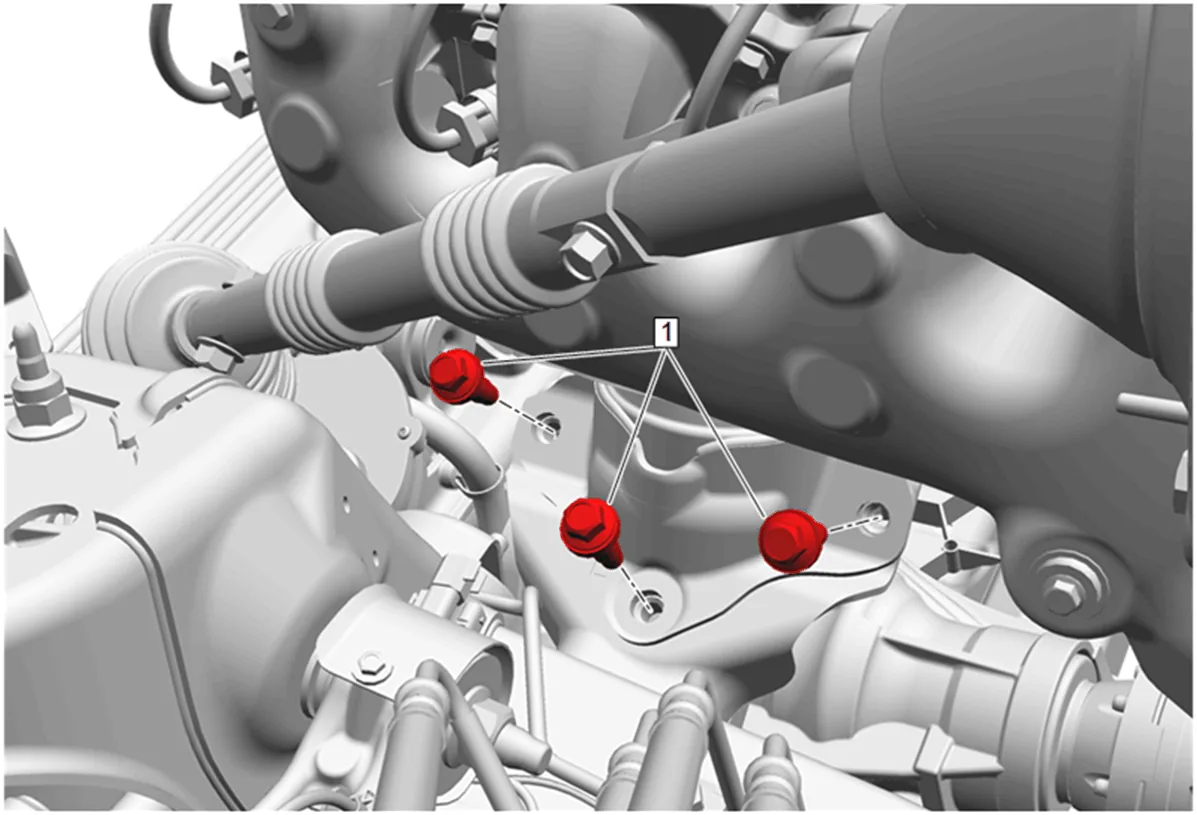

Engine Mount - Left Side at Frame

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Mount Frame Side Bolt - Left Side [3x]	—	Yes	Engine Mount Frame Side Bolt-Left Side Bolt Sequence	Engine Mount Replacement - Left Side

Fastener Specifications (6) — figure 6

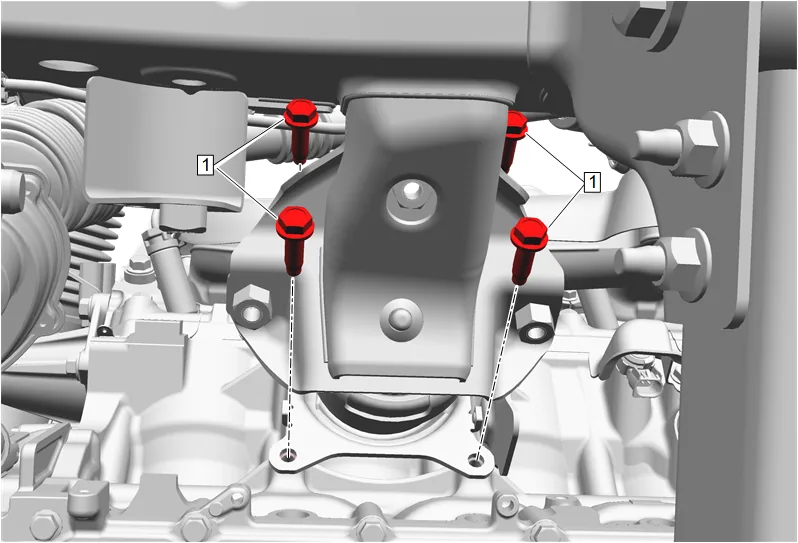

Engine Mount - Left Side at Engine

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Mount Engine Side Bolt - Left Side [4x]	—	Yes	65 Y (48 lb ft)	Engine Mount Replacement - Left Side

Fastener Specifications (6) — figure 7

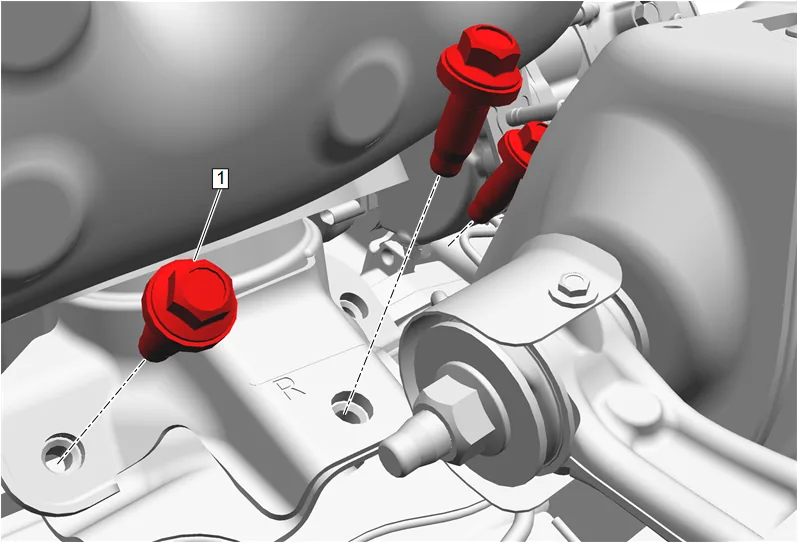

Engine Mount - Right Side at Frame

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Mount Frame Side Bolt - Right Side [3x]	—	Yes	Engine Mount Frame Side Bolt-Right Side Bolt Sequence	Engine Mount Replacement - Right Side

Fastener Specifications (6) — figure 8

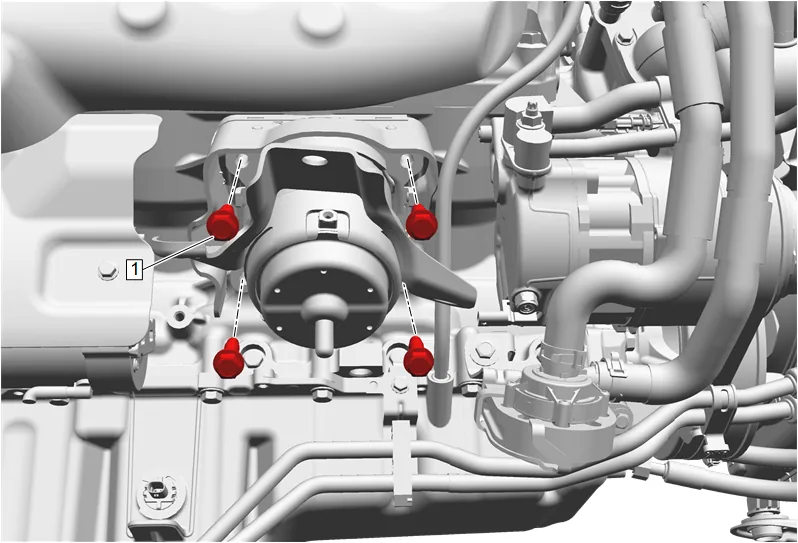

Engine Mount - Right Side at Engine

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Mount Engine Side Bolt - Right Side [4x]	—	Yes	65 Y (48 lb ft)	Engine Mount Replacement - Right Side

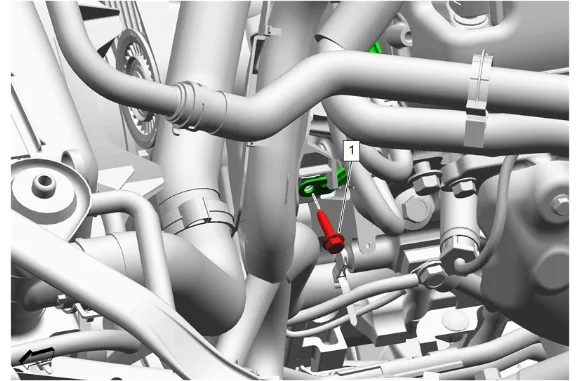

Fastener Specifications (6) — figure 9

Engine Wiring Harness Bracket Bolt

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Wiring Harness Bracket Bolt	—	—	9 Y (80 lb in)	Engine Replacement

Fastener Specifications (6) — figure 10

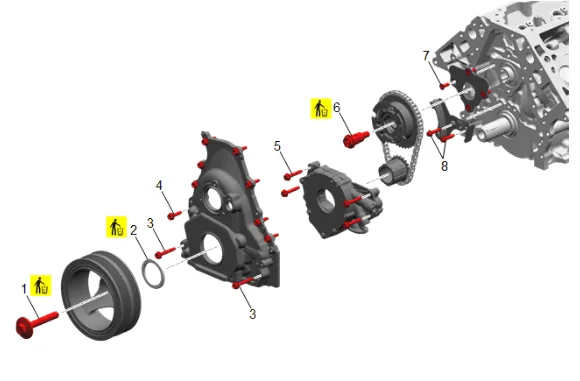

Front of Engine Block

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Crankshaft Balancer Bolt	Yes	—	First Pass: 80 Y (59 lb ft) Final Pass: 125 degrees	Crankshaft Balancer Replacement
2	Crankshaft Front Oil Seal	Yes	—	—	Crankshaft Front Oil Seal Replacement
3	Engine Front Cover Bolt [2x]	—	—	Engine Front Cover Bolt Sequence	Engine Front Cover Replacement
4	Engine Front Cover Bolt [8x]	—	—	Engine Front Cover Bolt Sequence	Engine Front Cover Replacement
5	Oil Pump Bolt [4x]	—	—	Oil Pump Bolt Sequence	Oil Pump Replacement
6	Camshaft Position Actuator Solenoid Valve	Yes	—	First Pass: 65 Y (48 lb ft) Final Pass: 90 degrees	Timing Chain, Crankshaft Sprocket, Camshaft Position Actuator, and Solenoid Valve Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
7	Camshaft Retainer Bolt [4x]	—	Yes	Camshaft Retainer Bolt Sequence	Camshaft Replacement
8	Timing Chain Tensioner Bolt [2x]	—	—	25 Y (18 lb ft)	Timing Chain, Crankshaft Sprocket, Camshaft Position Actuator, and Solenoid Valve Replacement

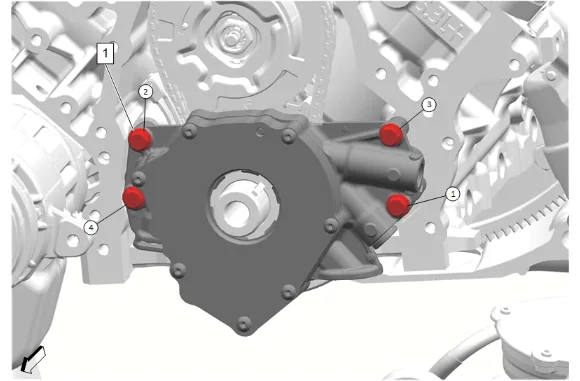

Fastener Specifications (6) — figure 11

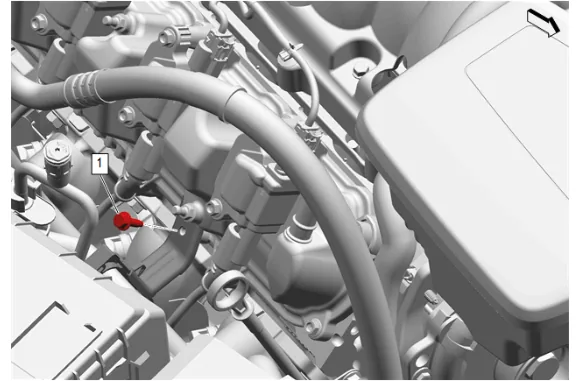

Heater Hose Clip Bracket Bolt

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater Hose Clip Bracket Bolt	—	—	9 Y (80 lb in)	Valve Rocker Arm Cover Replacement - Right Side

Fastener Specifications (6) — figure 12

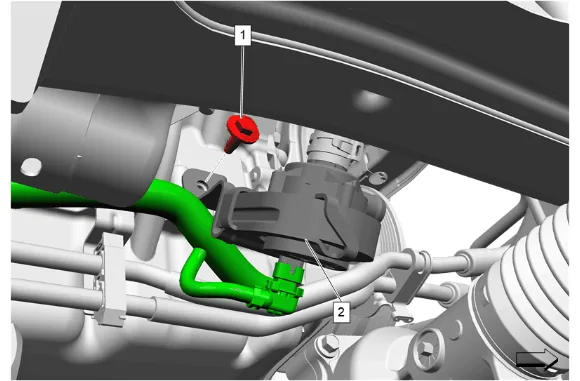

Heater Water Auxiliary Pump Bracket Bolt

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater Water Auxiliary Pump Bracket Bolt	—	Yes	22 Y (16 lb ft)	Engine Removal and Installation

Fastener Specifications (6) — figure 13

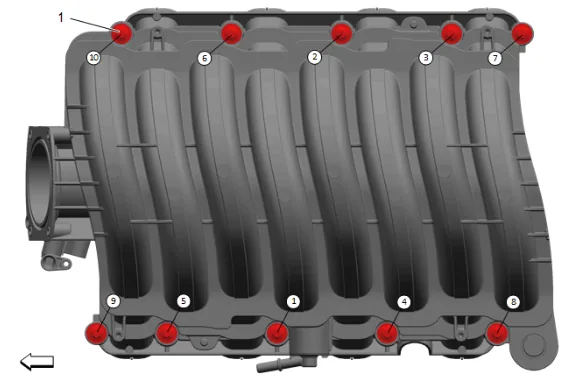

Intake Manifold and Components

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Intake Manifold Cover Bolt	—	—	4.5 Y (40 lb in)	Intake Manifold Cover Replacement
2	Intake Manifold Gasket [8x]	Yes	—	—	Intake Manifold Replacement
3	Intake Manifold Bolt [10x]	—	Yes	Intake Manifold Bolt Sequence	Intake Manifold Replacement

Fastener Specifications (6) — figure 14

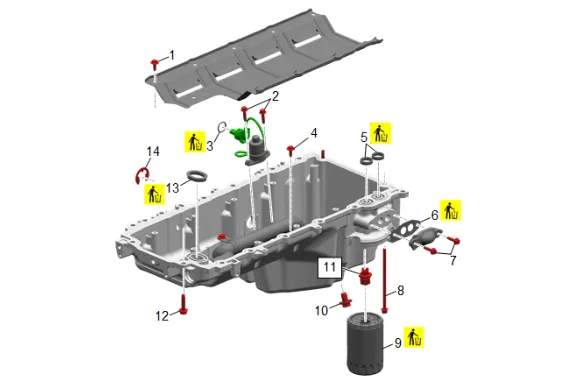

Oil Pan and Components

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Crankshaft Oil Deflector Bolt [10x]	—	—	10 Y (89 lb in)	Engine Oil Level Indicator Switch Replacement
	2	Engine Oil Level Indicator Switch Bolt [2x]	—	—	10 Y (89 lb in)	Engine Oil Level Indicator Switch Replacement
	3	Engine Oil Level Indicator Switch O- Ring Seal	Yes	—	—	Engine Oil Level Indicator Switch Replacement
	4	Oil Pump Suction Pipe Bolt [2x]	—	—	—	Oil Pan Replacement
	5	Oil Pan High Pressure Port Seal [2x]	Yes	—	—	Engine Oil Level Indicator Switch Replacement
	6	Oil Pan Cover Gasket	Yes	—	—	Oil Pan Replacement
	7	Oil Pan Cover Bolt [2x]	—	—	10 Y (89 lb in)	—

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
8	Oil Pan Bolt [2x]	—	—	Oil Pan Bolt Sequence	Oil Pan Replacement
9	Oil Filter	Yes	—	3/4 to 1 full turn after gasket makes contact with the sealing surface on the filter mounting flange	Engine Oil and Oil Filter Replacement
10	Oil Pan Drain Plug	—	—	25 Y (18 lb ft)	Engine Oil and Oil Filter Replacement
11	Oil Filter Fitting	—	—	55 Y (41 lb ft)	Oil Filter Fitting Replacement
12	Oil Pan Bolt [14x]	—	—	Oil Pan Bolt Sequence	Oil Pan Replacement
13	Oil Pan Front Seal	Yes	—	—	Oil Pan Replacement
14	Engine Oil Level Switch Clip	—	—	—	Engine Oil Level Indicator Switch Replacement

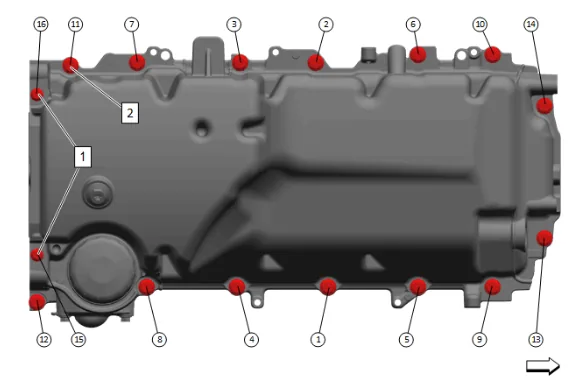

Fastener Specifications (6) — figure 15

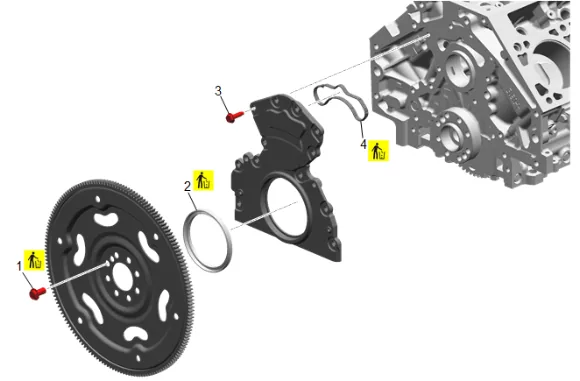

Rear of Engine

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Transmission Flex Plate Bolt [8x]	Yes	Yes	Automatic Transmission Flex Plate Bolt Sequence	Automatic Transmission Flex Plate Replacement
2	Crankshaft Rear Oil Seal	Yes	—	—	Crankshaft Rear Oil Seal Housing Replacement
3	Crankshaft Rear Oil Seal Housing Bolt [12x]	—	—	Crankshaft Rear Oil Seal Housing Bolt Sequence	Crankshaft Rear Oil Seal Housing Replacement
4	Crankshaft Rear Oil Seal Housing Gasket	Yes	—	—	Crankshaft Rear Oil Seal Housing Replacement

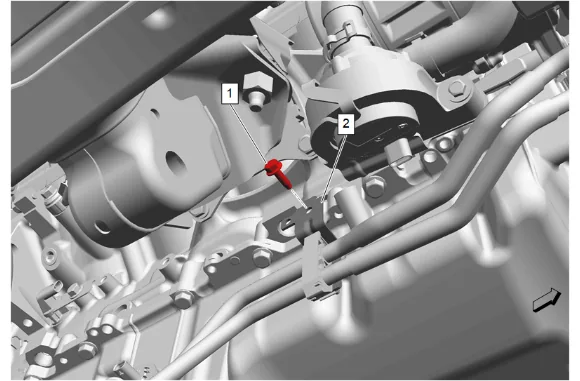

Fastener Specifications (6) — figure 16

Transmission Fluid Cooler Pipe Clip Bolt

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Transmission Fluid Cooler Pipe Clip Bolt	—	—	9 Y (80 lb in)	Engine Replacement

Fastener Specifications (6) — figure 17

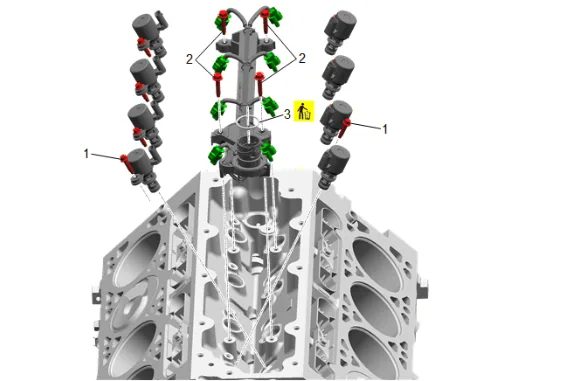

Valve Lifter Oil Solenoid Valve

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Camshaft Position Actuator Solenoid Valve Bolt [8x]	—	—	10 Y (89 lb in)	Valve Lifter Oil Solenoid Valve Replacement
2	Positive Crankcase Ventilation Oil Separator Bolt [4x]	—	—	10 Y (89 lb in)	Valve Rocker Arm Oil Control Valve Harness Replacement
3	Wiring Harness Connector Seal	Yes	—	—	Valve Rocker Arm Oil Control Valve Harness Replacement

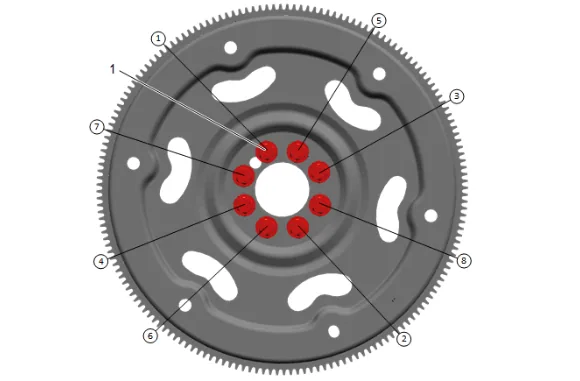

Automatic Transmission Flex Plate Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Transmission Flex Plate Bolt [8x]	Yes	Yes	First Pass: 30 Y (22 lb ft) Final Pass: 45 degrees	Automatic Transmission Flex Plate Replacement

Fastener Specifications (6) — figure 18

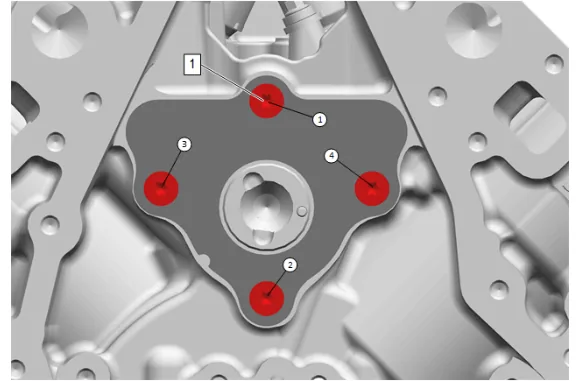

Camshaft Retainer Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Camshaft Retainer Bolt [4x]	—	Yes	15 Y (11 lb ft)	Camshaft Replacement

Fastener Specifications (6) — figure 19

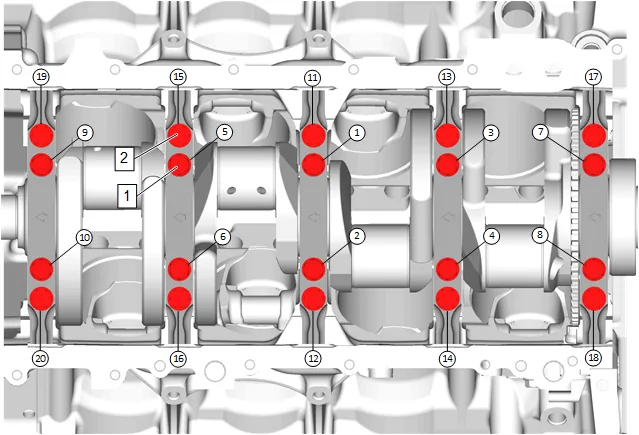

Crankshaft Bearing Cap Bolt - Inner and Outer Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Crankshaft Bearing Cap Bolt - Inner [10x]	Yes	—	First Pass: 20 Y (15 lb ft) Final Pass: 110 degrees	Crankshaft and Bearing Removal and Installation
2	Crankshaft Bearing Cap Bolt - Outer [10x]	Yes	—	First Pass: 20 Y (15 lb ft) Final Pass: 80 degrees	Crankshaft and Bearing Removal and Installation

Fastener Specifications (6) — figure 20

Crankshaft Bearing Cap Bolt - Side Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Crankshaft Bearing Cap Bolt - Side [10x]	Yes	—	First Pass: 25 Y (18 lb ft) Final Pass: 60 degrees	Crankshaft and Bearing Removal and Installation

Fastener Specifications (6) — figure 21

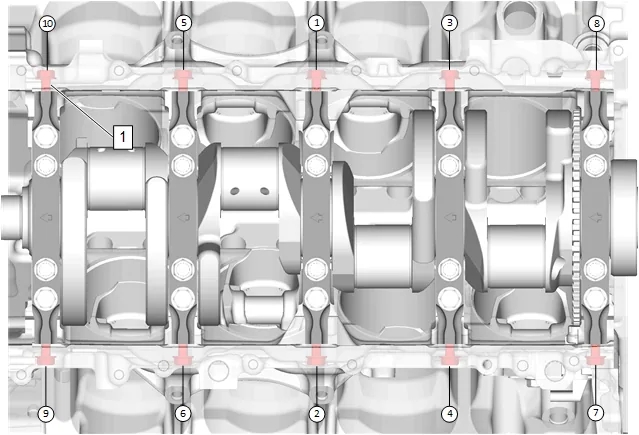

Crankshaft Rear Oil Seal Housing Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Crankshaft Rear Oil Seal Housing Bolt [12x]	—	—	25 Y (18 lb ft)	Crankshaft Rear Oil Seal Housing Replacement

Fastener Specifications (6) — figure 22

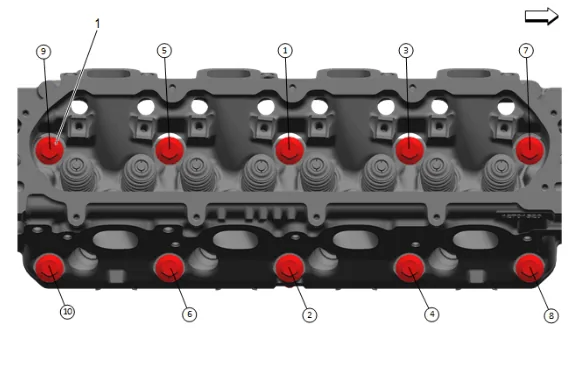

Cylinder Head - Left Side Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Cylinder Head Bolt	Yes	—	First Pass: 80 Y (59 lb ft)) Final Pass: 130 degrees	Cylinder Head Replacement - Left Side
2	Cylinder Head Bolt [9x]	Yes	—	First Pass: 80 Y (59 lb ft)) Final Pass: 150 degrees	Cylinder Head Replacement - Left Side

Fastener Specifications (6) — figure 23

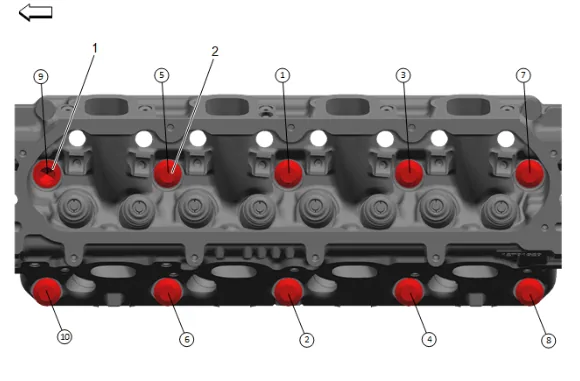

Cylinder Head - Right Side Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Cylinder Head Bolt [10x]	Yes	—	First Pass: 80 Y (59 lb ft)) Final Pass: 150 degrees	Cylinder Head Replacement - Right Side

Fastener Specifications (6) — figure 24

Engine Block Valley Cover Bolts Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Block Valley Cover Bolt [9x]	—	—	First Pass: 15 Y (11 lb ft) Final Pass: 30 Y (22 lb ft)	Engine Block Valley Cover Replacement

Fastener Specifications (6) — figure 25

Engine Front Cover Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Front Cover Bolt [8x]	—	—	25 Y (18 lb ft)	Engine Front Cover Replacement
2	Engine Front Cover Bolt [2x]	—	—	25 Y (18 lb ft)	Engine Front Cover Replacement

Fastener Specifications (6) — figure 26

Engine Mount Frame Side Bolt-Left Side Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Mount Frame Side Bolt - Left Side [3x]	—	Yes	80 Y (59 lb ft))	Engine Mount Replacement - Left Side

Fastener Specifications (6) — figure 27

Engine Mount Frame Side Bolt-Right Side Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Engine Mount Frame Side Bolt - Right Side [3x]	—	Yes	80 Y (59 lb ft))	Engine Mount Replacement - Left Side

Fastener Specifications (6) — figure 28

Intake Manifold Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Intake Manifold Bolt [10x]	—	Yes	10 Y (89 lb in)	Intake Manifold Replacement

Fastener Specifications (6) — figure 29

Oil Pan Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Oil Pan Bolt [2x]	—	—	12 Y (106 lb in)	Oil Pan Replacement
2	Oil Pan Bolt [14x]	—	—	25 Y (18 lb ft)	Oil Pan Replacement

Fastener Specifications (6) — figure 30

Oil Pump Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Oil Pump Bolt [4x]	—	—	25 Y (18 lb ft)	Oil Pump Replacement

Fastener Specifications (6) — figure 31

Valve Rocker Arm Cover - Left Side Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Valve Rocker Arm Cover Bolt - Left Side [9x]	—	—	10 Y (89 lb in)	Valve Rocker Arm Cover Replacement - Left Side

Fastener Specifications (6) — figure 32

Valve Rocker Arm Cover - Right Side Bolt Sequence
Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Valve Rocker Arm Cover Bolt - Right Side [10x]	—	—	10 Y (89 lb in)	Valve Rocker Arm Cover Replacement - Right Side

Fastener Specifications (6) — figure 33
