Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket)

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) Removal Procedure

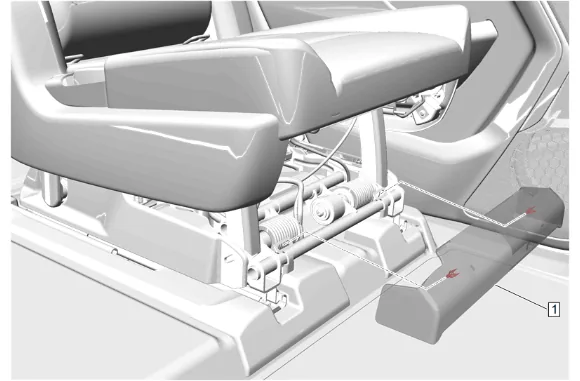

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Rear Seat Riser Finish Cover (1) » Remove

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 2

3. Reposition the seat as necessary.
4. Using a flat-bladed plastic trim tool, release the retaining clip.
5. Rear Seat Riser Finish Cover (1) » Remove [2x]

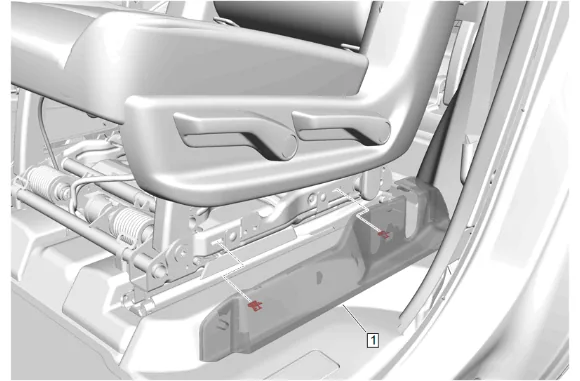

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 3

6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Using a suitable plastic trim tool, release the retaining tabs.
8. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

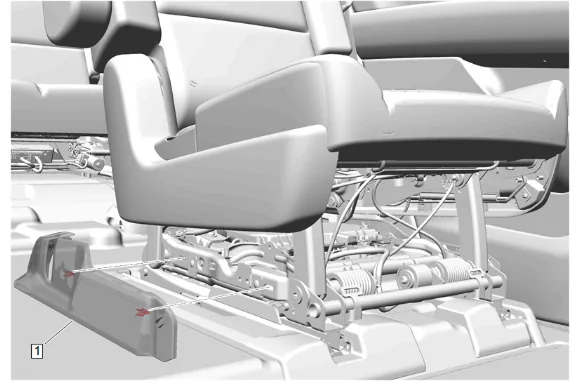

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 4

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Using a suitable plastic trim tool, release the retaining tabs.
11. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 5

12. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
13. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).

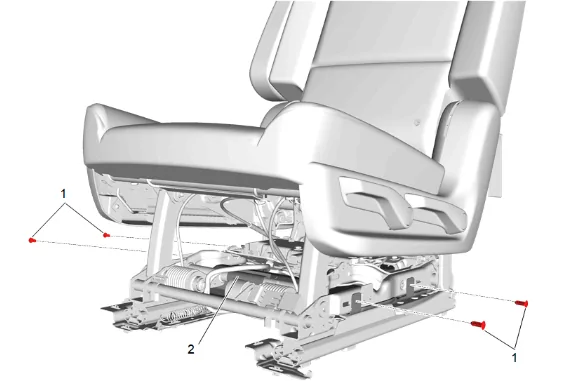

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 6

14. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
15. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

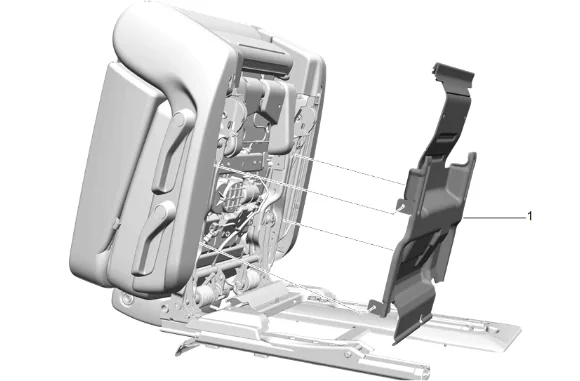

Rear Seat Cushion Trim Panel Replacement (40 Percent, Bucket) — figure 7

16. Place the rear seat in the fold and tumble position.

17. Rear Seat Cushion Trim Panel (1) » Remove Installation Procedure

18. Rear Seat Cushion Trim Panel (1) » Install

19. Return the rear seat to the original position.

20. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

21. Secure the J-channel retainers on the rear seat cushion trim panel (2).

22. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

23. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

24. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

25. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

26. Rear Seat Riser Finish Cover (1) » Install [2x]

27. Return the seat to its original position.

28. Rear Seat Riser Finish Cover (1) » Install
