Case Extension Assemble (2WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4738763 Single Use Fasteners and Components Propeller Shaft Transmission Flange Fluid Seal Special Tools J-38869 Seal Installer Equivalent regional tools: Special Tools

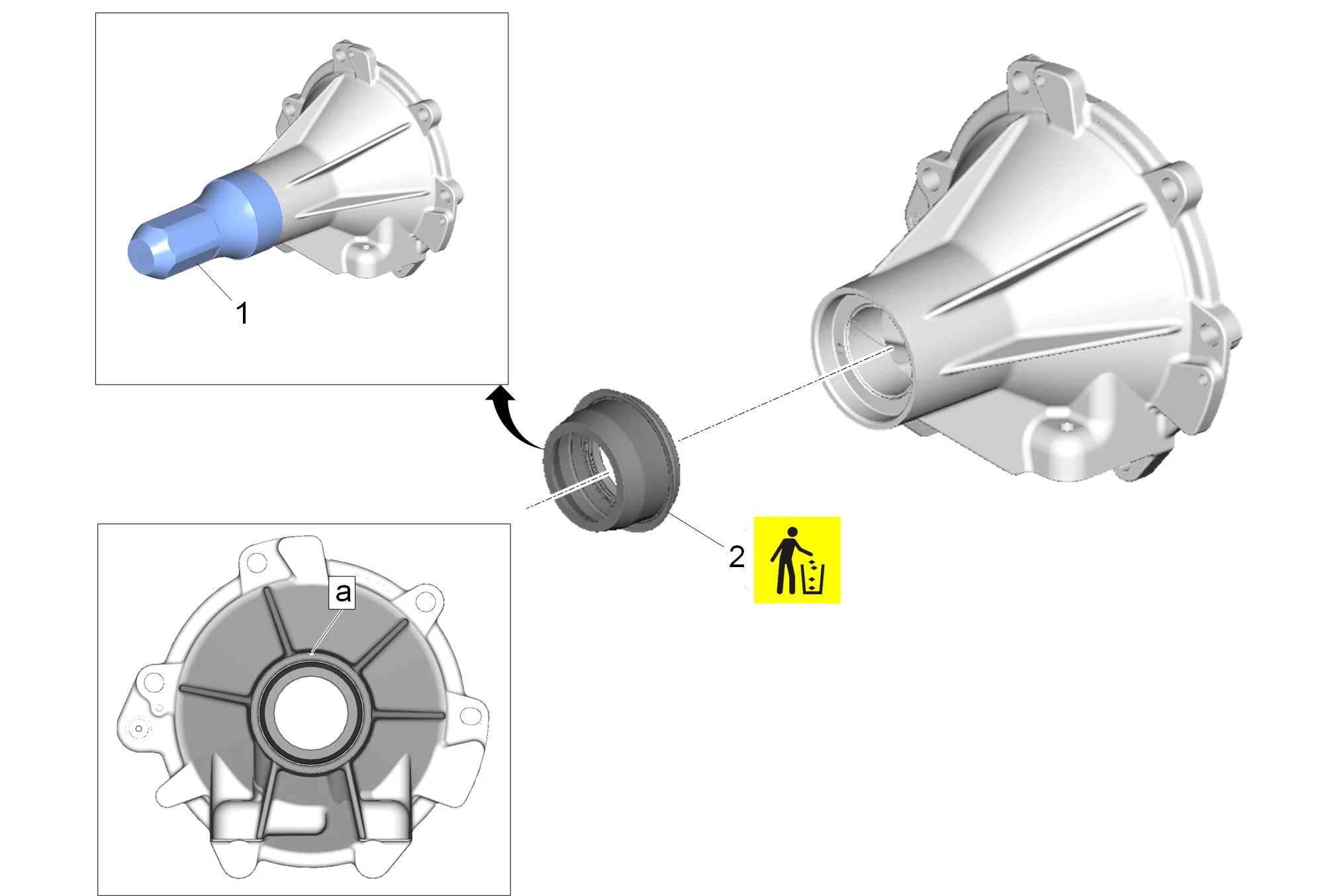

Case Extension Assemble (2WD) — figure 1

1. Use J-38869 Seal Installer (1) to install the Propeller Shaft Transmission Flange Fluid Seal (2).

Note

Ensure the groove (a) in the seal faces the 12 o’clock position prior to installation.

2. Propeller Shaft Transmission Flange Fluid Seal (2) » Install NEW
