Radio Favorites Switch Replacement

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Warning

After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result. Removal Procedure

1. Disable the SIR system. SIR Disabling and Enabling

Radio Favorites Switch Replacement — figure 1

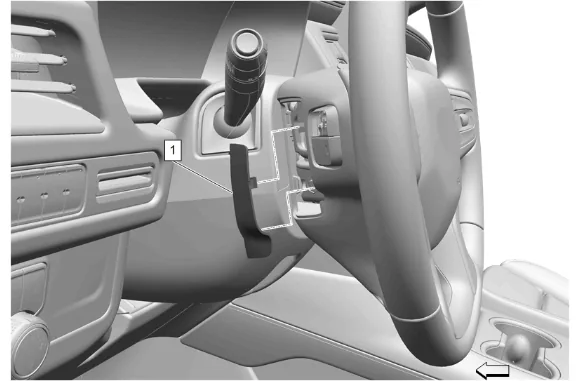

2. Use a flat bladed trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).

Radio Favorites Switch Replacement — figure 2

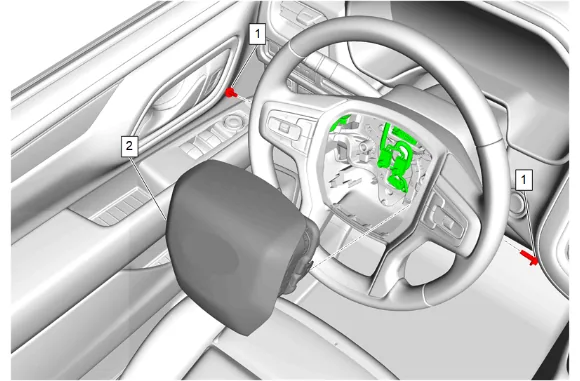

3. Steering Wheel Airbag Bolt (1) » Remove [2x]
4. Release the connector position assurance (CPA) retainer.
5. Disconnect the electrical connectors.
6. Steering Wheel Airbag (2) » Remove

Radio Favorites Switch Replacement — figure 3

Caution

During steering wheel bolt removal, observe the following precautions: Do NOT use heat on the steering wheel bolt, steering wheel, or steering column. Using heat could cause damage to the steering related components. Do NOT hammer or apply excessive downward force on the steering wheel bolt, steering wheel, or steering column. Hammering or applying excessive downward force could cause damage to the steering related components.

Note

Steering wheel bolts installed during manufacturing require high torque efforts to remove. The ONLY acceptable bit for removing and installing the steering wheel bolt is a T50 Torx bit. Do NOT use any other size bit or a worn bit. If a power tool is used to remove the steering wheel bolt, the tool must have a minimum torque rating greater than 75 Nm (55 lb ft) and both the power tool and the T50 Torx bit MUST be positioned perpendicular to the bolt recess. Apply appropriate downward force to maintain engagement of bit to bolt recess during bolt removal.

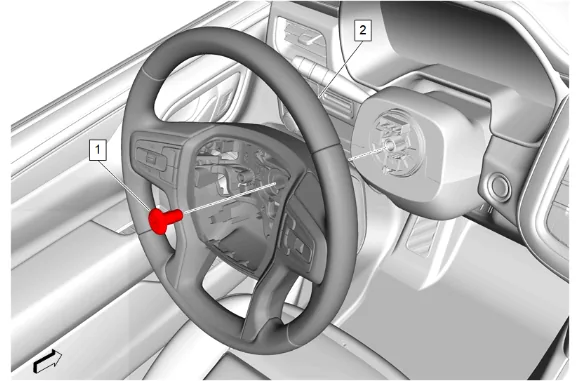

7. Loosen the steering wheel bolt (1)  so that 2 - 3 threads are engaged.
8. Wiggle the steering wheel until the wheel disengages completely.
9. Steering Wheel Bolt (1) » Remove
10. Steering Wheel (2) » Remove

Radio Favorites Switch Replacement — figure 4

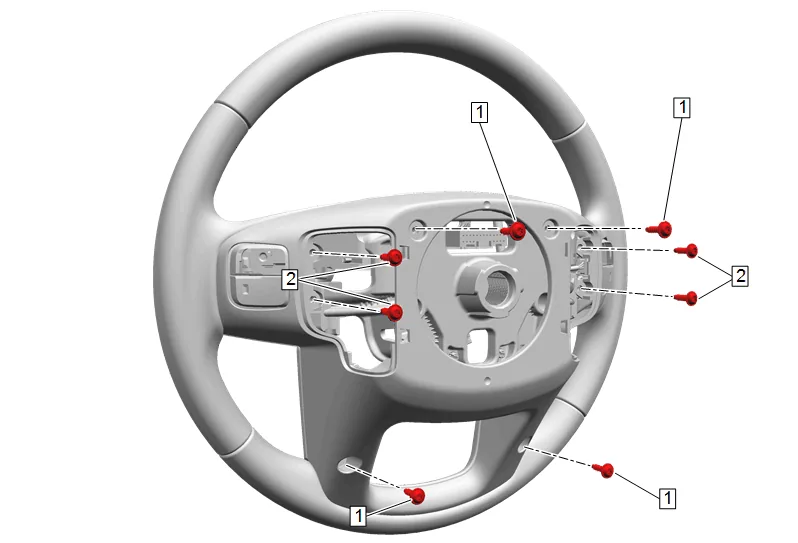

11. Remove the 4 steering wheel spoke cover bolts (1).
12. Remove the 4 steering wheel bolts (2).

Radio Favorites Switch Replacement — figure 5

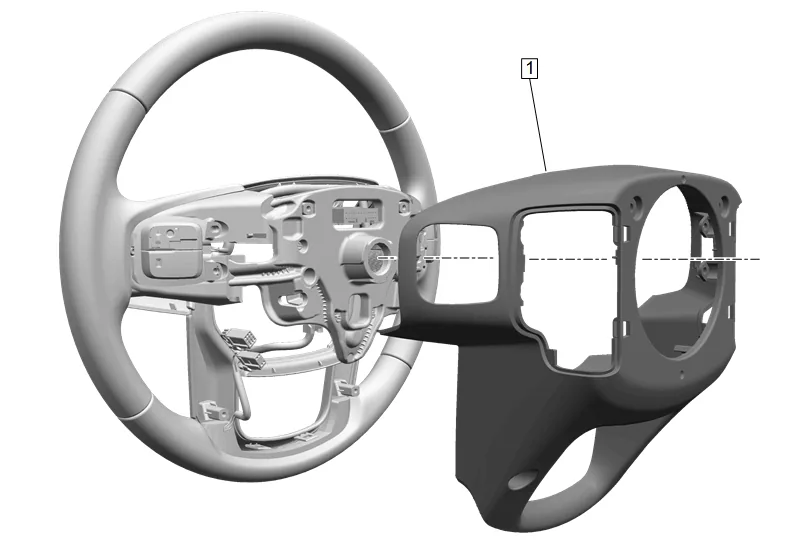

13. Steering Wheel Shroud (1) » Remove
14. Disconnect the heated steering wheel module electrical connectors, if equipped.

Radio Favorites Switch Replacement — figure 6

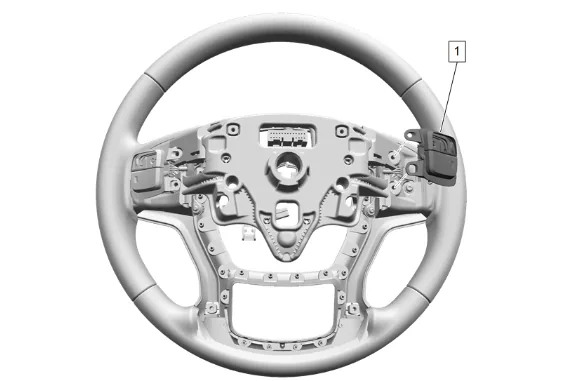

15. Disconnect the electrical connector.

16. Radio Favorites Switch (1) » Remove Installation Procedure

17. Radio Favorites Switch (1) » Install

18. Connect the electrical connector.

19. Steering Wheel Shroud (1) » Install

20. Connect the heated steering wheel module electrical connectors, if equipped.

Caution

Refer to Fastener Caution.

5. Install and tighten the 4 steering wheel spoke cover bolts (1). Fastener Specifications

6. Install and tighten the 4 steering wheel bolts (2). Fastener Specifications

7. Steering Wheel (2) » Install

8. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 8.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 8.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 8.3. Remove loose debris from internal and external threads using compressed air. 8.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

9. Steering Wheel Bolt (1) » Install and tighten — Fastener Specifications

10. Connect the electrical connectors.

11. Install any connector position assurance (CPA) devices or secondary locks.

12. Steering Wheel Airbag (2) » Install

13. Steering Wheel Airbag Bolt (1) » Install and tighten [2x] — Fastener Specifications

14. Install the 2 steering wheel airbag access hole covers (1).

15. Enable the SIR System. SIR Disabling and Enabling
