Fastener Specifications (3)

Fastener Specifications Table 1: Front Seat Belts Table 2: Second Row Seat Belts Table 3: Third Row Seat Belts

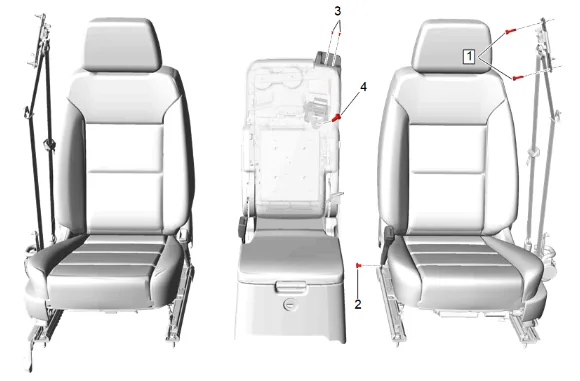

Fastener Specifications (3) — figure 1

Front Seat Belts

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Front Seat Belt Adjust Bolt [2x]	—	Yes	45 Y (33 lb ft)	Front Seat Belt Guide Adjuster Replacement
	2	Front Seat Belt Buckle Bolt	—	Yes	45 Y (33 lb ft)	Front Seat Belt Buckle Replacement
	3	Front Seat Belt Opening Bezel Bolt [2x]	—	—	1.1 Y(10 lb in)	Front Seat Belt Opening Bezel Replacement
	4	Front Seat Belt Retractor Bolt	—	—	45 Y (33 lb ft)	Front Seat Center Belt Retractor Replacement

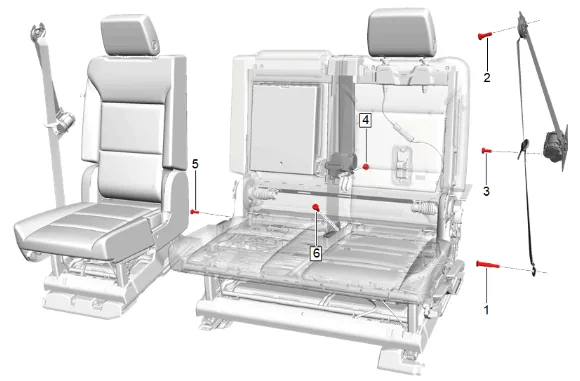

Fastener Specifications (3) — figure 2

Second Row Seat Belts

Callou	t Component Name	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Seat Belt Anchor Plate Bolt	—	—	45 Y (33 lb ft)	Rear Seat Belt Retractor Replacement
2	Rear Seat Belt Guide Bolt	—	—	45 Y (33 lb ft)	Rear Seat Belt Retractor Replacement
3	Rear Seat Belt Retractor Bolt	—	—	45 Y (33 lb ft)	Rear Seat Belt Retractor Replacement
4	Rear Center Seat Belt Buckle Bolt (60 Percent Seat)	—	—	75 Y (55 lb ft)	Rear Seat Center Belt Retractor Replacement
5	Rear Seat Belt Buckle Bolt	—	—	45 Y (33 lb ft)	Rear Seat Belt Buckle Replacement
6	Rear Seat Center Belt Anchor Plate Bolt (60 Percent Seat)	—	—	45 Y (33 lb ft)	Rear Seat Belt Buckle Replacement

Fastener Specifications (3) — figure 3

Third Row Seat Belts

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	3rd Row Center Seat Belt Retractor Bolt [2x]	—	Yes	45 Y (33 lb ft)	3rd Row Center Seat Belt Retractor Replacement
2	3rd Row Seat Belt Anchor Bolt	—	—	45 Y (33 lb ft)	3rd Row Seat Belt Retractor Replacement - Left Side
					3rd Row Seat Belt Retractor Replacement - Right Side
3	3rd Row Seat Belt Guide Bolt	—	—	45 Y (33 lb ft)	3rd Row Seat Belt Retractor Replacement - Left Side
					3rd Row Seat Belt Retractor Replacement - Right Side

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
4	3rd Row Seat Belt Retractor Bolt	—	—	45 Y (33 lb ft)	3rd Row Seat Belt Retractor Replacement - Left Side
					3rd Row Seat Belt Retractor Replacement - Right Side
5	3rd Row Seat Nut [2x]	—	—	45 Y (33 lb ft)	3rd Row Seat Belt Buckle Replacement
