Roof Console Replacement

Removal Procedure

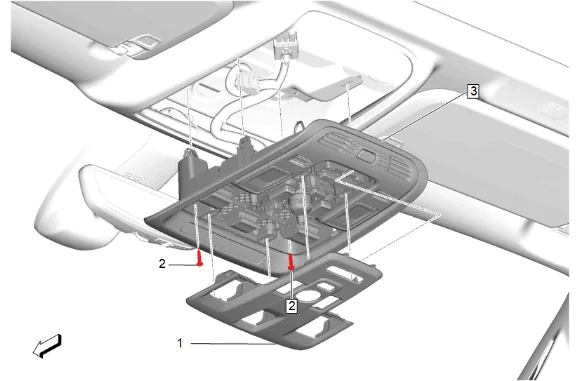

Roof Console Replacement — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Roof Console Opening Trim Plate (1) » Remove
3. Roof Console Bolt (2) » Remove [2x]
4. Roof Console (3) » Remove
5. Disconnect the electrical connectors.

Roof Console Replacement — figure 2

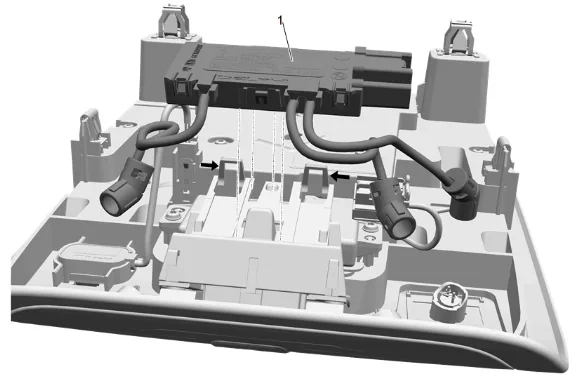

6. {with UTV} Reposition the content theft deterrent sensor: 6.1. Release the retaining tabs. 6.2. Content Theft Deterrent Sensor (1) » Reposition

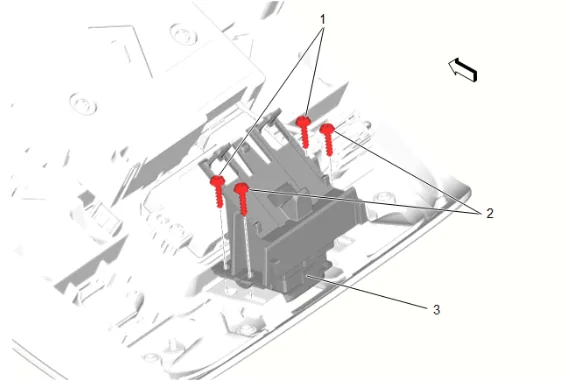

Roof Console Replacement — figure 3

7. Roof Console Bracket Bolt (1) » Remove [2x]
8. Roof Console Bracket Bolt (2) » Remove [2x]
9. Theft Intrusion Bracket (3) » Reposition

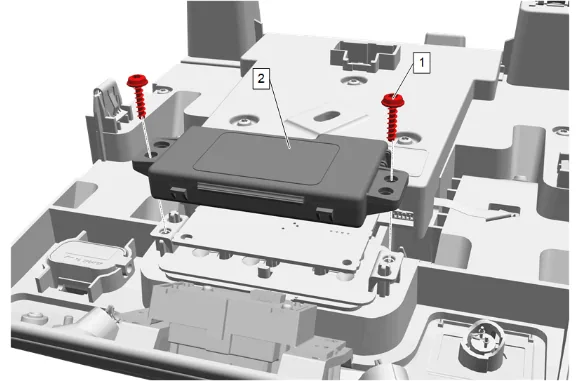

Roof Console Replacement — figure 4

10. Disconnect the electrical connector.
11. Garage Door Opener Transmitter Bolt (1) » Remove [2x]
12. Garage Door Opener Transmitter (2) » Remove

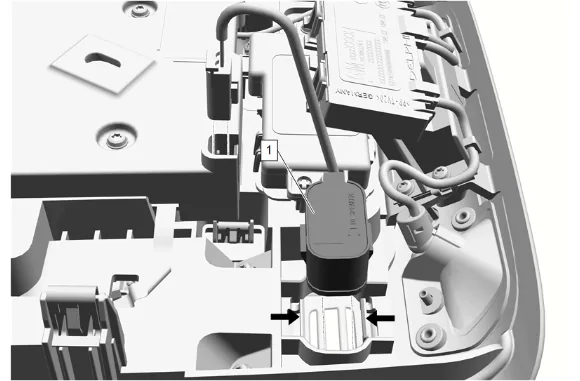

Roof Console Replacement — figure 5

13. Disconnect the electrical connector.

14. Release the retaining tabs.

15. Mobile Telephone Microphone (1) » Remove Installation Procedure

16. Mobile Telephone Microphone (1) » Install

17. Secure the retaining tabs.

18. Connect the electrical connector.

19. Garage Door Opener Transmitter (2) » Install

Caution

Refer to Fastener Caution.

5. Garage Door Opener Transmitter Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Connect the electrical connectors.

7. Theft Intrusion Bracket (3) » Install

8. Roof Console Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications

9. Roof Console Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

10. {with UTV} Install the content theft deterrent sensor: 10.1. Content Theft Deterrent Sensor (1) » Install 10.2. Secure the retaining tabs.

11. Connect the electrical connectors.

12. Roof Console (3) » Install

13. Roof Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

14. Roof Console Opening Trim Plate (1) » Install
