Heater and Air Conditioning User Interface Control Replacement (with D07)

Heater and Air Conditioning User Interface Control Replacement (with D07) Removal Procedure

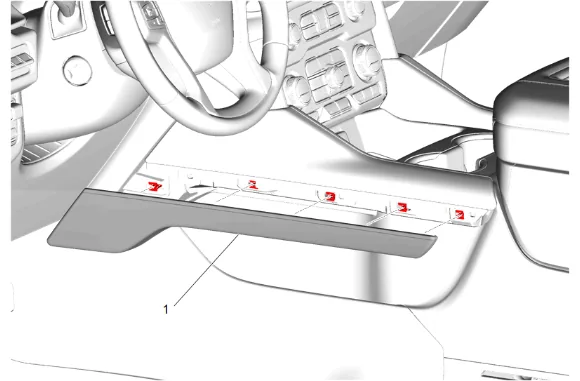

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

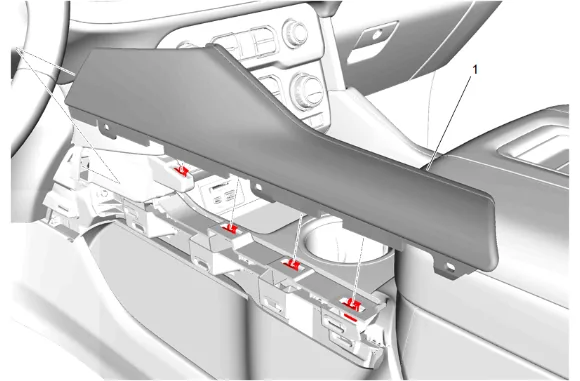

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

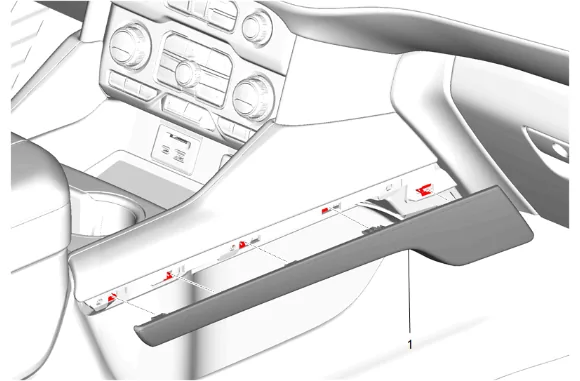

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Front Floor Console Lower Applique (1) » Remove

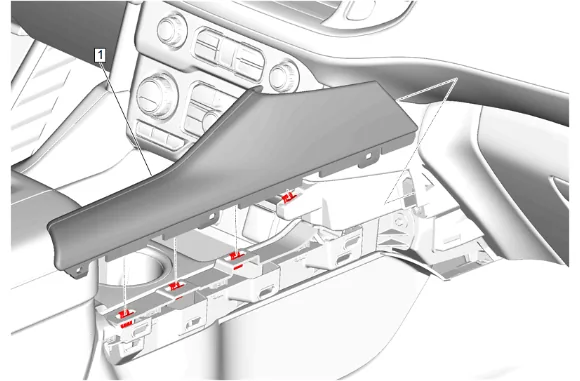

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Front Floor Console Applique (1) » Remove

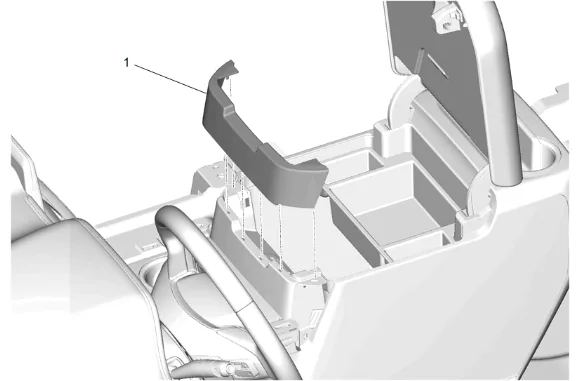

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 5

9. Using a suitable plastic trim tool, release the retaining tabs.
10. Front Floor Rear Console Side Trim Panel (1) » Remove

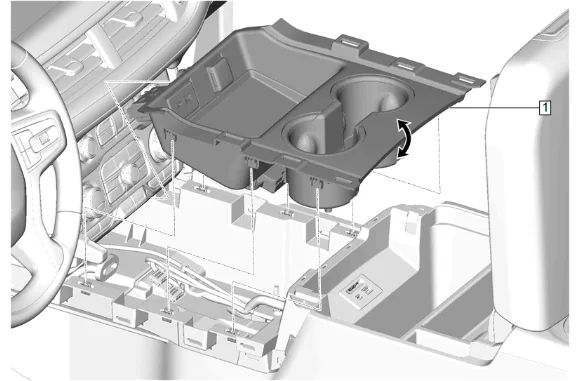

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 6

11. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
12. Disconnect the electrical connectors.
13. Front Floor Console Cup Holder Trim Plate (1) » Remove

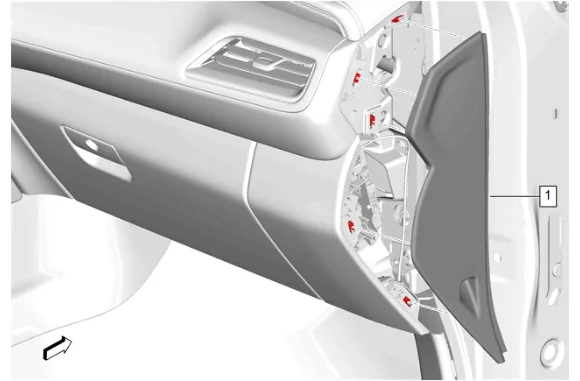

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

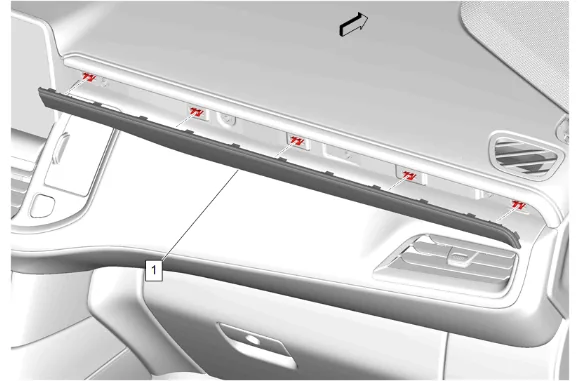

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 8

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Trim Plate Applique (1) » Remove

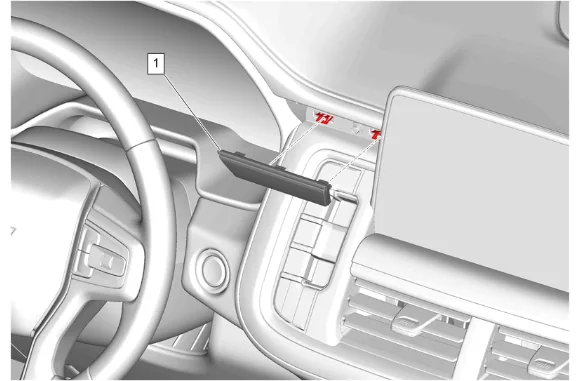

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 9

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Instrument Panel Center Trim Plate Applique (1) » Remove

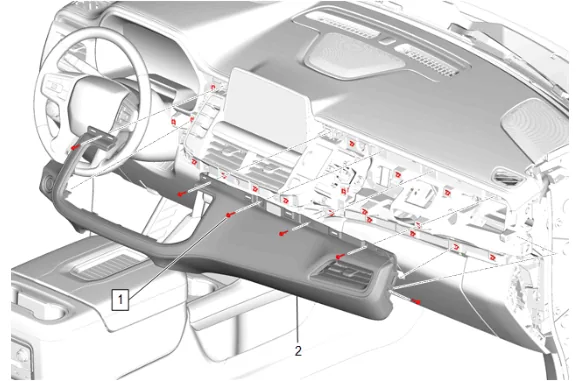

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 10

20. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
21. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

22. Instrument Panel Trim Pad (2) » Remove
23. Disconnect the electrical connector.

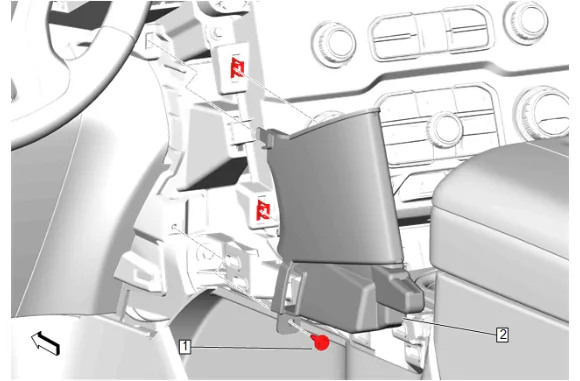

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 11

24. Instrument Panel Lower Trim Panel Bolt (1) » Remove
25. Using a flat-bladed plastic trim tool, release the retaining clips.
26. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

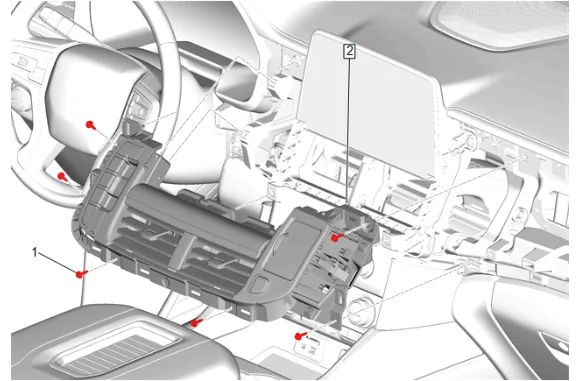

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 12

27. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
28. Instrument Panel Transmission Shift Opening Cover (2) » Remove
29. Disconnect the electrical connectors.

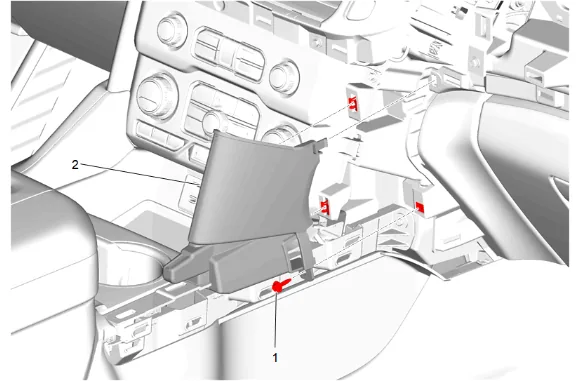

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 13

30. Instrument Panel Lower Trim Panel Bolt (1) » Remove
31. Using a flat-bladed plastic trim tool, release the retaining clips.
32. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

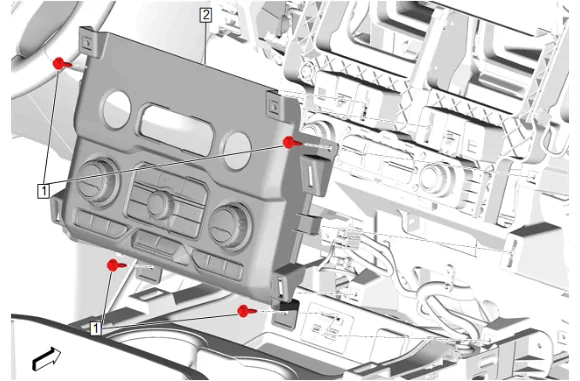

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 14

33. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]

Note

Use a plastic trim tool if necessary.

34. Instrument Panel Accessory Bezel (2) » Remove
35. Disconnect the electrical connectors.

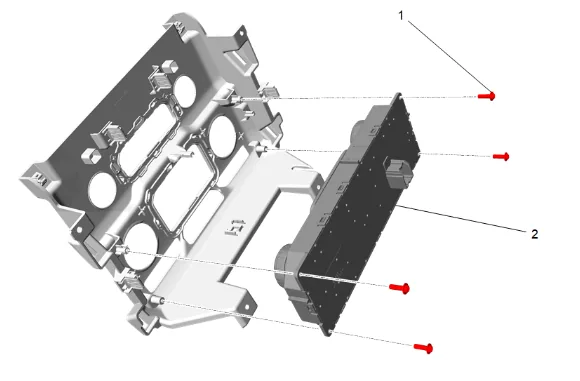

Heater and Air Conditioning User Interface Control Replacement (with D07) — figure 15

36. Heater and Air Conditioning User Interface Control Bolt (1) » Remove [4x]

37. Heater and Air Conditioning User Interface Control (2) » Remove Installation Procedure

38. Heater and Air Conditioning User Interface Control (2) » Install

Caution

Refer to Fastener Caution.

2. Heater and Air Conditioning User Interface Control Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Connect the electrical connectors.

4. Instrument Panel Accessory Bezel (2) » Install

5. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

6. Instrument Panel Lower Center Trim Plate Applique (2) » Install

7. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

8. Connect the electrical connectors.

9. Instrument Panel Transmission Shift Opening Cover (2) » Install

10. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

11. Instrument Panel Lower Center Trim Plate Applique (2) » Install

12. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

13. Connect the electrical connector.

14. Instrument Panel Trim Pad (2) » Install

15. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

16. Instrument Panel Center Trim Plate Applique (1) » Install

17. Instrument Panel Trim Plate Applique (1) » Install

18. Instrument Panel Fuse Block Access Hole Cover (1) » Install

19. Connect the electrical connectors.

20. Front Floor Console Cup Holder Trim Plate (1) » Install

21. Front Floor Rear Console Side Trim Panel (1) » Install

22. Front Floor Console Applique (1) » Install

23. Front Floor Console Lower Applique (1) » Install

24. Front Floor Console Applique (1) » Install

25. Front Floor Console Lower Applique (1) » Install
