Liftgate Replacement (with TC2)

Liftgate Replacement (with TC2) — figure 1
Liftgate Replacement (with TC2) — figure 1

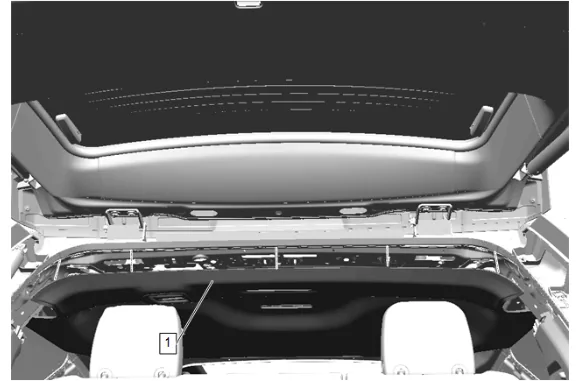

  1. Lower the headlining trim panel (1) enough to gain access to the liftgate electrical connectors and washer hose.
Liftgate Replacement (with TC2) — figure 2
Liftgate Replacement (with TC2) — figure 2

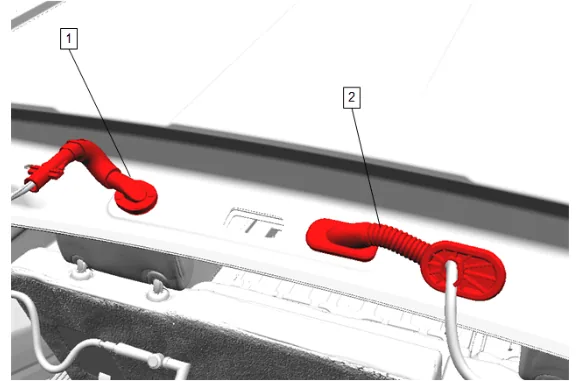

  1. Disconnect the washer hose and electrical connector and retainers..
  2. Washer Hose Grommet (1) » Remove
  3. Liftgate Wiring Harness Grommet (2) » Remove
Liftgate Replacement (with TC2) — figure 3
Liftgate Replacement (with TC2) — figure 3

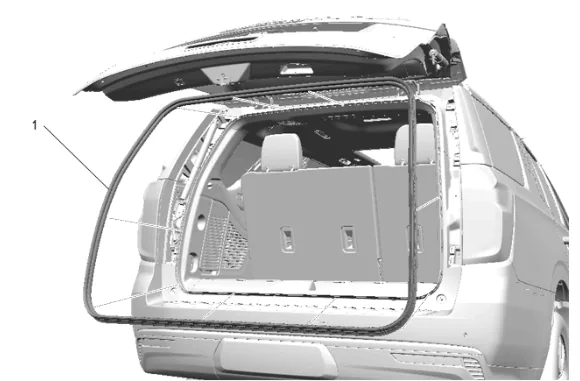

  1. Liftgate Weatherstrip (1) » Reposition
Liftgate Replacement (with TC2) — figure 4
Liftgate Replacement (with TC2) — figure 4

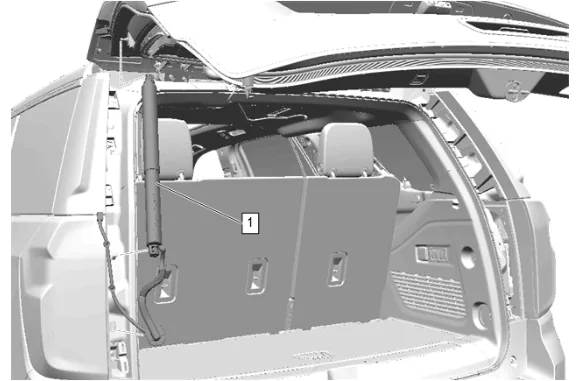

  1. Remove the 2 metal clips at the ends of the liftgate power assist actuator (1).
  2. Liftgate Power Assist Actuator (1) » Reposition
Liftgate Replacement (with TC2) — figure 5
Liftgate Replacement (with TC2) — figure 5

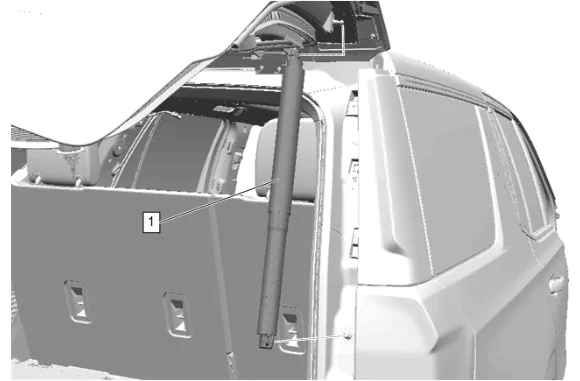

  1. Release the 2 metal clips at each end of the liftgate strut (1).
  2. Liftgate Strut (1) » Remove
Liftgate Replacement (with TC2) — figure 6
Liftgate Replacement (with TC2) — figure 6

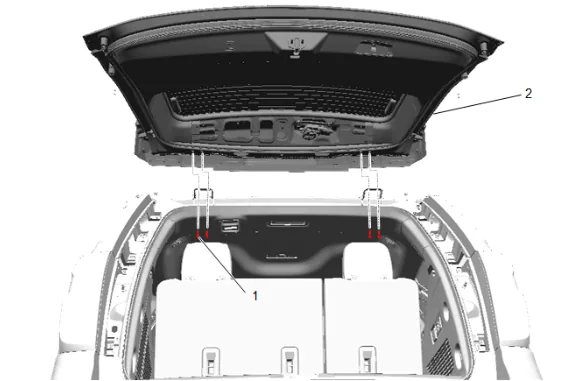

  1. Liftgate Hinge Bolt (1) » Remove [4x]

  2. With the aid of an assistant, remove the liftgate. (2)

  3. Transfer components as necessary. Installation Procedure

  4. With the aid of an assistant, install the liftgate. (2)

  1. Liftgate Hinge Bolt (1) » Install and tighten [4x] — Fastener Specifications
  1. Liftgate Power Assist Actuator (1) » Install
  2. Install the 2 metal clips to each end of the liftgate power assist actuator (1).

  1. Liftgate Strut (1) » Install

  2. Install the 2 metal clips at each end of the liftgate strut (1).

  3. Connect the washer hose and electrical connector and retainers..

  4. Liftgate Wiring Harness Grommet (2) » Install

  5. Washer Hose Grommet (1) » Install

  6. Liftgate Weatherstrip (1) » Install
