Inside Rearview Mirror Replacement

Warning

Refer to Glass and Sheet Metal Handling Warning. Removal Procedure

Inside Rearview Mirror Replacement — figure 1

Warning

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

1. Insert a suitable flat-bladed plastic trim tool between the windshield multifunction sensor mount bracket cover insert (1) and windshield multifunction sensor mount bracket cover (2).
2. Separate the windshield multifunction sensor mount bracket cover insert (1) from the windshield multifunction sensor mount bracket cover (2).

Inside Rearview Mirror Replacement — figure 2

3. Windshield Multifunction Sensor Mount Bracket Cover Insert (1) » Remove

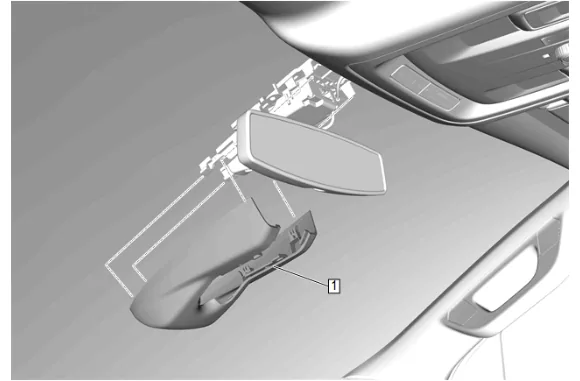

Inside Rearview Mirror Replacement — figure 3

4. Using a suitable plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover (1) to release it from the windshield.
5. Pull downward to remove the windshield multifunction sensor mount bracket cover (1) from the windshield.

Inside Rearview Mirror Replacement — figure 4

6. Disconnect all electrical connectors.

7. Release the retaining tabs.

8. Inside Rearview Mirror Bolt (1) » Remove

9. Inside Rearview Mirror (2) » Remove Installation Procedure

10. Inside Rearview Mirror (2) » Install

Caution

Refer to Fastener Caution.

2. Inside Rearview Mirror Bolt (1) » Install and tighten — Fastener Specifications

3. Secure the retaining tabs.

4. Connect all electrical connectors.

5. Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

6. Windshield Multifunction Sensor Mount Bracket Cover Insert (1) » Install

7. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
