Front Wheel Speed Sensor Replacement - Right Side

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

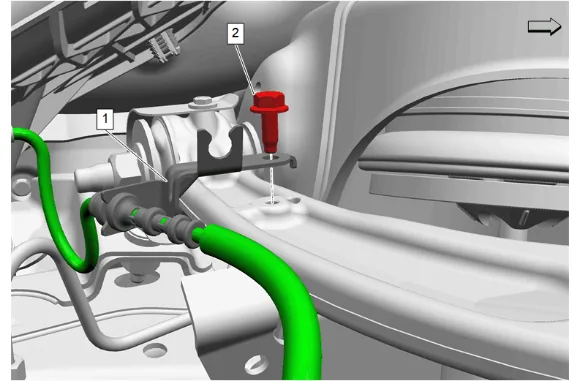

Front Wheel Speed Sensor Bracket Bolt (1) » Remove
Position the wheelhouse liner out of the way to gain access to the front wheel speed sensor electrical connector.

Front Wheel Speed Sensor Retainer (3) » Remove [3x]

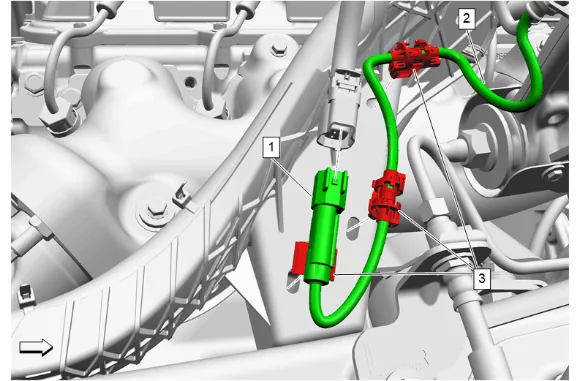

Disconnect the electrical connector. (1)
Front Wheel Speed Sensor Wiring Harness (2) » Remove Installation Procedure
Position the wheelhouse liner out of the way to gain access to the front wheel speed sensor electrical connector.
Front Wheel Speed Sensor Wiring Harness (2) » Install
Connect the electrical connector. (1)
Front Wheel Speed Sensor Retainer (3) » Install [3x]

Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

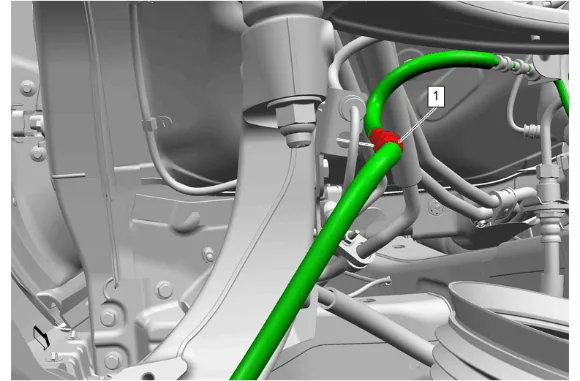

{ If equipped } Wiring Harness (1) @ Front Wheel Speed Sensor Bracket » Install

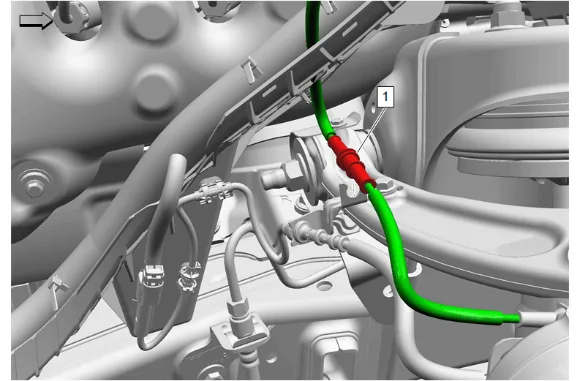

Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Install
Front Wheel Speed Sensor Bracket (3) » Install
Front Wheel Speed Sensor Bracket Bolt (4) » Install and tighten — Fastener Specifications
Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (2) and mounting pad on the front steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

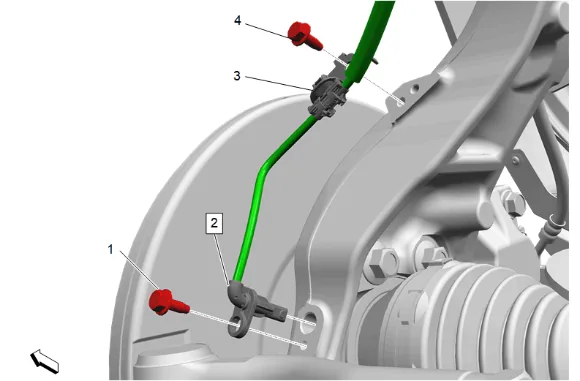

Front Wheel Speed Sensor (2) » Install
Front Wheel Speed Sensor Bolt (1) » Install and tighten — Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
Verify the repair is complete. Diagnostic Repair Verification
