Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4494736 Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble Single Use Fasteners and Components Reaction Carrier Hub Retaining Ring Output Carrier Internal Gear Retaining Ring

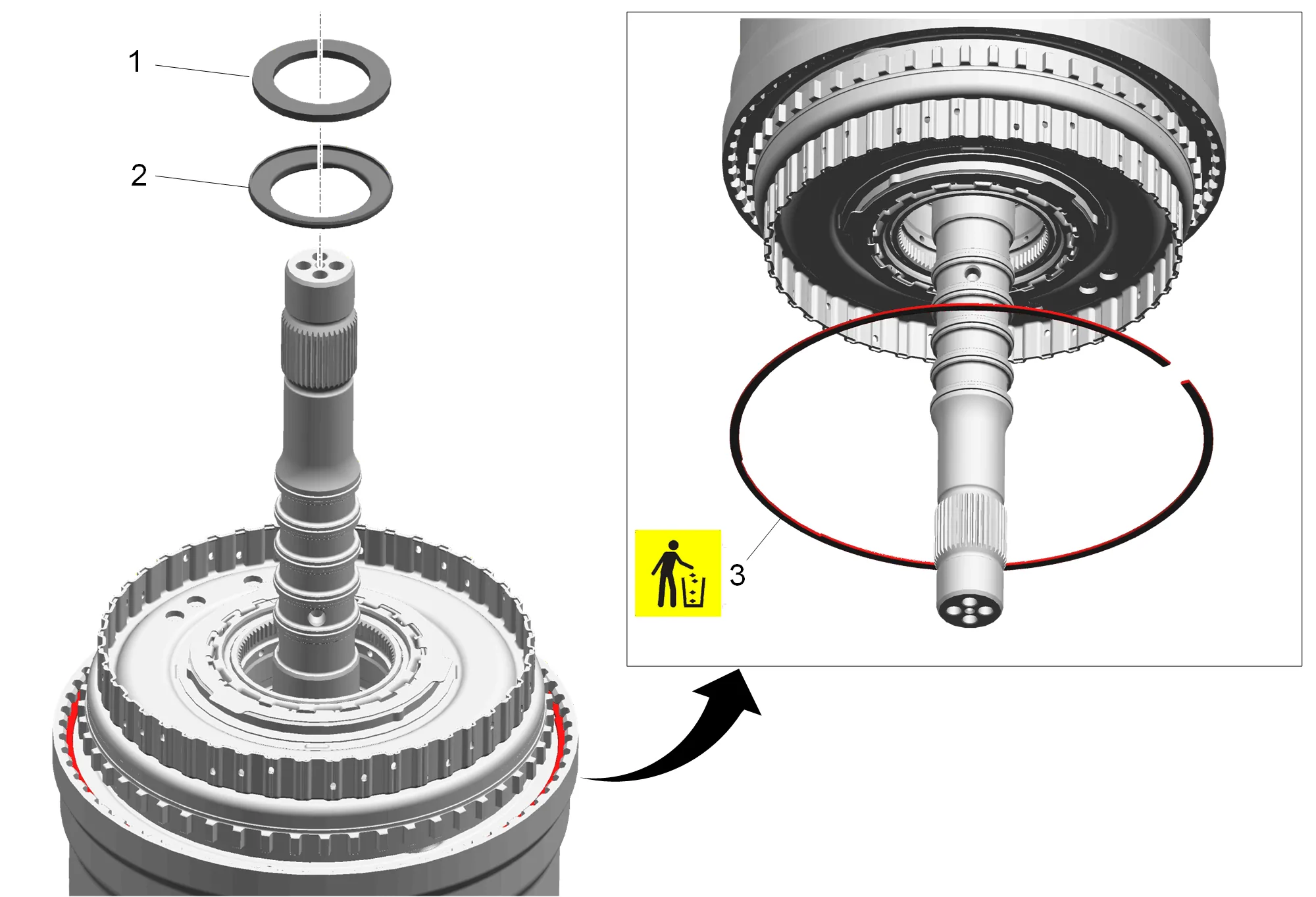

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 1
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 1
  1. Transmission Case Washer (1) » Remove
  2. Reaction Sun Gear Thrust Bearing (2) » Remove
  3. Flip the assembly over.
  1. Reaction Carrier Hub Retaining Ring (3) » Remove and DISCARD

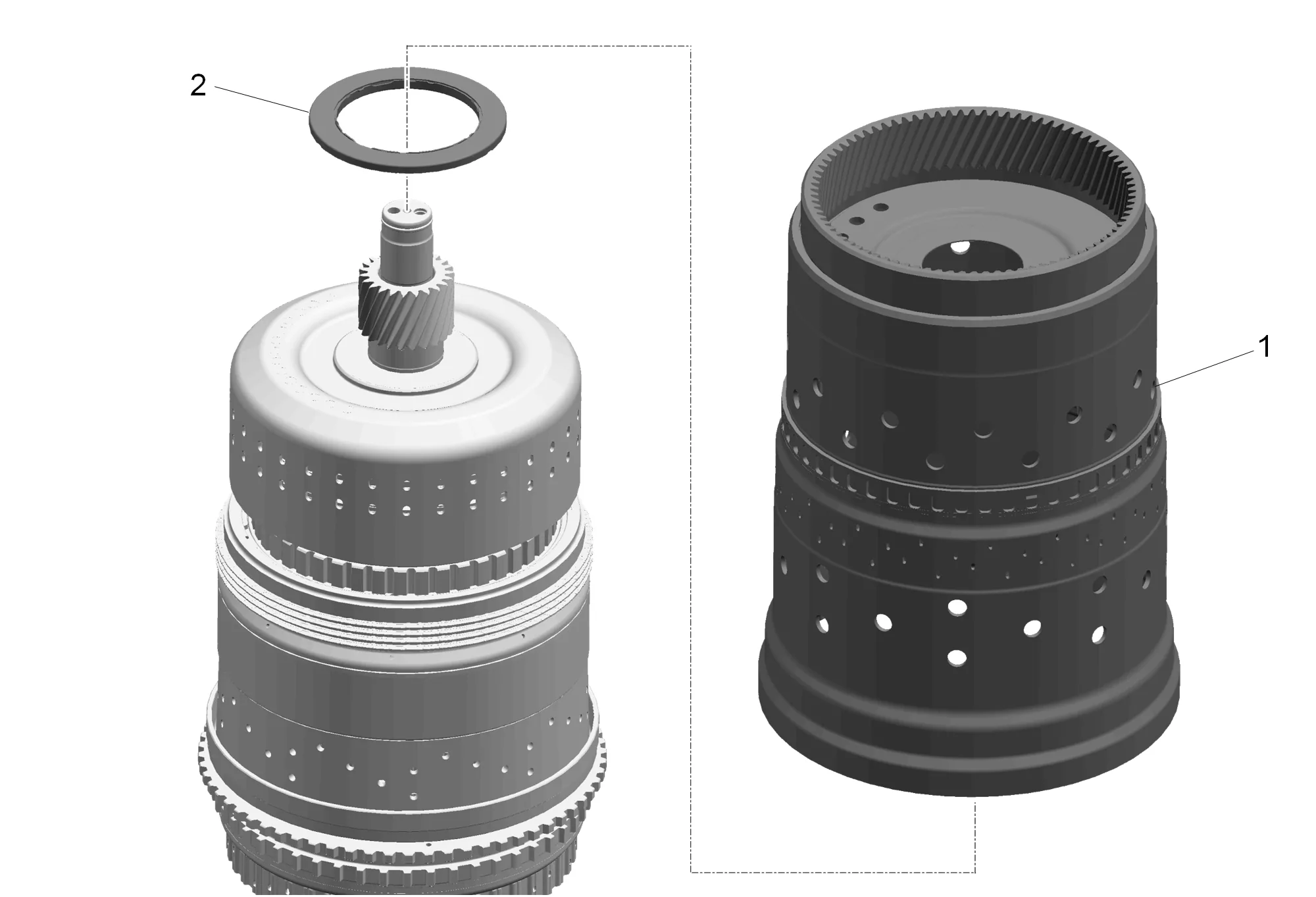

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 2
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 2
  1. Output Carrier Internal Gear Transfer Shell (1) » Remove
  2. Output Carrier Thrust Bearing Assembly (2) » Remove

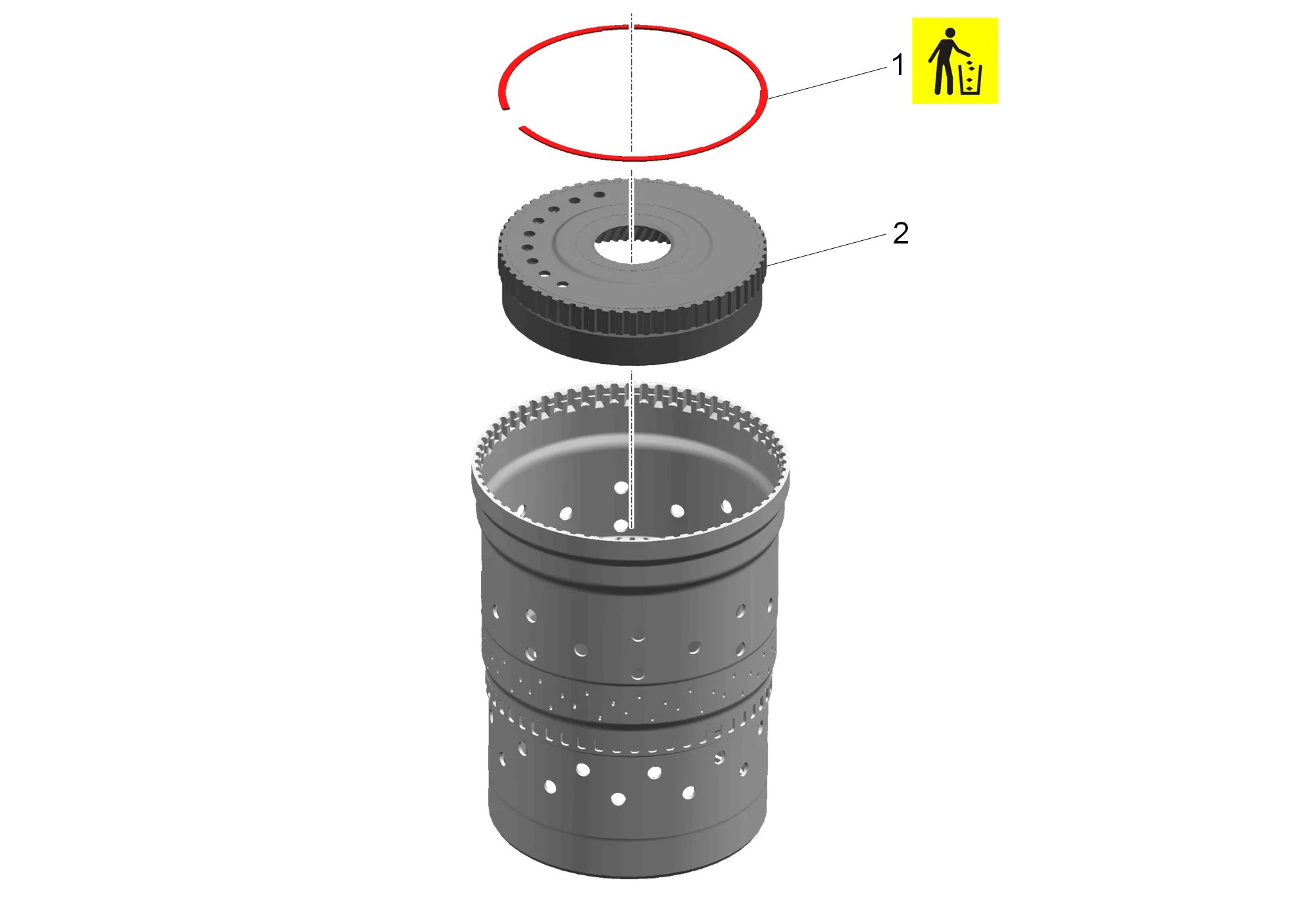

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 3
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 3
  1. Output Carrier Internal Gear Retaining Ring (1) » Remove and DISCARD
  2. Output Carrier Internal Gear (2) » Remove

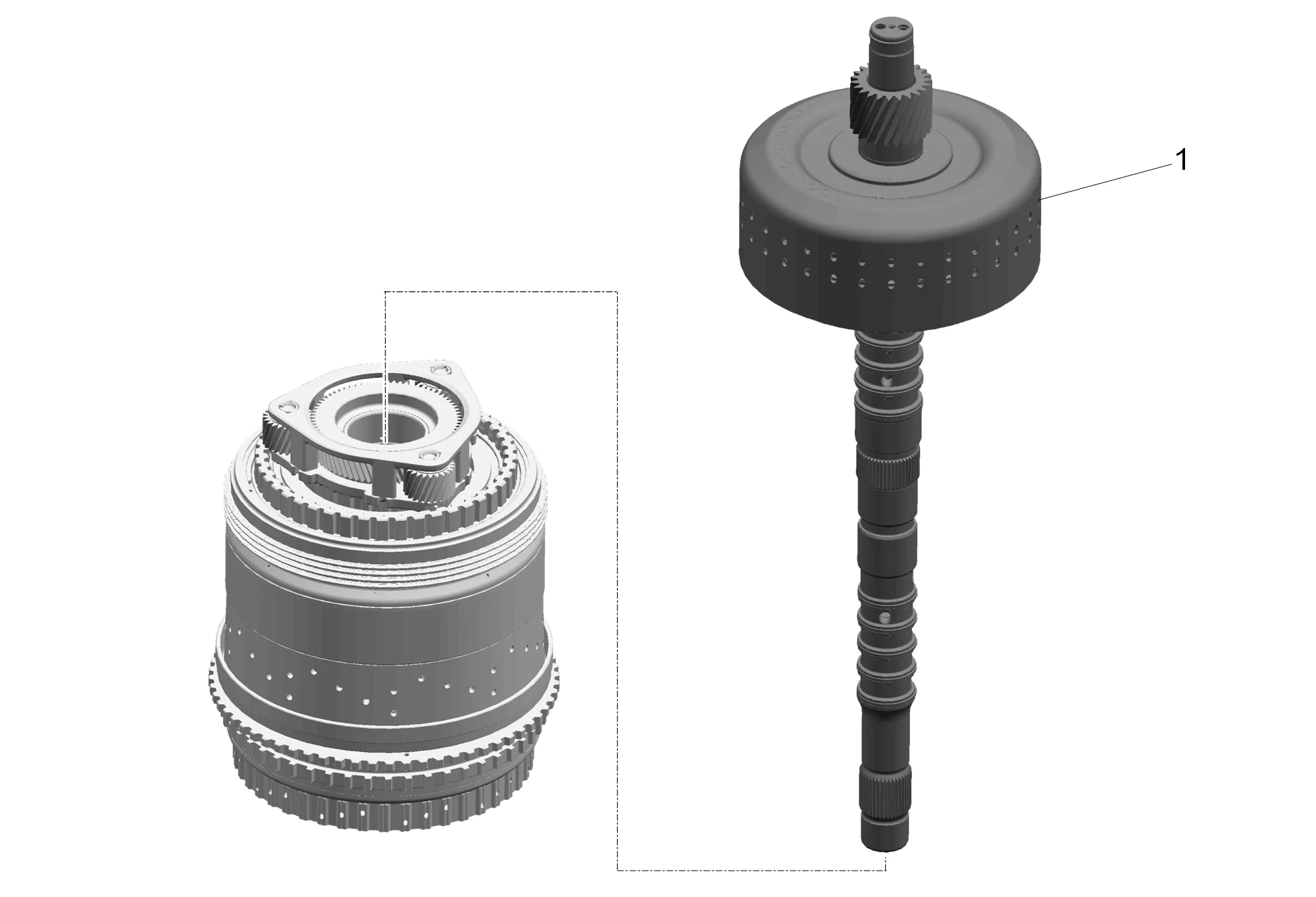

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 4
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 4
  1. Main Shaft (1) » Remove

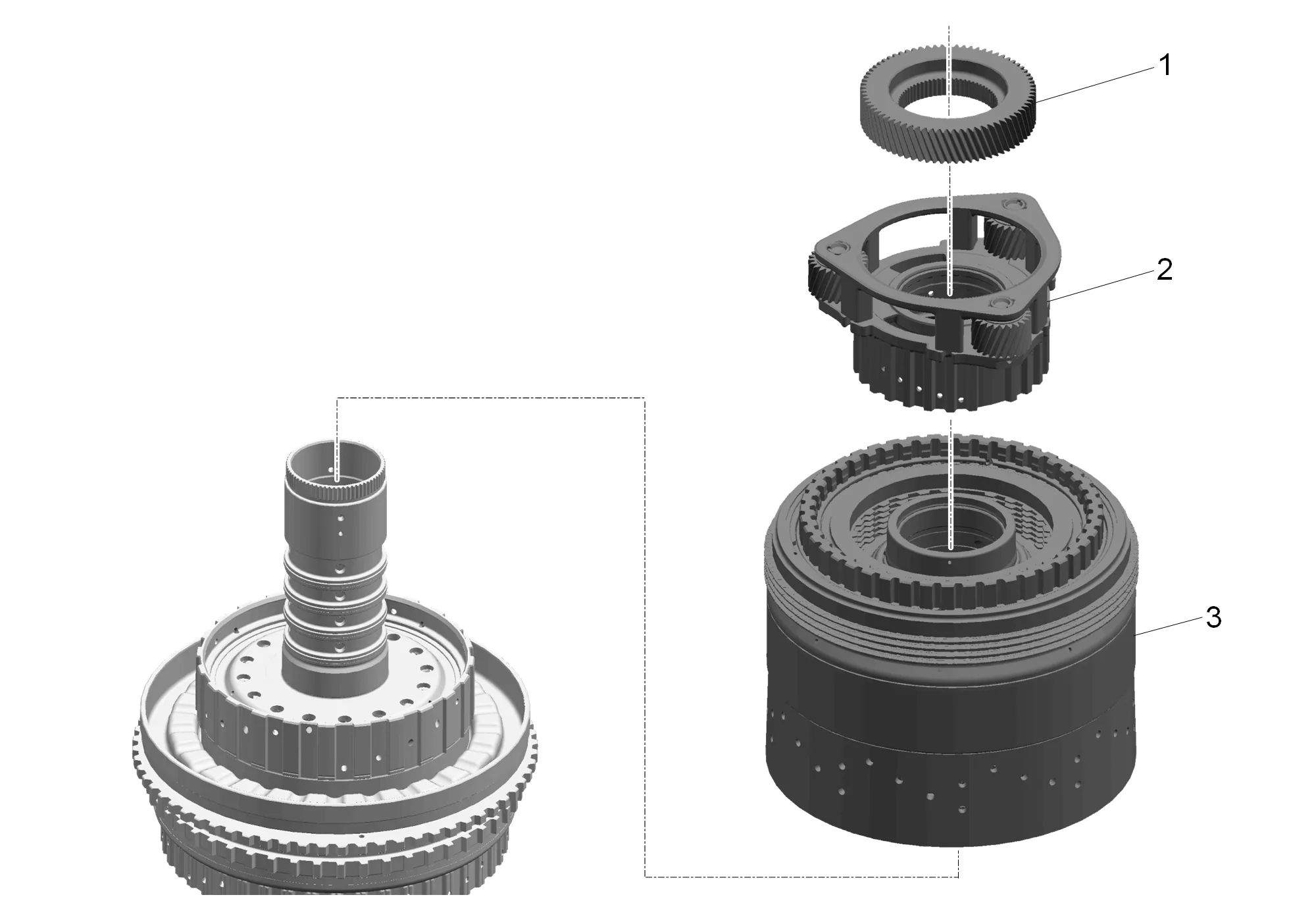

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 5
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 5
  1. Direct Overdrive Sun Gear (1) » Remove
  2. Direct Overdrive Carrier (2) » Remove
  3. Triple Clutch Housing (3) » Remove

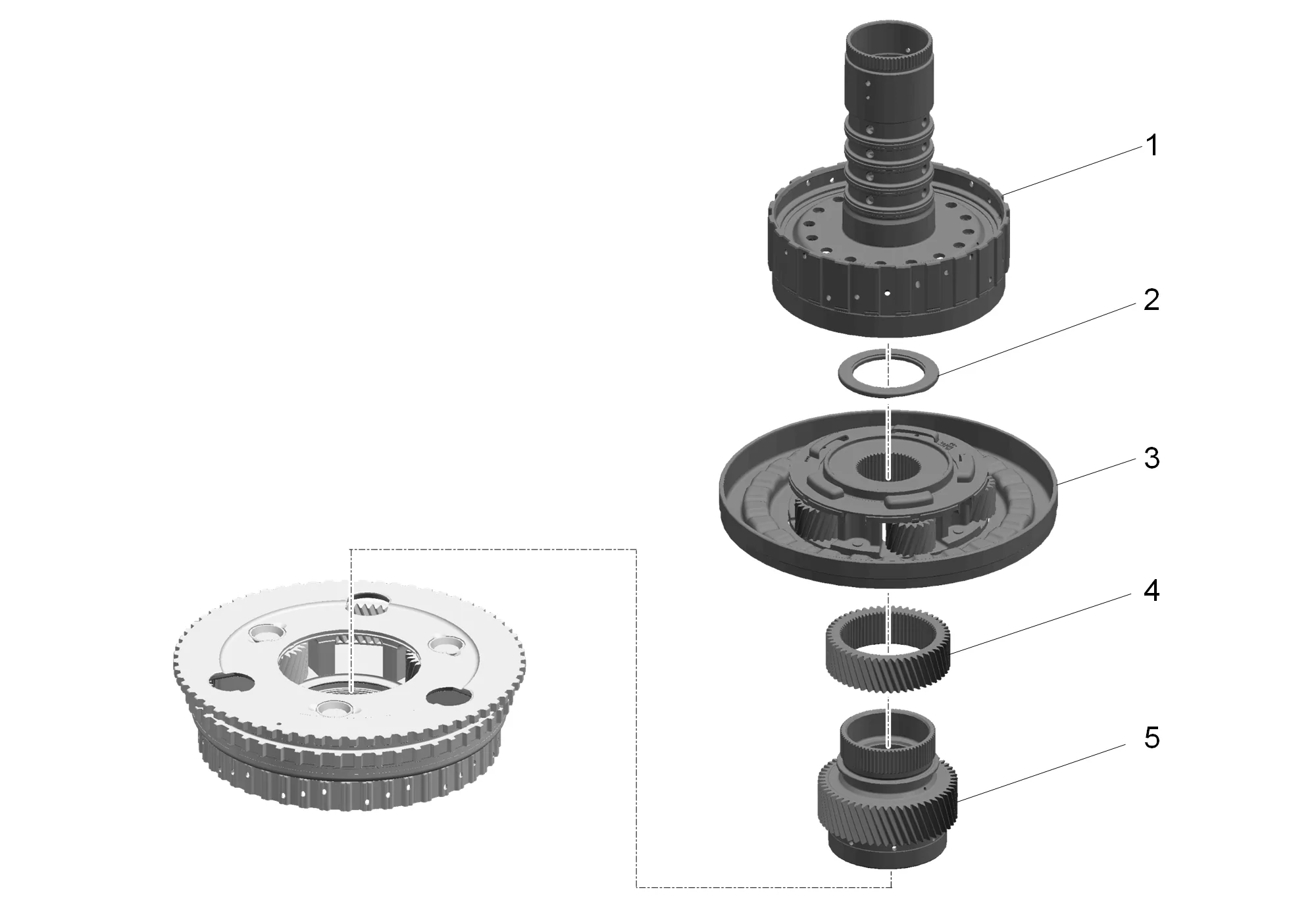

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 6
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 6
  1. Direct Overdrive Sun Gear Shaft (1) » Remove
  2. Input Sun Gear Thrust Bearing (2) » Remove
  3. Input Carrier Assembly (3) » Remove
  4. Input Sun Gear (4) » Remove
  5. Reaction Sun Gear Assembly (5) » Remove

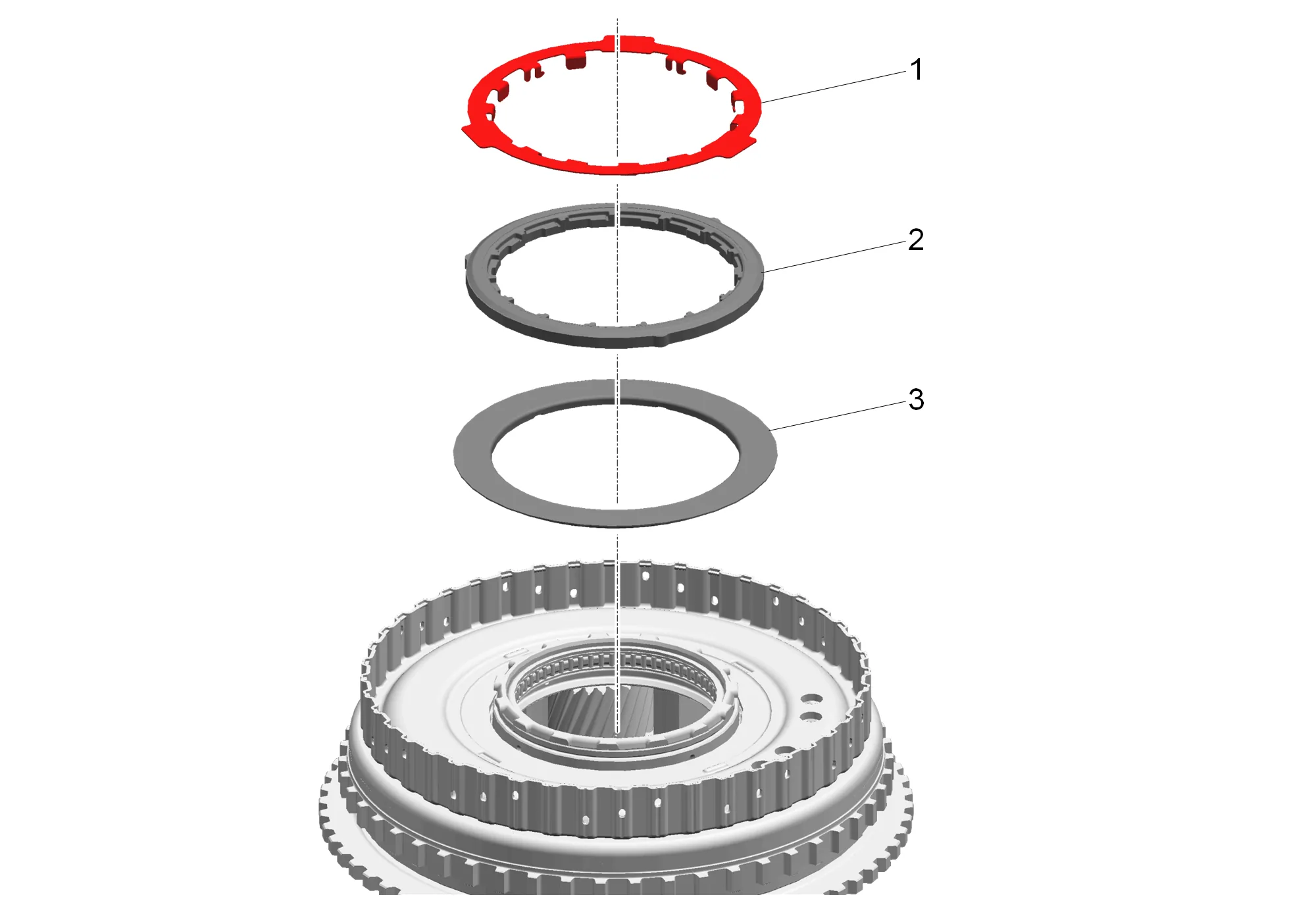

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 7
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 7
  1. Reaction Internal Gear Spacer Retainer (1) » Remove
  2. Rotate the Reaction Internal Gear Spacer (2) clockwise, then remove.
  3. Reaction Internal Gear Spacer (2) » Remove
  4. Reaction Internal Gear Thrust Bearing (3) » Remove

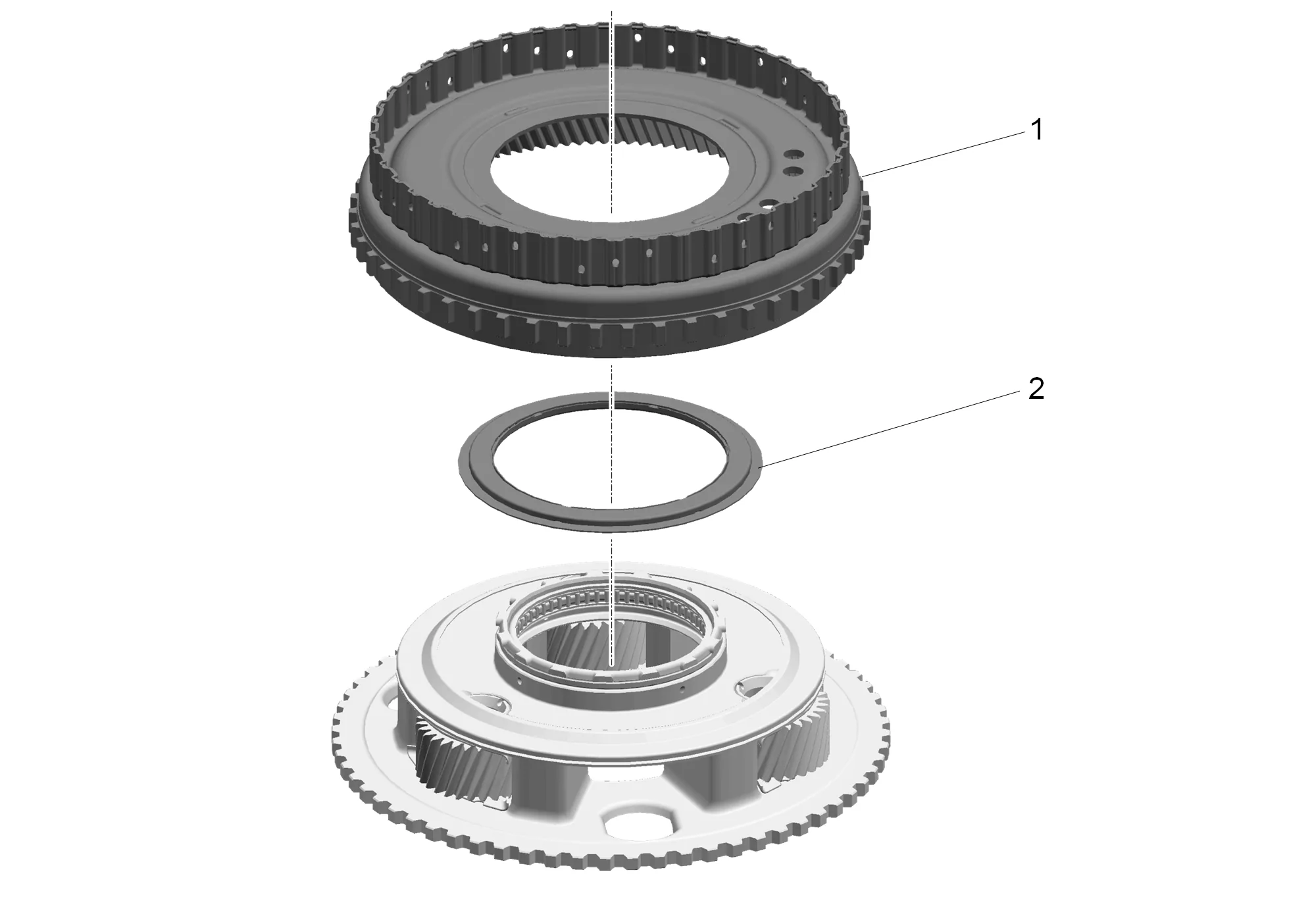

Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 8
Rotating Clutch, Gear, and Shaft Shell Assembly Disassemble — figure 8
  1. Reaction Internal Gear (1) » Remove
  2. Reaction Internal Gear Thrust Bearing (2) » Remove
