Rear Seat Latch Cable Replacement - Head Restraint Release (60 Percent)

Rear Seat Latch Cable Replacement - Head Restraint Release (60 Percent) Removal Procedure

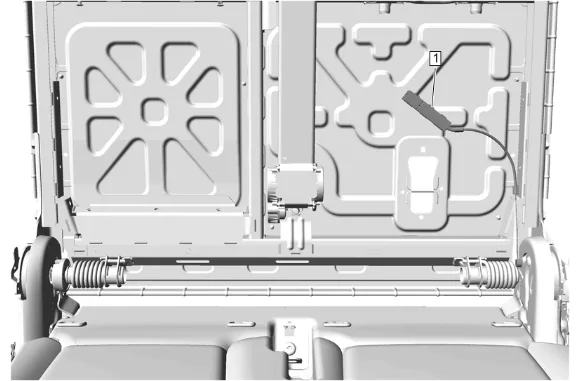

Rear Seat Latch Cable Replacement - Head Restraint Release (60 Percent) — figure 1

1. Rear Seat Back Cover and Pad (1) » Reposition — Rear Seat Back Cover and Pad Removal and Installation

Rear Seat Latch Cable Replacement - Head Restraint Release (60 Percent) — figure 2

2. Using a suitable tool, release the seat cable retaining features.

3. Release the cable end from the seat frame.

4. Rear Seat Latch Cable - Head Restraint Release (1) » Remove Installation Procedure

5. Rear Seat Latch Cable - Head Restraint Release (1) » Install

6. Install the cable end into the seat frame.

7. Secure the seat cable retaining features.

8. Rear Seat Back Cover and Pad (1) » Install — Rear Seat Back Cover and Pad Removal and Installation
