Front Floor Console Cup Holder Trim Plate Replacement (DCH)

Front Floor Console Cup Holder Trim Plate Replacement (DCH) Removal Procedure

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

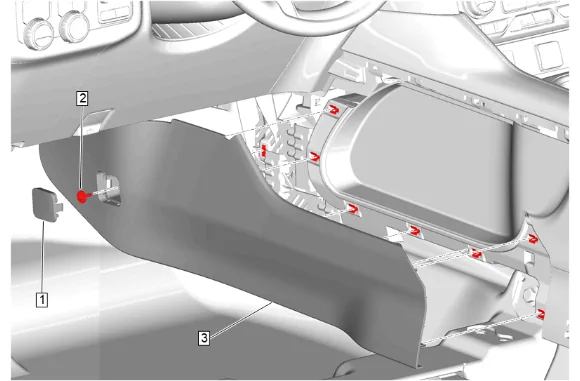

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 3

Note

Use a flat bladed plastic trim tool.

5. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
6. Front Floor Console Extension Bolt (2) » Remove
7. Move the front seat to access the retainers.
8. Front Floor Console Extension Panel (3) » Remove

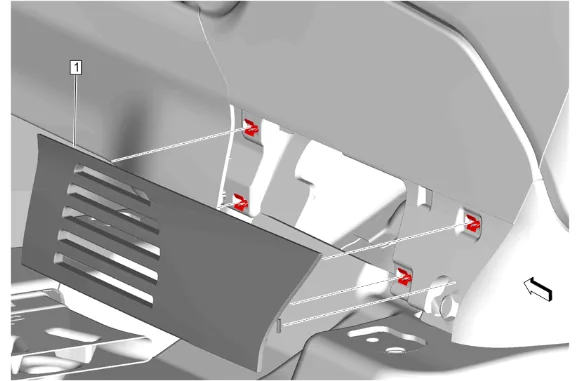

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 4

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 5

Note

You may have to slide the armrest back to better access the retainers.

11. Using a flat-bladed plastic trim tool, release the retaining clips.
12. Front Floor Console Rear Trim Lower Panel (1) » Remove

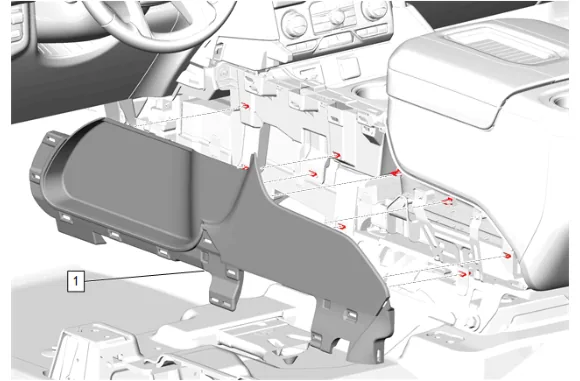

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 6

13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 7

15. Using a flat-bladed plastic trim tool, release the retaining clips.
16. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 8

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Front Floor Console Applique (1) » Remove

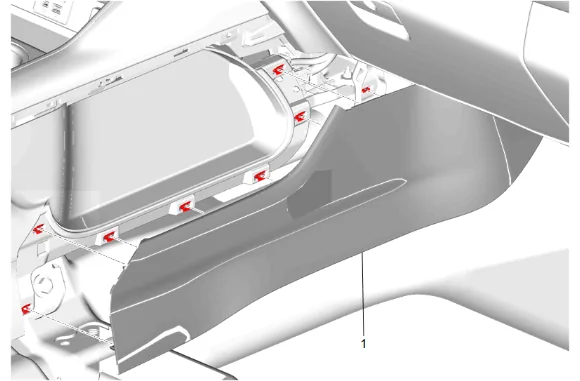

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 9

Note

Use a flat bladed plastic trim tool.

19. Move the front seat to access the retainers.
20. Front Floor Console Extension Panel (1) » Remove

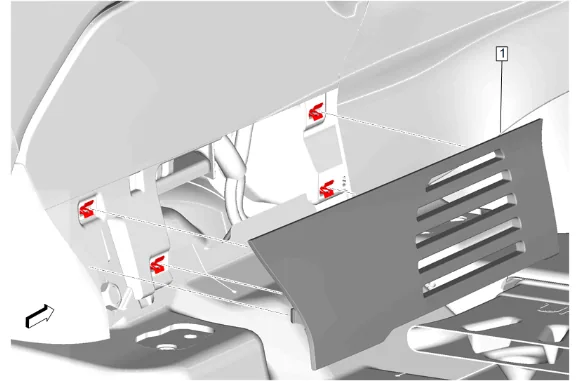

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 10

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Front Floor Console Bolt Access Hole Cover (1) » Remove

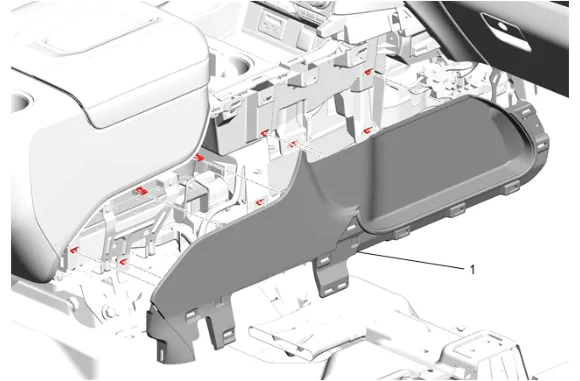

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 11

23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Disconnect and reposition harness as necessary.
25. Front Floor Rear Console Side Trim Panel (1) » Remove

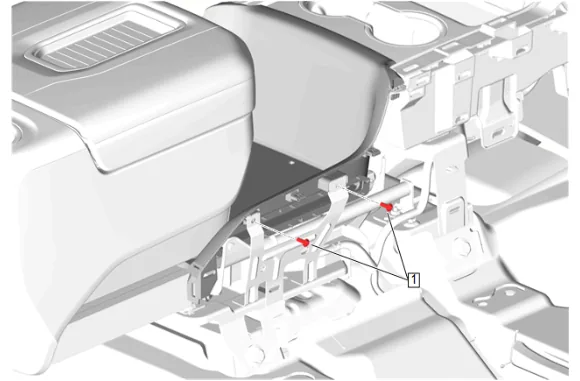

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 12

26. Front Floor Console Storage Tray Bolt (1) » Remove [2x]

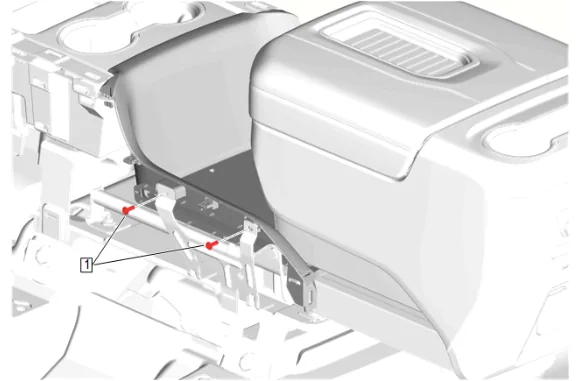

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 13

27. Front Floor Console Storage Tray Bolt (1) » Remove [2x]

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 14

28. Front Floor Console Stowage Tray (1) » Reposition

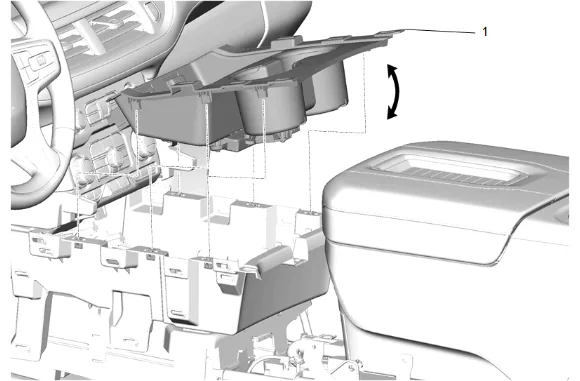

Front Floor Console Cup Holder Trim Plate Replacement (DCH) — figure 15

Note

Some components not shown for graphic clarity.

29. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
30. Disconnect the electrical connectors.
31. Front Floor Console Cup Holder Trim Plate (1) » Remove
32. Transfer components as necessary. Installation Procedure

Note

Some components not shown for graphic clarity.

1. Connect the electrical connectors.

2. Front Floor Console Cup Holder Trim Plate (1) » Install

3. Front Floor Console Stowage Tray (1) » Install

Caution

Refer to Fastener Caution.

4. Front Floor Console Storage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Front Floor Console Storage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Connect and position the wiring harness.

7. Front Floor Rear Console Side Trim Panel (1) » Install

8. Front Floor Console Bolt Access Hole Cover (1) » Install

9. Front Floor Console Extension Panel (1) » Install

10. Front Floor Console Applique (1) » Install

11. Front Floor Console Lower Applique (1) » Install

12. Front Floor Rear Console Side Trim Panel (1) » Install

13. Front Floor Console Rear Trim Lower Panel (1) » Install

14. Front Floor Console Bolt Access Hole Cover (1) » Install

15. Front Floor Console Extension Panel (3) » Install

16. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

17. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

18. Front Floor Console Applique (1) » Install

19. Front Floor Console Lower Applique (1) » Install

20. Return the armrest compartment to the close position.

21. Return the seat to its original position.
