Front Floor Console Stowage Tray Replacement (DCH)

Removal Procedure

Front Floor Console Stowage Tray Replacement (DCH) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Stowage Tray Replacement (DCH) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

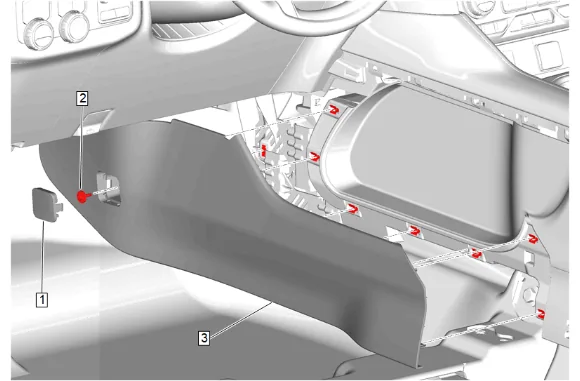

Front Floor Console Stowage Tray Replacement (DCH) — figure 3

Note

Use a flat bladed plastic trim tool.

5. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
6. Front Floor Console Extension Bolt (2) » Remove
7. Move the front seat to access the retainers.
8. Front Floor Console Extension Panel (3) » Remove

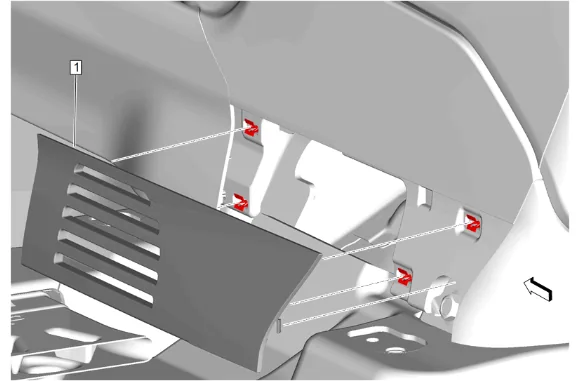

Front Floor Console Stowage Tray Replacement (DCH) — figure 4

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Stowage Tray Replacement (DCH) — figure 5

Note

You may have to slide the armrest back to better access the retainers.

11. Using a flat-bladed plastic trim tool, release the retaining clips.
12. Front Floor Console Rear Trim Lower Panel (1) » Remove

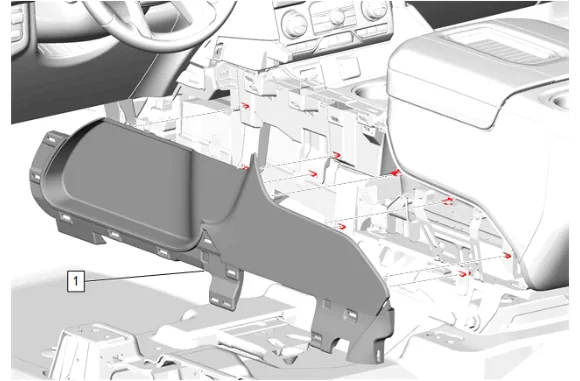

Front Floor Console Stowage Tray Replacement (DCH) — figure 6

13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Stowage Tray Replacement (DCH) — figure 7

15. Using a flat-bladed plastic trim tool, release the retaining clips.
16. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Stowage Tray Replacement (DCH) — figure 8

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Front Floor Console Applique (1) » Remove

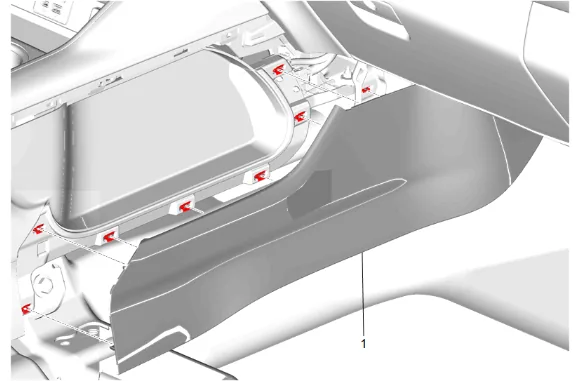

Front Floor Console Stowage Tray Replacement (DCH) — figure 9

Note

Use a flat bladed plastic trim tool.

19. Move the front seat to access the retainers.
20. Front Floor Console Extension Panel (1) » Remove

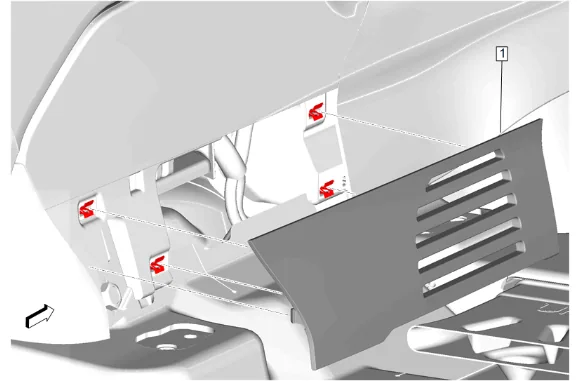

Front Floor Console Stowage Tray Replacement (DCH) — figure 10

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Front Floor Console Bolt Access Hole Cover (1) » Remove

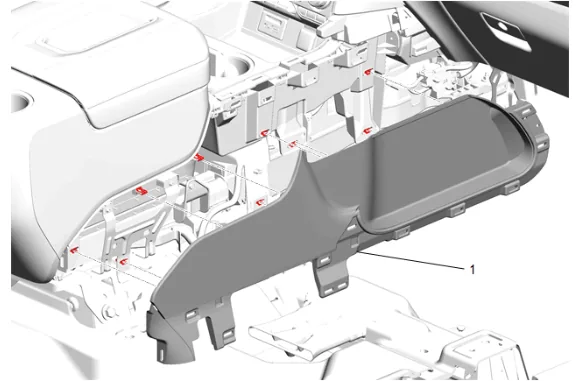

Front Floor Console Stowage Tray Replacement (DCH) — figure 11

23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Disconnect and reposition harness as necessary.
25. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Stowage Tray Replacement (DCH) — figure 12

26. Front Floor Console Rear Cup Holder Liner (1) » Remove
27. Front Floor Console Cup Holder Bolt (2) » Remove
28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Front Floor Console Rear Cup Holder (3) » Remove

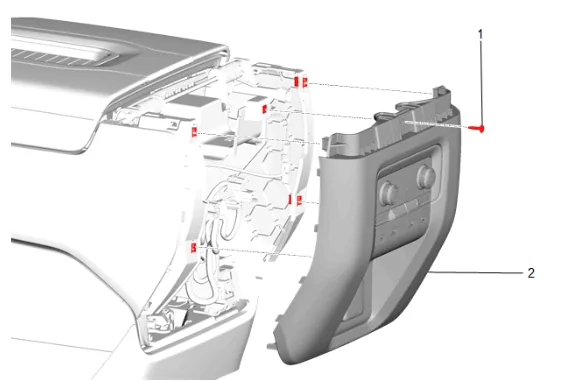

Front Floor Console Stowage Tray Replacement (DCH) — figure 13

30. Front Floor Console Rear Cover Bolt (1) » Remove
31. Using a flat-bladed plastic trim tool, release the retaining clips.
32. Front Floor Console Rear Trim Panel (2) » Reposition

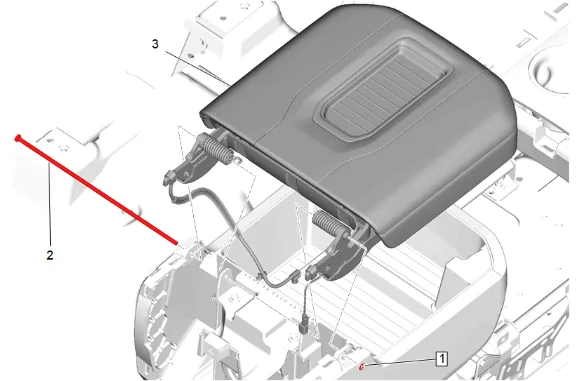

Front Floor Console Stowage Tray Replacement (DCH) — figure 14

Note

Use a suitable tool.

33. Front Floor Console Armrest Hinge Clip (1) » Remove

Warning

The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

34. Front Floor Console Armrest Pivot Pin (2) » Remove
35. Front Floor Console Armrest (3) » Reposition
36. Disconnect the front floor console bin lamp connector.

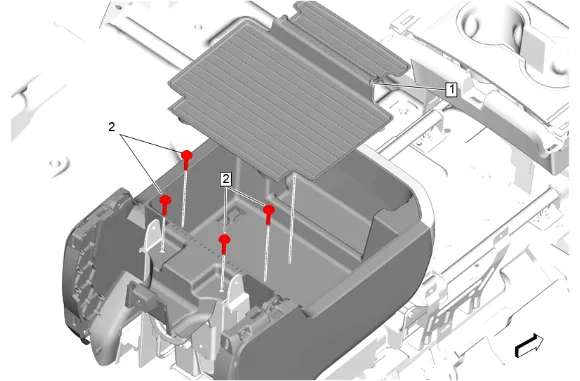

Front Floor Console Stowage Tray Replacement (DCH) — figure 15

Note

Some components not shown for graphic clarity.

37. Front Floor Console Compartment Liner (1) » Remove
38. Front Floor Console Bracket Bolt (2) » Remove [4x]

Front Floor Console Stowage Tray Replacement (DCH) — figure 16

39. Front Floor Console Compartment (1) » Remove

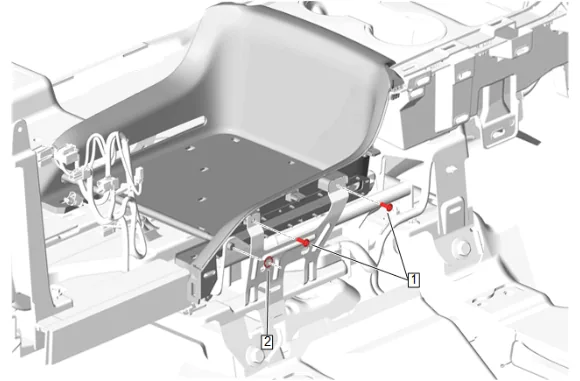

Front Floor Console Stowage Tray Replacement (DCH) — figure 17

40. Front Floor Console Storage Tray Bolt (1) » Remove [2x]

Note

Use a suitable tool.

41. Front Floor Console Armrest Hinge Clip (2) » Remove

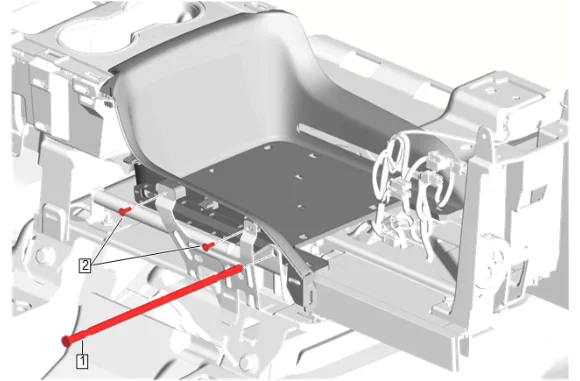

Front Floor Console Stowage Tray Replacement (DCH) — figure 18

42. Front Floor Console Armrest Pivot Pin (1) » Remove
43. Front Floor Console Storage Tray Bolt (2) » Remove [2x]

Front Floor Console Stowage Tray Replacement (DCH) — figure 19

44. Front Floor Console Stowage Tray (1) » Remove Installation Procedure

45. Front Floor Console Stowage Tray (1) » Install

46. Front Floor Console Armrest Pivot Pin (1) » Install

Caution

Refer to Fastener Caution.

3. Front Floor Console Storage Tray Bolt (2) » Install and tighten [2x] — Fastener Specifications

4. Front Floor Console Storage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Front Floor Console Armrest Hinge Clip (2) » Install

6. Front Floor Console Compartment (1) » Install

Note

Some components not shown for graphic clarity.

7. Front Floor Console Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

8. Front Floor Console Compartment Liner (1) » Install

9. Front Floor Console Armrest (3) » Install

10. Front Floor Console Armrest Pivot Pin (2) » Install

11. Front Floor Console Armrest Hinge Clip (1) » Install

12. Connect the front floor console bin lamp connector.

13. Front Floor Console Rear Trim Panel (2) » Install

14. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

15. Front Floor Console Rear Cup Holder (3) » Install

16. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

17. Front Floor Console Rear Cup Holder Liner (1) » Install

18. Connect and position the wiring harness.

19. Front Floor Rear Console Side Trim Panel (1) » Install

20. Front Floor Console Bolt Access Hole Cover (1) » Install

21. Front Floor Console Extension Panel (1) » Install

22. Front Floor Console Applique (1) » Install

23. Front Floor Console Lower Applique (1) » Install

24. Front Floor Rear Console Side Trim Panel (1) » Install

25. Front Floor Console Rear Trim Lower Panel (1) » Install

26. Front Floor Console Bolt Access Hole Cover (1) » Install

27. Front Floor Console Extension Panel (3) » Install

28. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

29. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

30. Front Floor Console Applique (1) » Install

31. Front Floor Console Lower Applique (1) » Install

32. Return the armrest compartment to the close position.

33. Return the seat to its original position.
