Fuel Delivery System and Components

Fuel Delivery System and Components — figure 1

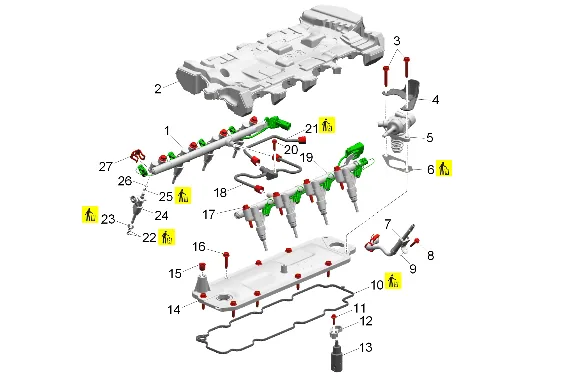

(1) Fuel Injection Fuel Rail - Right Side (2) Fuel Pump Insulator (3) Fuel Pump Bolt [2x] (4) Fuel Pump Cover (5) Fuel Pump (6) Fuel Pump Gasket (7) Fuel Feed Pipe (8) Fuel Feed Pipe Bolt (9) Retaining Ring (10) Engine Block Valley Cover Gasket (11) Valve Lifter Follower Guide Bolt (12) Valve Lifter Follower Guide (13) Valve Lifter Follower (14) Engine Block Valley Cover (15) Drive Motor Oil Filler Hole Plug (16) Engine Block Valley Cover Bolt [9x] (17) Fuel Injection Fuel Rail Bolt [8x] (18) Fuel Feed Intermediate Pipe (19) Fuel Injection Fuel Rail - Left Side (20) Fuel Feed Intermediate Pipe Bolt (21) Fuel Feed Intermediate Pipe (22) Combustion Fuel Injector Seal [16x] (23) Fuel Injector Seal [8x] (24) Direct Fuel Injector [8x] (25) Fuel Injector Seal Spacer [8x] (26) Fuel Injection Fuel Rail Seal [8x] (27) Direct Fuel Injector Hold Down Clamp [8x]
