Front Floor Courtesy Lamp Replacement - Right Side

Removal Procedure

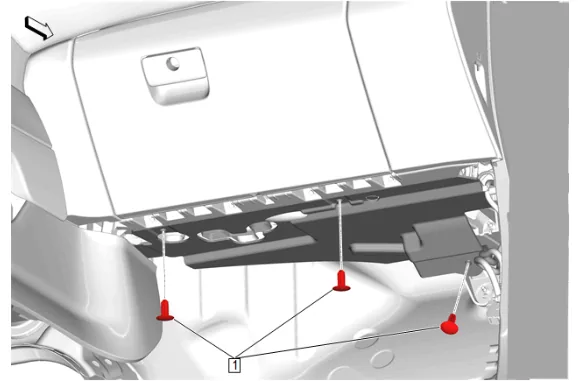

Front Floor Courtesy Lamp Replacement - Right Side — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

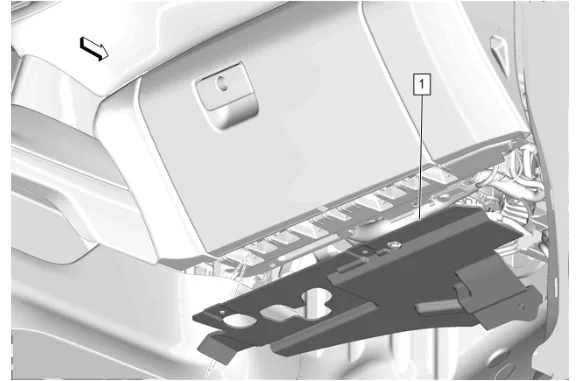

Front Floor Courtesy Lamp Replacement - Right Side — figure 2

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove
3. Disconnect the electrical connector.

Front Floor Courtesy Lamp Replacement - Right Side — figure 3

4. Release the retaining tabs.

5. Front Floor Courtesy Lamp (1) » Remove Installation Procedure

6. Front Floor Courtesy Lamp (1) » Install

7. Secure the retaining tabs.

8. Connect the electrical connector.

9. Instrument Panel Lower Trim Panel Insulator (1) » Install

10. Instrument Panel Lower Insulator Retainer (1) » Install [3x]
