Back Body Opening Side Molding Replacement (Manual Liftgate)

Back Body Opening Side Molding Replacement (Manual Liftgate)

  1. Open and support the liftgate.
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 1
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 1

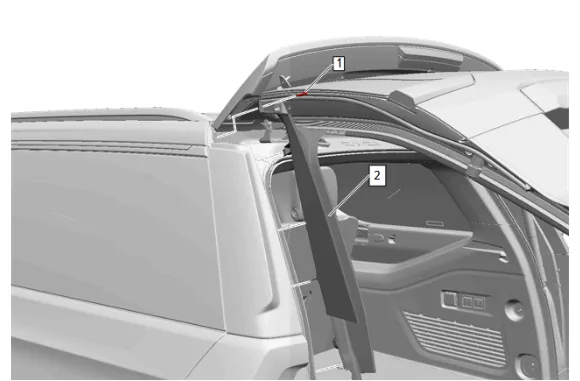

  1. Using the appropriate tool, release the tabs on the back body opening side center gutter (1) and remove.
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 2
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 2

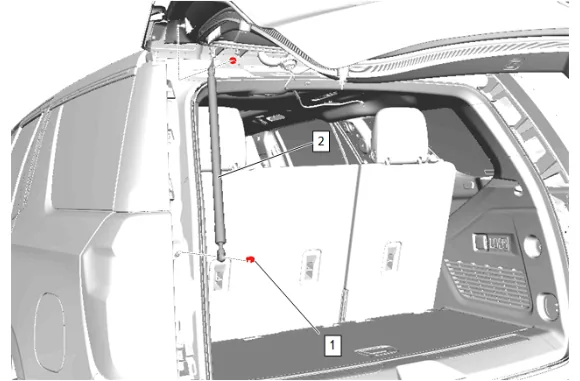

  1. Remove the bottom metal clip (1) at the end of the liftgate strut (2).
  2. Liftgate Strut (2) » Reposition
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 3
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 3

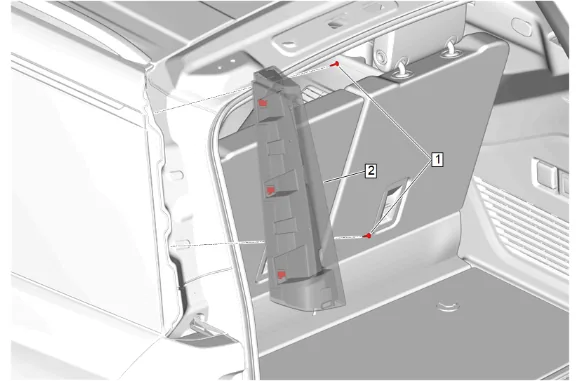

  1. Back Body Opening Side Molding Bolt (1) » Remove
  2. Release the 4 back body opening side gutter retainers and remove the back body opening side gutter (2).
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 4
Back Body Opening Side Molding Replacement (Manual Liftgate) — figure 4

  1. Back Body Opening Side Molding Bolt (1) » Remove [2x]

  2. Using a flat-bladed plastic trim tool, release the retaining clips.

  3. Back Body Opening Side Molding (2) » Remove Installation Procedure

  4. Back Body Opening Side Molding (2) » Install

  1. Back Body Opening Side Molding Bolt (1) » Install and tighten [2x] — Fastener Specifications

  1. Back Body Opening Side Gutter (2) » Install

  2. Back Body Opening Side Molding Bolt (1) » Install and tighten — Fastener Specifications

  3. Liftgate Strut (2) » Install

  4. Install the bottom metal clip (1) at the end of the liftgate strut (2).

  1. Back Body Opening Side Center Gutter (1) » Install
  2. Close the liftgate.
