Front Seat Cushion Cover Retainer Replacement

Removal Procedure

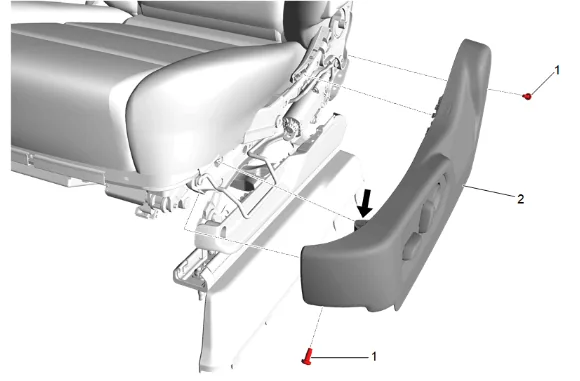

Front Seat Cushion Cover Retainer Replacement — figure 1

1. Reposition the seat as necessary to access the bolts.
2. Front Seat Bolt (1) » Remove [2x]
3. Squeeze the front seat cushion outer finish cover retainer to release it from the seat frame.
4. Disconnect the electrical connectors.
5. Lift the front seat cushion outer finish cover (2) to release it from the front seat cushion cover wire retainer.
6. Front Seat Cushion Outer Finish Cover (2) » Remove

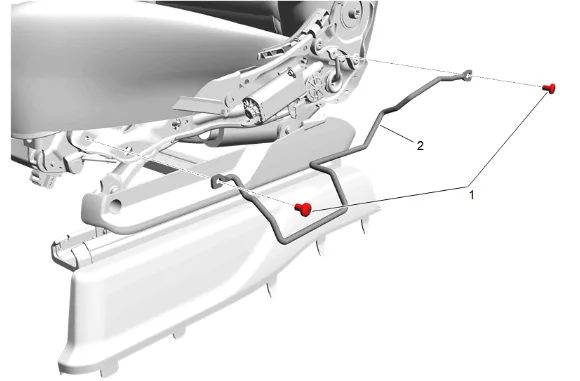

Front Seat Cushion Cover Retainer Replacement — figure 2

7. Front Seat Adjuster Finish Cover Bolt (1) » Remove [2x]

8. Front Seat Cushion Cover Retainer (2) » Remove Installation Procedure

9. Front Seat Cushion Cover Retainer (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Adjuster Finish Cover Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connectors.

4. Front Seat Cushion Outer Finish Cover (2) » Install

5. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Return the seat to its original position.
