Case Extension Disassemble (4WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4742098 Single Use Fasteners and Components Propeller Shaft Transmission Flange Fluid Seal Special Tools DT-45000 Seal Remover Equivalent regional tools: Special Tools

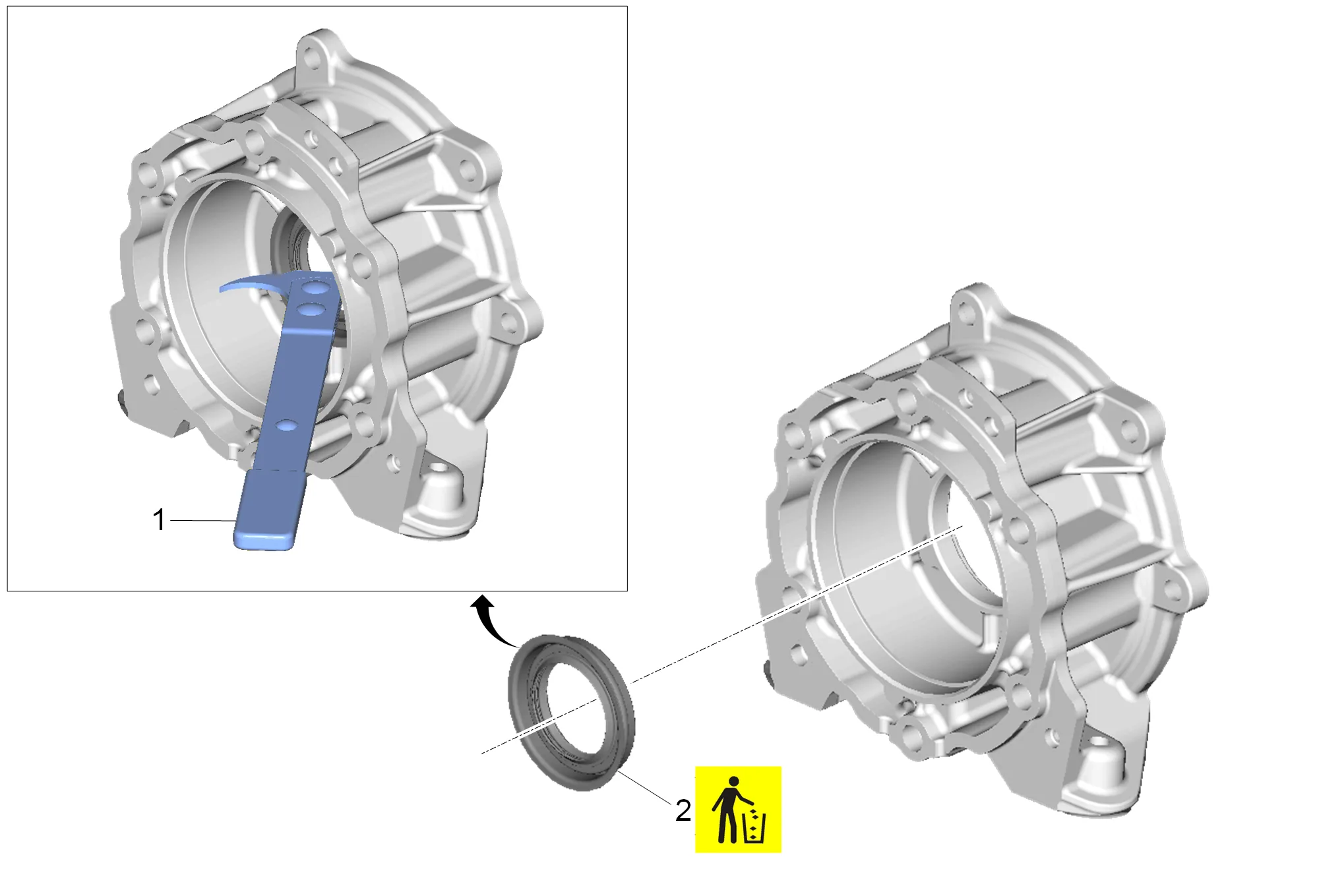

Case Extension Disassemble (4WD) — figure 1

1. Use DT-45000 Seal Remover (1) to remove the Propeller Shaft Transmission Flange Fluid Seal (2).
2. Propeller Shaft Transmission Flange Fluid Seal (2) » Remove and DISCARD
