Engine Control Module Replacement (1)

Engine Control Module Replacement Removal Procedure

Warning

Refer to Safety Glasses Warning.

Caution

Always turn the ignition off when installing or removing the ECM connectors in order to prevent damage to the components.

Caution

Turn the ignition OFF when installing or removing the control module connectors and disconnecting or reconnecting the power to the control module (battery cable, powertrain control module (PCM)/engine control module (ECM)/transaxle control module (TCM) pigtail, control module fuse, jumper cables, etc.) in order to prevent internal control module damage. Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables, or when charging the vehicle battery. In order to prevent any possible electrostatic discharge damage to the control module, do no touch the connector pins or the soldered components on the circuit board. Remove any debris from around the control module connector surfaces before servicing the control module. Inspect the control module connector gaskets when diagnosing or replacing the control module. Ensure that the gaskets are installed correctly. The gaskets prevent contaminant intrusion into the control module. The replacement control module must be programmed.

1. Before removing the engine control module (ECM), record the oil life percentage remaining.
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

Engine Control Module Replacement (1) — figure 1

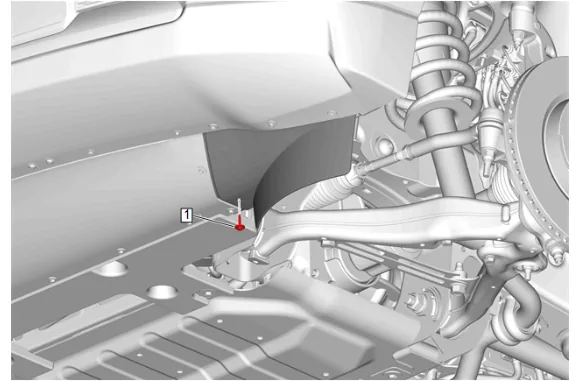

4. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

Engine Control Module Replacement (1) — figure 2

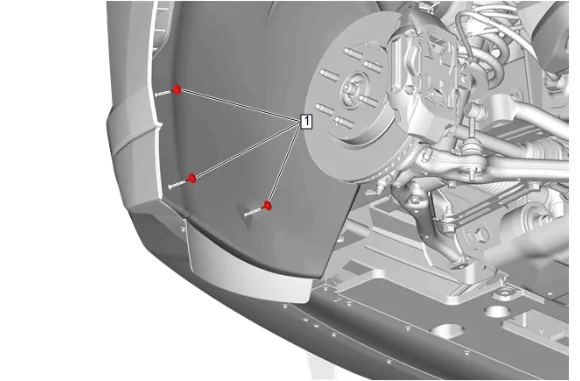

5. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Engine Control Module Replacement (1) — figure 3

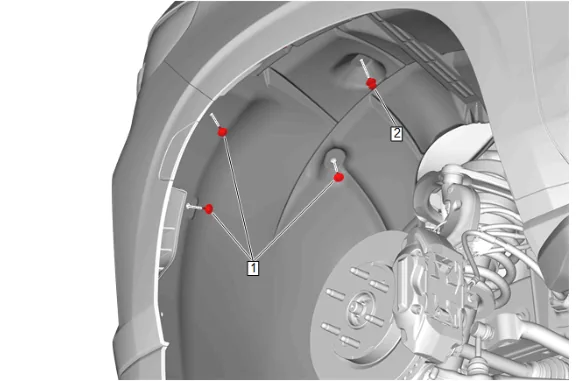

6. Front Wheelhouse Liner Bolt (1) » Remove [3x]
7. Front Wheelhouse Liner Retainer (2) » Remove

Engine Control Module Replacement (1) — figure 4

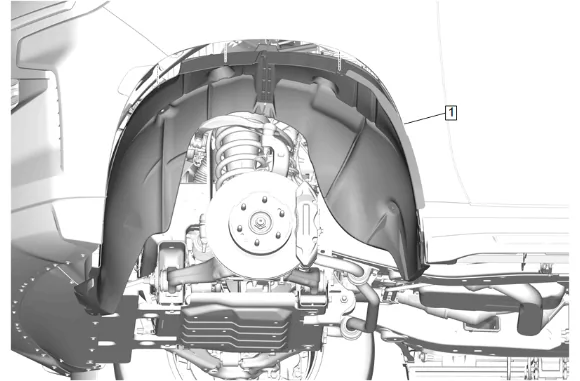

8. Front Wheelhouse Liner (1) » Reposition

Engine Control Module Replacement (1) — figure 5

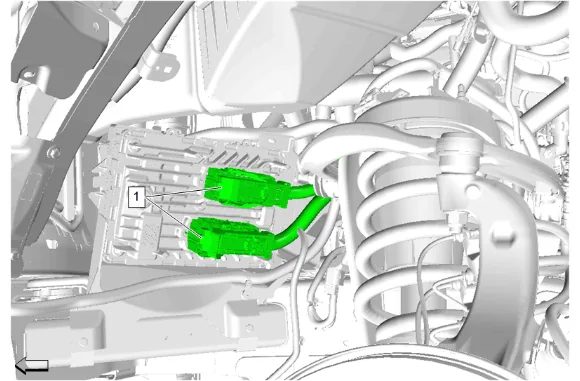

9. Disconnect the 2 electrical connectors (1) from the engine control module.

Engine Control Module Replacement (1) — figure 6

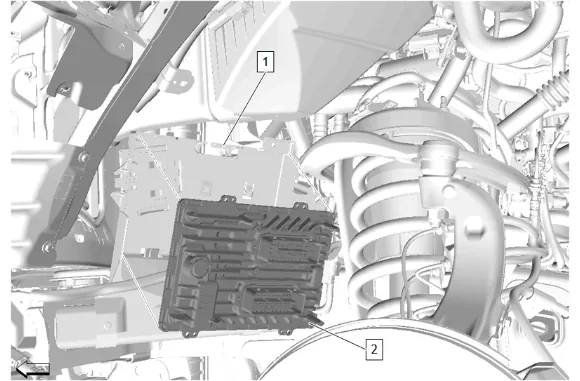

10. Use a suitable tool to pry back the locking tabs (1) securing the engine control module to the control module bracket.

11. Engine Control Module (2) » Remove Installation Procedure

12. Engine Control Module (2) » Install

13. Connect the 2 electrical connectors (1) to the engine control module.

14. Front Wheelhouse Liner (1) » Install

15. Front Wheelhouse Liner Retainer (2) » Install

16. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

17. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

18. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

19. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

20. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

21. It is necessary to reprogram the module. Control Module References

22. It is necessary to perform the turbocharger/supercharger boost control initial position learn. Turbocharger/Supercharger Boost Control Initial Position Learn

23. Use the scan tool to reset the engine oil life remaining back to the original percentage recorded.
