Hood Front Bumper Bracket Replacement (Chevy)

Materials Structure Adhesive Metal Panel Bonding Structure Rivet [SR1 2x] Fastener Specifications Structure Rivet [SR2 2x] Fastener Specifications Removal Procedure

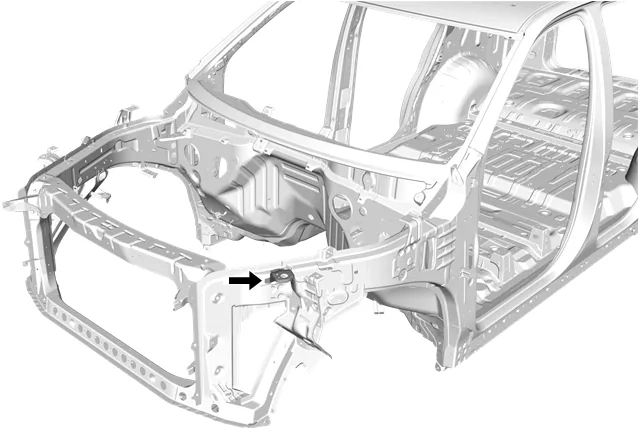

Hood Front Bumper Bracket Replacement (Chevy) — figure 1

Warning

Refer to Approved Equipment for Collision Repair Warning.

Warning

Refer to Collision Sectioning Warning.

Warning

Refer to Glass and Sheet Metal Handling Warning.

Note

Left shown, right similar.

Note

The hood bumper bracket is mild steel. Mild Steel

Note

Refer to Collision Repair Specifications

Note

Not all factory spot welds can be reinstalled due to interference with internal structure parts. In place of spot welds, structural adhesive will be used.

1. Disable the SIR system. SIR Disabling and Enabling.
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Remove all related panels and components.
4. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair

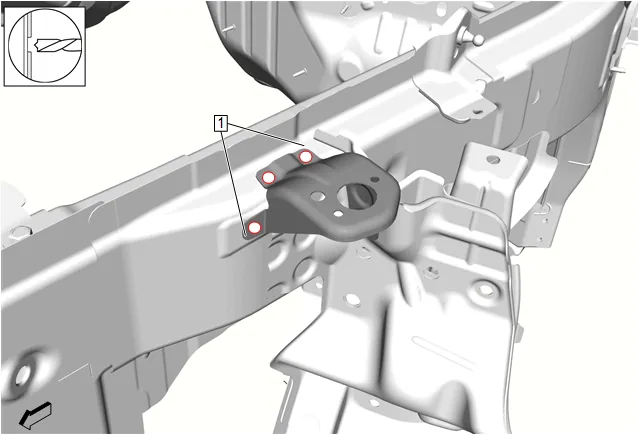

Hood Front Bumper Bracket Replacement (Chevy) — figure 2

Note

Do not damage or cut attaching panels and reinforcements

5. Remove spot welds (1). [3x]

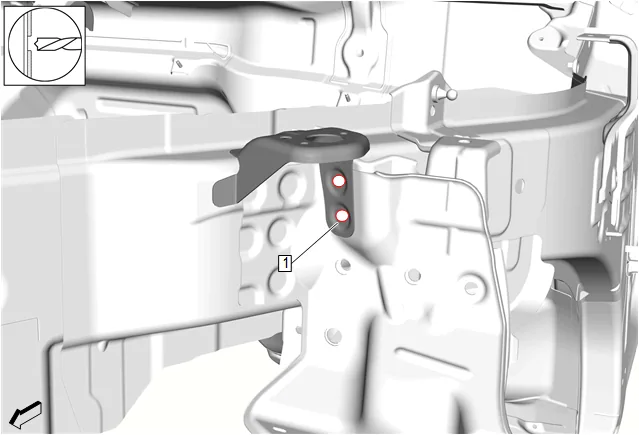

Hood Front Bumper Bracket Replacement (Chevy) — figure 3

Note

Do not damage or cut attaching panels and reinforcements.

6. Remove spot welds (1). [2x]

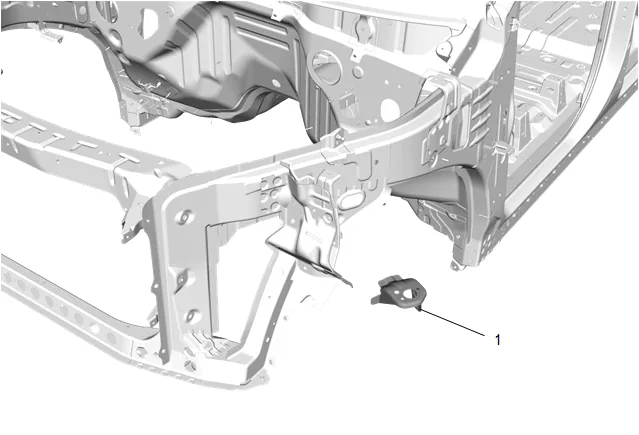

Hood Front Bumper Bracket Replacement (Chevy) — figure 4

7. Remove hood bumper bracket (1) from the vehicle. Installation Procedure

Note

Prepare hood bumper bracket before installation

1. Prepare hood bumper bracket per installation requirements.

Note

Temporarily install the hood bumper bracket for proper fit.

2. Position hood bumper bracket (1) to vehicle using 3-dimensional measuring equipment.

Hood Front Bumper Bracket Replacement (Chevy) — figure 5

Note

Use 6.7 mm (17/64”) holes for rivet installation.

3. Drill 6.7 mm (17/64”) hole (1) through hood bumper bracket for rivet installation. [2x]

Hood Front Bumper Bracket Replacement (Chevy) — figure 6

Note

Use 6.7 mm (17/64”) holes for rivet installation.

4. Drill 6.7 mm (17/64”) hole (1) through hood bumper bracket for rivet installation. [2x]

5. Remove the hood bumper bracket (1) from the vehicle.

Hood Front Bumper Bracket Replacement (Chevy) — figure 7

Note

Only remove E-coat where adhesive will be applied.

6. Clean and prepare hood bumper bracket and vehicle for adhesive according to adhesive manufacturer’s recommendations. Metal Panel Bonding

7. Apply structural adhesive (1) on the mating surfaces of hood bumper bracket and vehicle according to adhesive manufacturer’s recommendations. Metal Panel Bonding

8. Install hood bumper bracket (1) to vehicle and clamp into place.

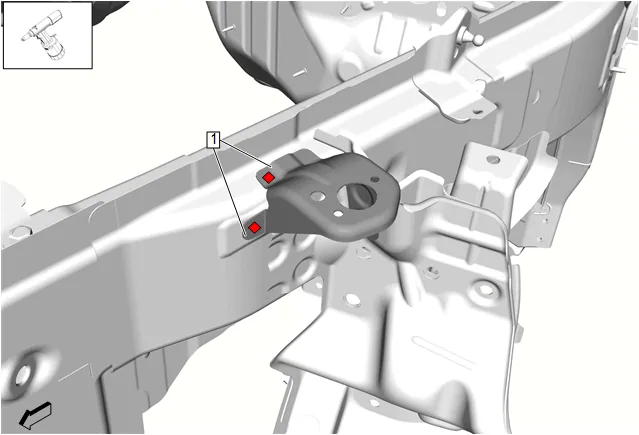

Hood Front Bumper Bracket Replacement (Chevy) — figure 8

Note

Not all factory spot welds can be reinstalled due to interference with internal structure parts. In place of spot welds, structural adhesive will be used.

9. Install rivets (1) in hood bumper bracket. [SR1 2x] Fastener Specifications

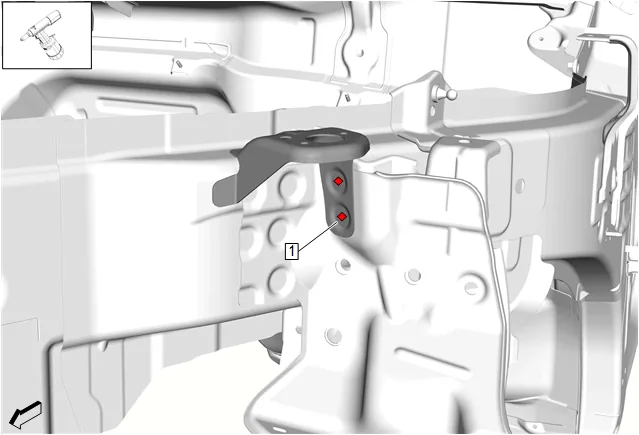

Hood Front Bumper Bracket Replacement (Chevy) — figure 9

10. Install rivets (1) in hood bumper bracket. [SR2 2x] Fastener Specifications
11. Apply the sealers and anti-corrosion materials to the repair area as necessary. Anti-Corrosion Treatment and Repair

Note

Before refinishing, refer to Anti-Corrosion Treatment and Repair

12. Paint the repaired area. Basecoat/Clearcoat Paint Systems.
13. Install all related panels and components.
14. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
15. Enable the SIR System. SIR Disabling and Enabling.
