Sunroof Window Replacement

Removal Procedure

Warning

Refer to Glass and Sheet Metal Handling Warning.

1. Open the sunroof sunshade.

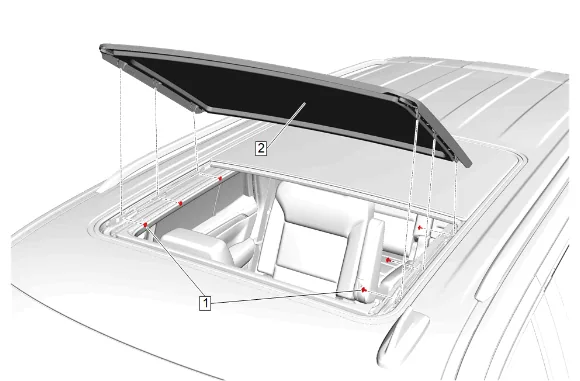

Sunroof Window Replacement — figure 1

2. Reposition the sunroof opening trim finish lace to gain access to the bolts.

3. Sunroof Window Bolt (1) » Remove [6x]

4. Sunroof Window (2) » Remove Installation Procedure

5. Sunroof Window (2) » Install

6. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 2.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 2.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 2.3. Remove loose debris from internal and external threads using compressed air. 2.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

7. Sunroof Window Bolt (1) » Install and hand tighten [6x]

8. Ensure the proper sunroof window height and opening fit. Sunroof Window Height and Opening Fit Adjustment

9. Install the sunroof opening trim finish lace.

10. Close the sunroof sunshade.
