Windshield Defroster Outlet Duct Replacement

Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

Windshield Defroster Outlet Duct Replacement — figure 1

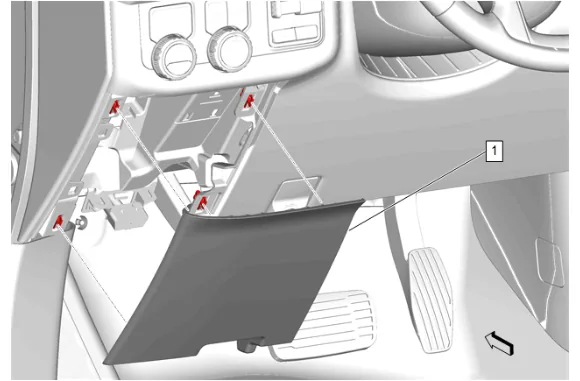

2. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

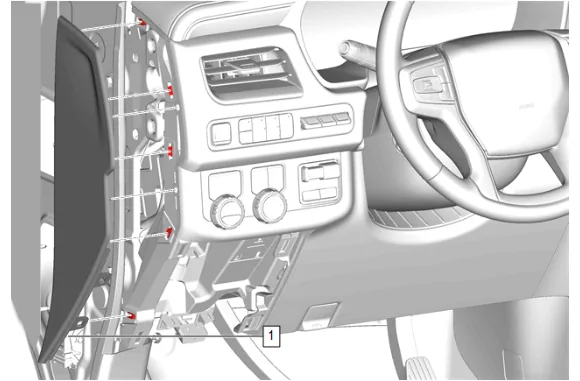

Windshield Defroster Outlet Duct Replacement — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.

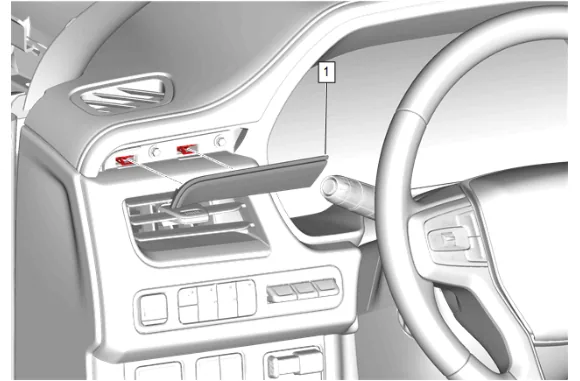

4. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Trim Plate Applique (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 4

7. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
8. Instrument Panel Trim Pad (2) » Remove
9. Disconnect the electrical connectors.

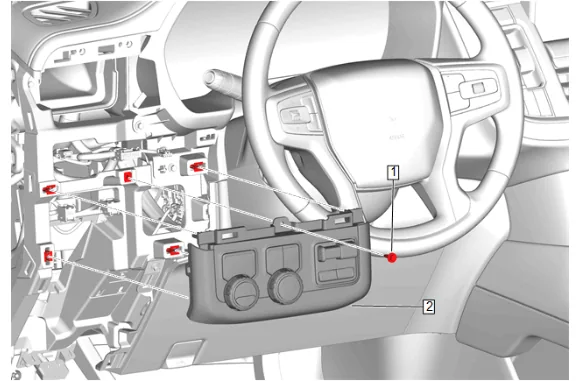

Windshield Defroster Outlet Duct Replacement — figure 5

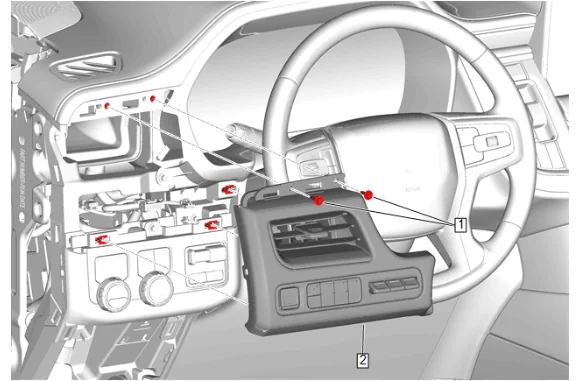

10. Instrument Panel Switch Trim Plate Bolt (1) » Remove
11. Instrument Panel Switch Trim Plate (2) » Remove
12. Disconnect the electrical connectors.

Windshield Defroster Outlet Duct Replacement — figure 6

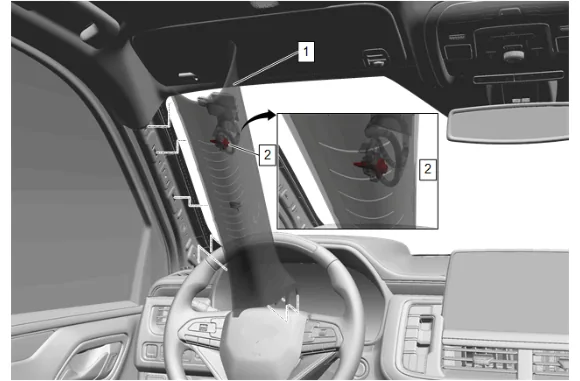

13. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
14. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
15. Windshield Garnish Molding Bolt (2) » Remove
16. Windshield Garnish Molding (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 7

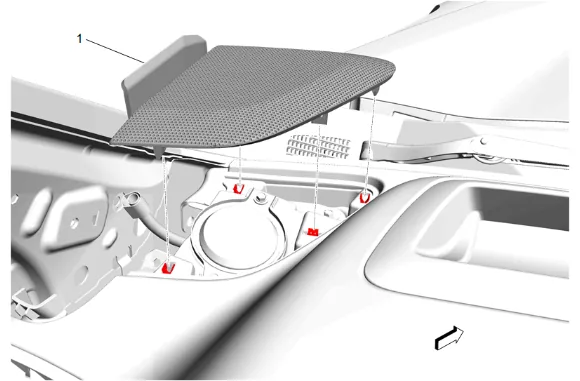

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Radio Front Speaker Grille (1) » Remove

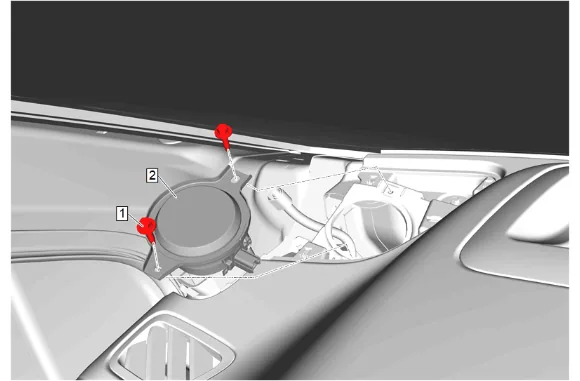

Windshield Defroster Outlet Duct Replacement — figure 8

19. Radio Front Speaker Bolt (1) » Remove [2x]
20. Radio Front Speaker (2) » Remove
21. Disconnect the electrical connector.

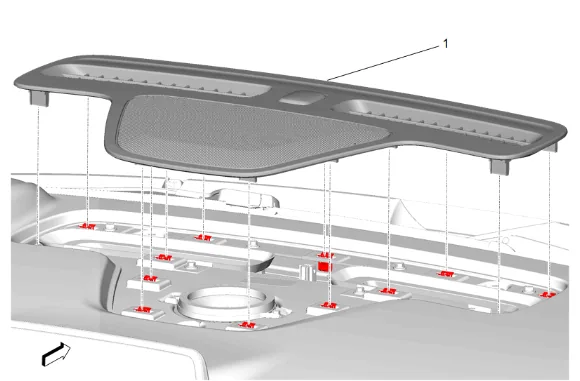

Windshield Defroster Outlet Duct Replacement — figure 9

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Instrument Panel Extension (1) » Remove
24. Disconnect the electrical connector.

Windshield Defroster Outlet Duct Replacement — figure 10

25. Radio Front Center Speaker Bolt (1) » Remove [2x]
26. Radio Front Center Speaker (2) » Remove
27. Disconnect the electrical connector.

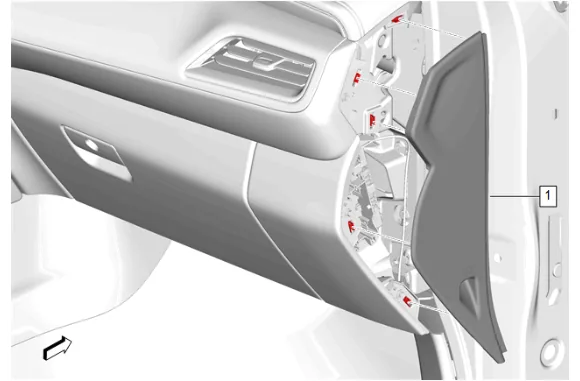

Windshield Defroster Outlet Duct Replacement — figure 11

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 12

30. Using a flat-bladed plastic trim tool, release the retaining clips.

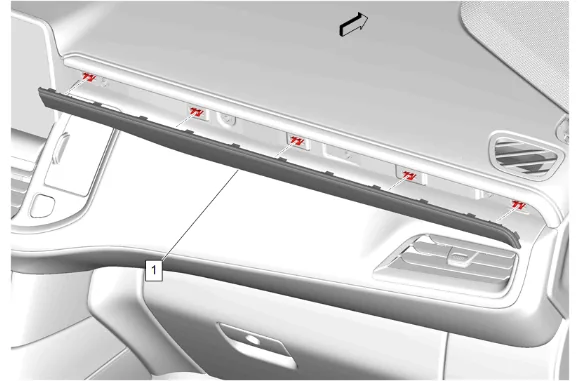

31. Instrument Panel Trim Plate Applique (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 13

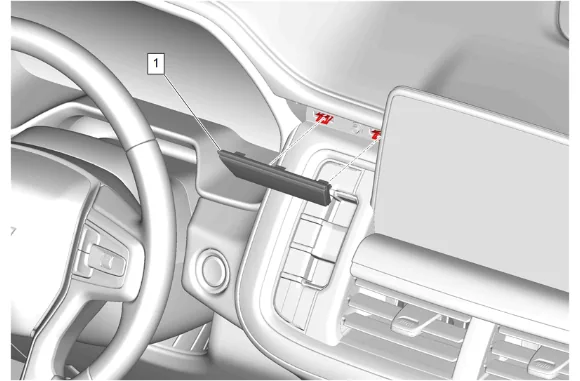

32. Using a flat-bladed plastic trim tool, release the retaining clips.
33. Instrument Panel Center Trim Plate Applique (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 14

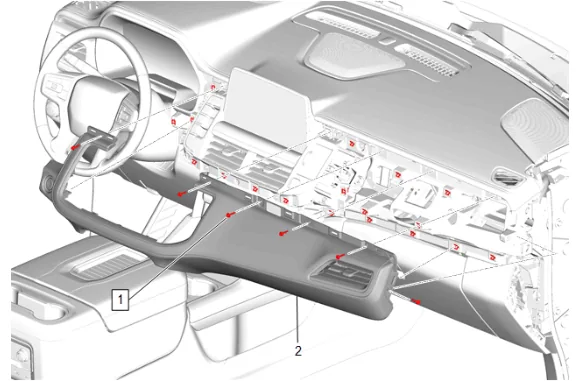

34. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
35. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

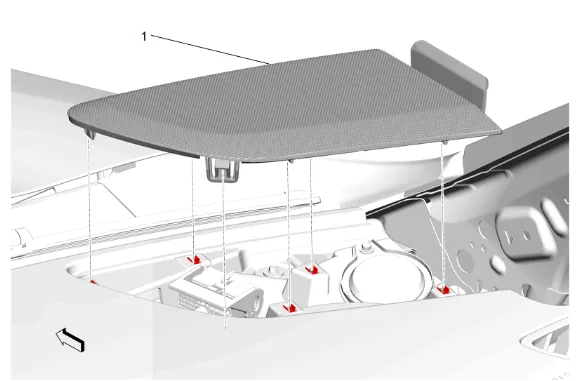

36. Instrument Panel Trim Pad (2) » Remove
37. Disconnect the electrical connector.

Windshield Defroster Outlet Duct Replacement — figure 15

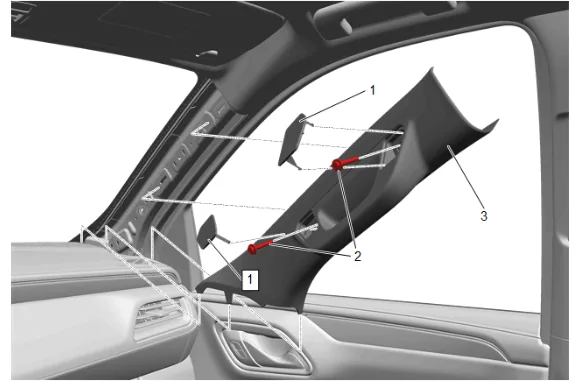

38. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
39. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
40. Windshield Garnish Molding (3) » Remove

Windshield Defroster Outlet Duct Replacement — figure 16

41. Using a flat-bladed plastic trim tool, release the retaining clips.
42. Radio Front Speaker Grille (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 17

43. Radio Front Speaker Bolt (1) » Remove [2x]
44. Radio Front Speaker (2) » Remove
45. Disconnect the electrical connector.

Windshield Defroster Outlet Duct Replacement — figure 18

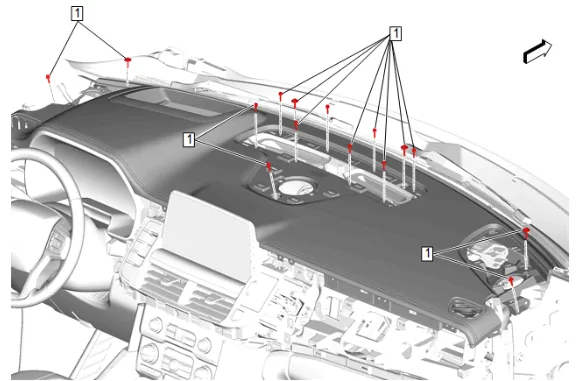

46. Instrument Panel Upper Trim Panel Bolt (1) » Remove [15x]
47. Disconnect the electrical connector.

Windshield Defroster Outlet Duct Replacement — figure 19

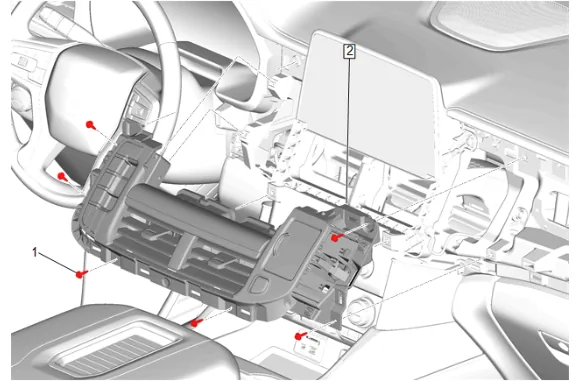

48. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
49. Instrument Panel Transmission Shift Opening Cover (2) » Remove
50. Disconnect the electrical connectors.

Windshield Defroster Outlet Duct Replacement — figure 20

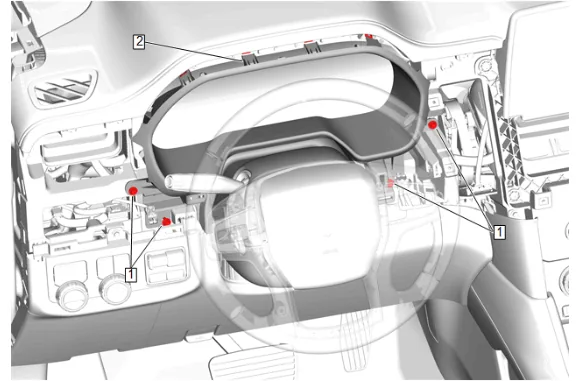

51. Instrument Panel Cluster Trim Plate Bolt (1) » Loosen [4x]
52. Using a flat-bladed plastic trim tool, release the retaining clips.
53. Instrument Panel Cluster Trim Plate (2) » Loosen

Windshield Defroster Outlet Duct Replacement — figure 21

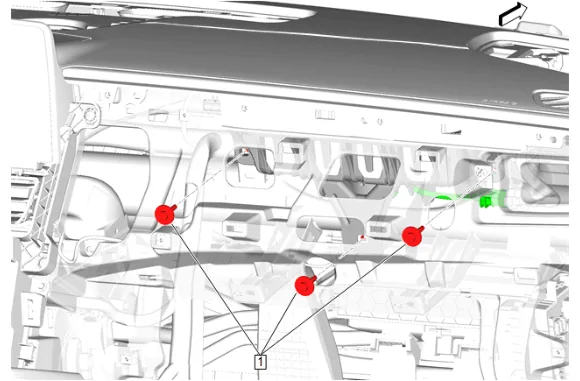

54. Instrument Panel Airbag Bolt (1) » Remove [3x]
55. Disconnect the electrical connector.

Windshield Defroster Outlet Duct Replacement — figure 22

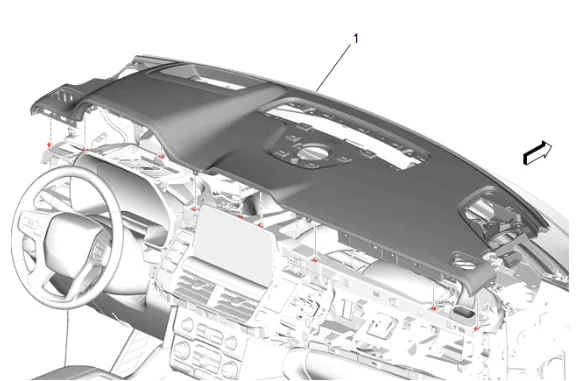

56. Instrument Panel Upper Trim Panel (1) » Remove
57. With the aid of an assistant remove the instrument panel upper trim panel (1) from the vehicle.

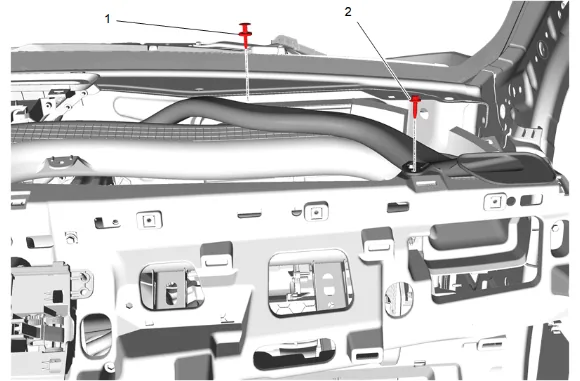

Windshield Defroster Outlet Duct Replacement — figure 23

58. Side Window Defogger Outlet Duct Retainer (1) » Remove
59. Side Window Defogger Outlet Duct Bolt (2) » Remove

Windshield Defroster Outlet Duct Replacement — figure 24

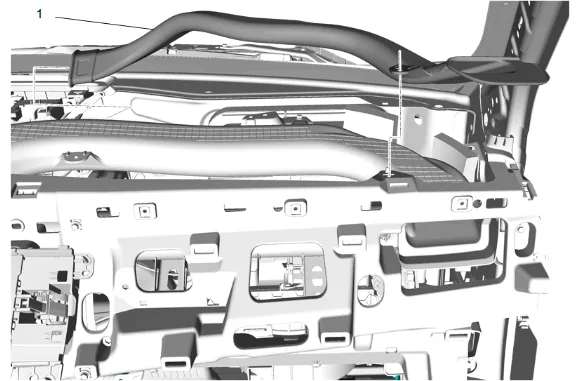

60. Side Window Defogger Outlet Duct - Right Side (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 25

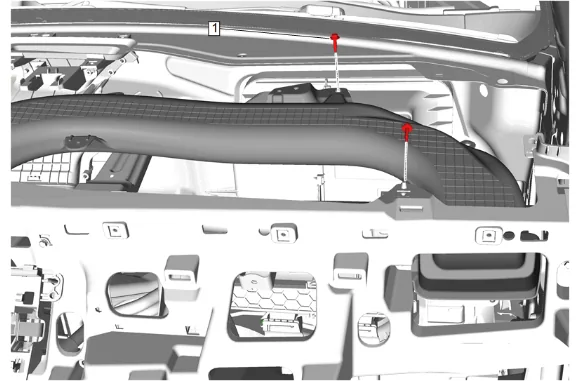

61. Instrument Panel Outer Air Outlet Bolt (1) » Remove [2x]
62. Remove the wiring harness retainers form the right instrument panel outer air outlet duct.

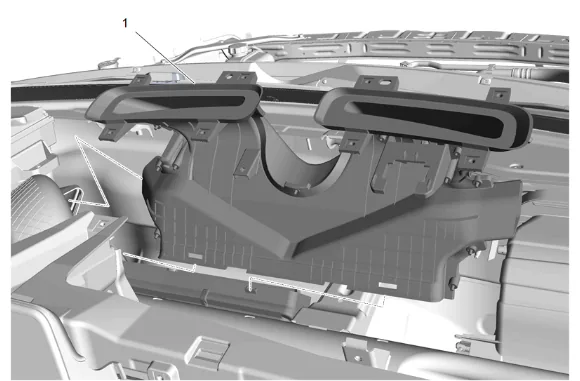

Windshield Defroster Outlet Duct Replacement — figure 26

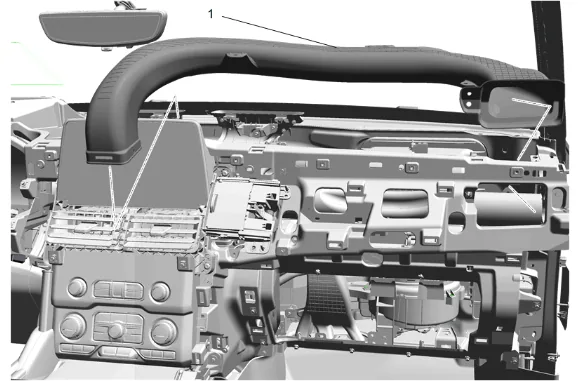

63. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 27

64. Release the retaining tabs.
65. Disconnect the electrical connector.

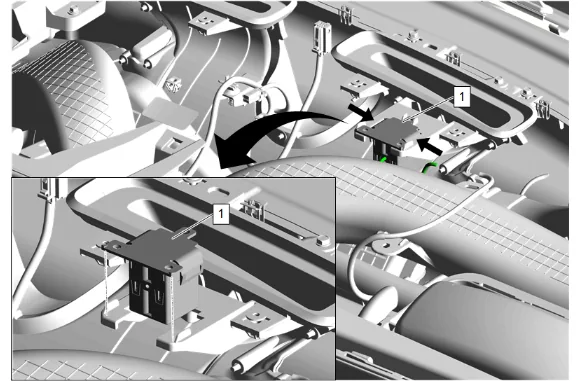

66. Auxiliary Wireless Communication Interface Antenna (1) » Remove

Windshield Defroster Outlet Duct Replacement — figure 28

67. Pull the windshield defroster outlet duct (1) towards the rear of the car while moving up and to the right to disconnect the left side window defogger outlet duct, to remove the duct. Installation Procedure

68. Install the windshield defroster outlet duct (1) while connecting the left side window defogger outlet duct.

69. Connect the electrical connector.

70. Auxiliary Wireless Communication Interface Antenna (1) » Install

71. Secure the retaining tabs.

72. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Install

Caution

Refer to Fastener Caution.

6. Instrument Panel Outer Air Outlet Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Install the wiring harness retainers onto the right instrument panel outer air outlet duct.

8. Side Window Defogger Outlet Duct - Right Side (1) » Install

9. Side Window Defogger Outlet Duct Bolt (2) » Install and tighten — Fastener Specifications

10. Side Window Defogger Outlet Duct Retainer (1) » Install

11. With the aid of an assistant install the instrument panel upper trim panel (1) into the vehicle.

12. Instrument Panel Upper Trim Panel (1) » Install

13. Connect the electrical connector.

14. Connect the electrical connector.

15. Instrument Panel Airbag Bolt (1) » Install and tighten [3x] — Fastener Specifications

16. Instrument Panel Cluster Trim Plate (2) » Install

17. Instrument Panel Cluster Trim Plate Bolt (1) » Tighten [4x] — Fastener Specifications

18. Connect the electrical connectors.

19. Instrument Panel Transmission Shift Opening Cover (2) » Install

20. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

21. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [15x] — Fastener Specifications

22. Connect the electrical connector.

23. Radio Front Speaker (2) » Install

24. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

25. Radio Front Speaker Grille (1) » Install

26. Windshield Garnish Molding (3) » Install

27. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

28. Windshield Pillar Assist Handle Cover (1) » Install [2x]

29. Connect the electrical connector.

30. Instrument Panel Trim Pad (2) » Install

31. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

32. Instrument Panel Center Trim Plate Applique (1) » Install

33. Instrument Panel Trim Plate Applique (1) » Install

34. Instrument Panel Fuse Block Access Hole Cover (1) » Install

35. Connect the electrical connector.

36. Radio Front Center Speaker (2) » Install

37. Radio Front Center Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

38. Connect the electrical connector.

39. Instrument Panel Extension (1) » Install

40. Connect the electrical connector.

41. Radio Front Speaker (2) » Install

42. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

43. Radio Front Speaker Grille (1) » Install

44. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

45. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding  (1) into place.

46. Windshield Garnish Molding (1) » Install

47. Connect the electrical connectors.

48. Instrument Panel Switch Trim Plate (2) » Install

49. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

50. Connect the electrical connectors.

51. Instrument Panel Trim Pad (2) » Install

52. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

53. Instrument Panel Trim Plate Applique (1) » Install

54. Instrument Panel Fuse Block Access Hole Cover (1) » Install

55. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

56. Enable the SIR System. SIR Disabling and Enabling
